GYTY53 Outdoor Cable

Description

● GYTY53 Stranded Loose Tube Metallic Strength Member Armored Outdoor Cable:

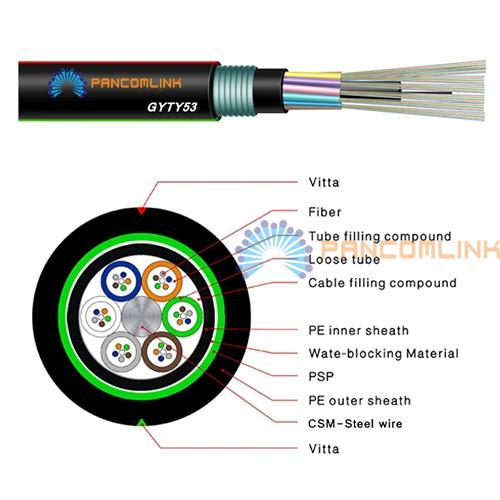

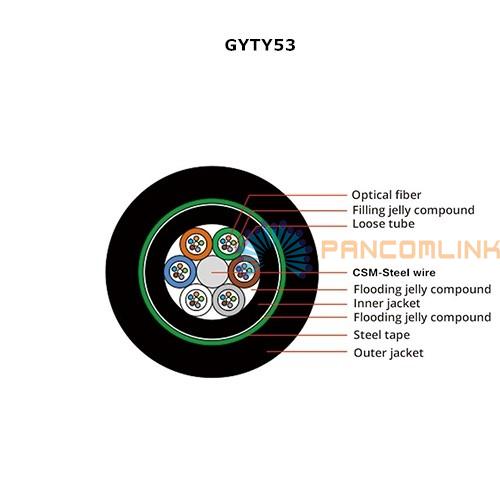

The fibers, 200/ 250μm, are positioned in loose tubes made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

● Features:

►Good mechanical and temperature performance;

►High strength loose tube that is hydrolysis resistant

►Special tube filling compound ensure a critical protection of fiber;

►Specially designed compact structure is good at preventing loose tubes from shrinking;

►PE sheath protects cable from ultraviolet radiation;

►Good crush tolerance,applies for duct and directly buried distribution;

►To assure the water-proof function by:
·Single steel wire as central strength member
·Special tube filling compound ensure a critical protection of fiber
·PSP enhances the ability to avoid moisture
·Fully filled in the cable
·Good water-blocking tape prevent the sinking vertically

►Complies with Standard YD/T 901-2009 as well as IEC 60794-1.

● Application:

►Aerial/conduit;

►Connecting communication equipment;

►Suitable for long-distance communication and indoor communication.

● Optical Characteristics:

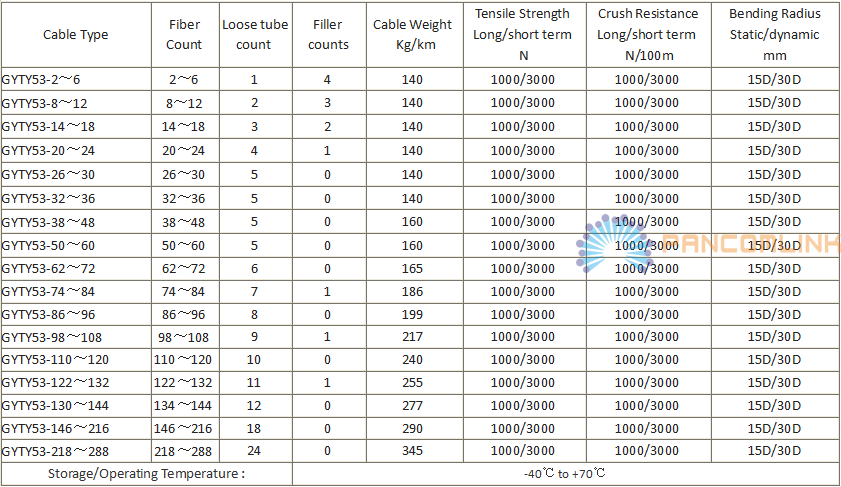

● Technical Parameters:
