Description
● GYFXY Unitube Non-metallic Non-armored Outdoor Cable:

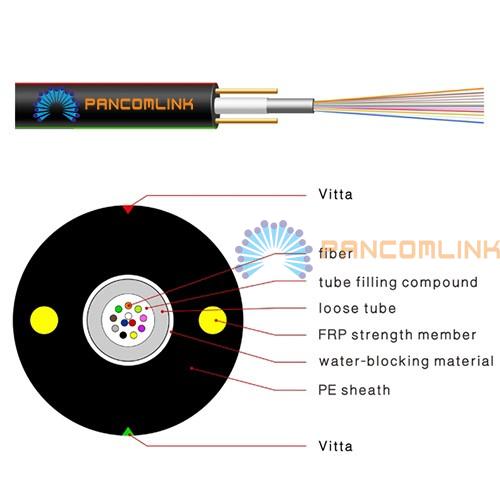

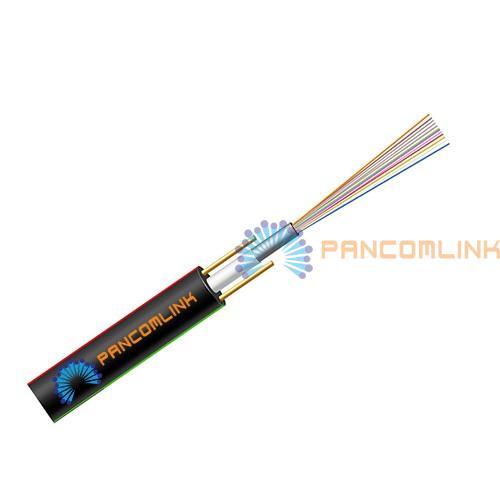

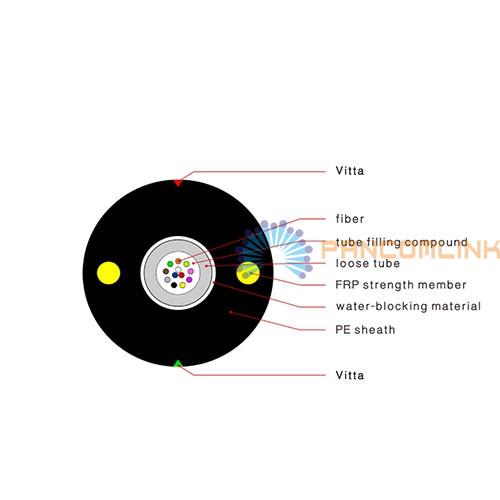

The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tube is filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene (PE) sheath.
● Features:
►Good mechanical and temperature performance;
►Non-metallic structure helps to avoid Radio frequency interference and Electromagnetic interference, which is better for distribution in a minefield;
►High strength loose tube that is hydrolysis resistant;
►Special tube filling compound ensure a critical protection of fiber;
►Crush resistance and flexibility;
►PE sheath protects cable from ultraviolet radiation;
►Two parallel FRP ensure tensile strength;
►Small diameter, light weight and friendly installation;
►Long delivery length;
►GYFXY cable complies with Standard YD/T 769-2010.
● Application:
►Aerial/conduit;
►Connecting communication equipment;
►Indoor shaft, buildings, pipe, buried.
● Optical Characteristics:
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300nm |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelengthλcc |
|
≤1260nm |
≤1480nm |
|
|
● Technical Parameters:
|
Cable Type |
Fiber Count |
|
|
Tensile Strength N |
|
|
|
GYFXY-2～12 |
2～12 |
9.0 |
70 |
500/350 |
300/1000 |
15D/30D |
|
GYFXY-2～12 |
2～12 |
10.2 |
90 |
600/350 |
400/1000 |
15D/30D |
|
Storage/Operating Temperature : |
-40℃ to +70℃ |
|||||
