Description
● MT Short Patch Cord

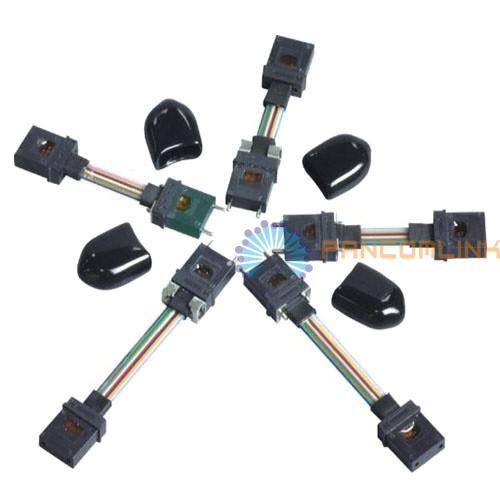

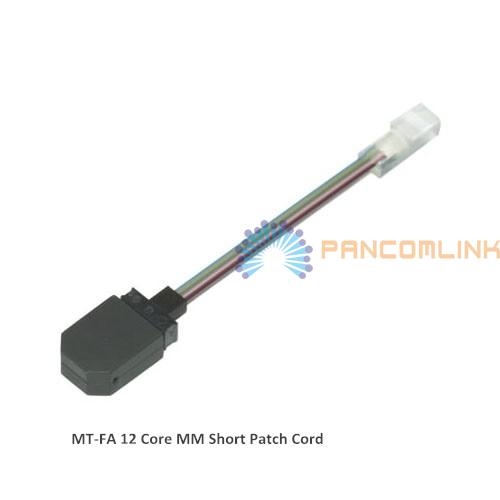

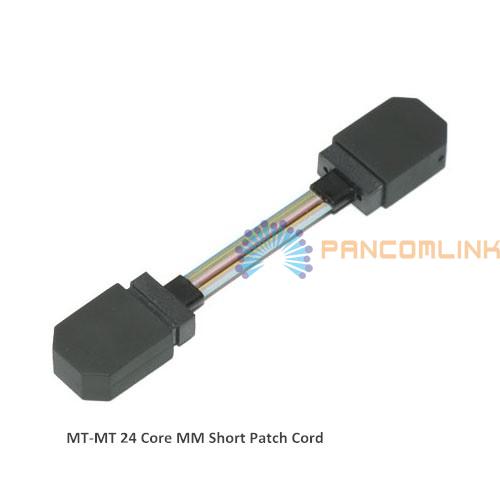

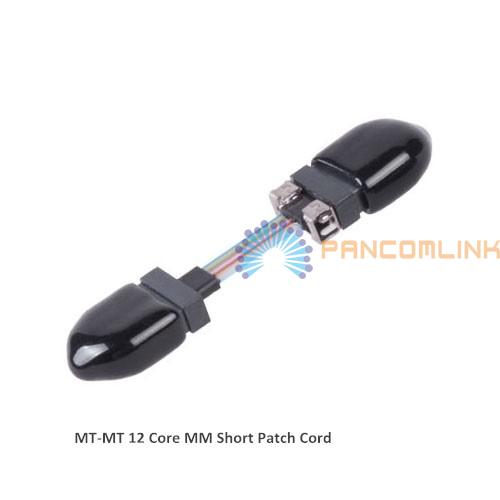

MT short patch cords are mainly used for a parallel optical technology module (QSFP), which connects the internal optical lens and external port to meet the signal transmission of the optical module. There are two types of MT-MT and MT-FA optional. PancomLink can provide all kinds of MT short patch cord products. The transmission mode, fiber type, and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization, and is widely used in optical modules, test equipment, medical equipment and other scenarios.
● Features:
► Low insertion loss;
► High repeatability and high stability;
► High precision and customizable;
► Meets GR468, GR1435 and RoHS standards.
● Application:
►Optical module;
►Test equipment;
►Medical equipment.
● Specification:
|
Item |
Elite Performance |
Standard Performance |
||
|
Insertion Loss |
SM |
MM |
SM |
MM |
|
≤0.35dB |
≤0.5dB |
|||
|
Durability |
500 times |
|||
|
Operating Temperature |
-45℃-- +85℃ |
|||
|
Fiber Type |
OS2/OM1/OM2/OM3/OM4 |
|||
