Description

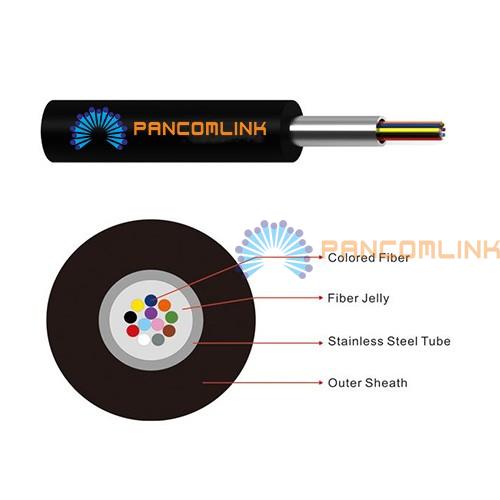

● GYMXY Miniature Stainless Steel Tube Cable:

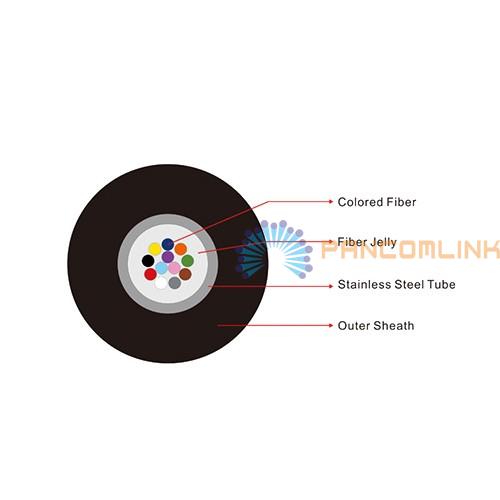

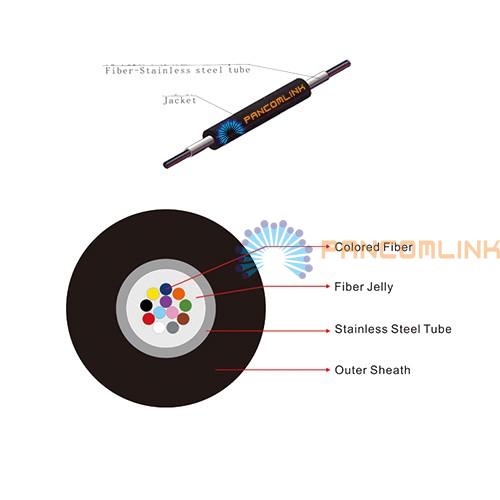

Mini F-SST contains mini F-SST as optical fiber unit, which promotes maximum core to 24. According to different applications, it is jacketed by LSZH, PE or PA. Mini F-SST cable has small size and low weight. With perfect mechanical performance and wide temperature and wide temperature range, it can withstand the strong pressure. And is suitable for indoor cabling, pipelines and ground slot laying.
● Features:
►Small size and low weight;
►Good mechanical performance, withstanding the tensile force and force and super pressure;
►Waterproof, moisture-proof, anti-rodents, no rusty;
►Resistance to acid, alkali, salt corrosion;
►Non-toxic, flame retardant, fire and explosion proof;
►Outstanding high and low temperature performances.
● Application:
►Overhead, pipe and under-ground laying;
►Temperature sensing cable, fire monitoring and security monitoring;
►Subway, tunnel laying;
►Emergency repair;
►Military application.
● Optical Characteristics:
|
|
G.652 |
G.655 |
50/125 μm |
62.5 / 125 μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB / km |
≤3.0dB / km |
|
@1300nm |
|
|
≤1.0dB / km |
≤1.0dB / km |
|
|
@1310nm |
≤0.36dB / km |
|
|
|
|
|
@1550nm |
≤0.22dB / km |
≤0.23dB / km |
|
|
|
|
Bandwidth |
@850 |
|
|
≥ 500MHZ · km |
≥ 500MHZ · km |
|
@1300 |
|
|
≥1000MHZ · km |
≥600MHZ · km |
|
|
Numerical aperture |
|
|
|
0.200 ± 0.015NA |
0.275 ± 0.015 NA |
|
Cable cut-off wavelength |
|
≤1260nm |
≤1480nm |
|
|
● Specification (Replacement: GYTA, GYTS, GYXTW, GYXTC8S, GYTC8S):
|
Fiber Count |
Structure Size |
Cable Weight |
Allowable Tensile Force (N) |
Allowing Crush Force (N) |
|
|
Pipe Diameter |
Cable Diameter |
Kg / km |
Long-term / Short-term |
Long-term / Short-term |
|
|
1 |
0.90 |
3.00 |
9.35 |
160/320 |
2000/4000 |
|
2 |
1.20 |
4.00 |
11.91 |
200/400 |
2500/5000 |
|
4 |
1.35 |
6.00 |
13.23 |
230/460 |
2000/4000 |
|
6 |
1.50 |
8.40 |
16.92 |
250/500 |
2000/4000 |
|
8 |
1.75 |
10.40 |
19.41 |
300/600 |
2000/4000 |
|
12 |
2.00 |
15.00 |
26.42 |
350/700 |
1000/2000 |
|
24 |
2.40 |
27.60 |
36.48 |
400/800 |
1000/2000 |
