Description

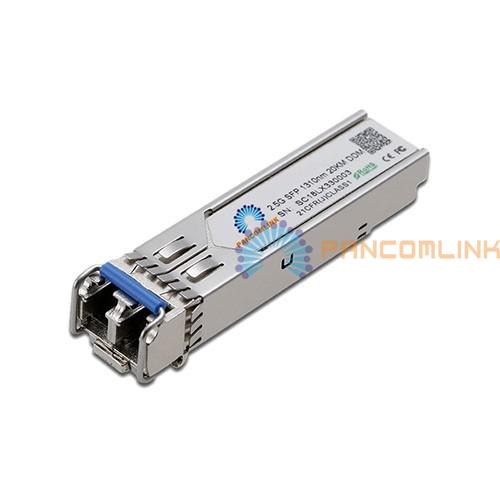

● 2.5G SFP Optic Transceiver:
2.5G SFP is a series of optical transceiver modules designed for use in 2x/1x Fibre Channel and Gigabit Ethernet . They are compliant with the SFP+ MSA. Digital diagnostics functions are available.
● Features:
● Supports data rates up to 2.67Gb/s
● Single +3.3V power supply
● Built-in digital diagnostic functions
● Transmission distance up to 300m on MMF OM3 and 120km over SMF
● Compliant with SFP+ MSA, IEEE Std 802.3, FC-PI 13.0, RoHS-6 compliant
● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
● Application:
● 2X/1X FC
● 1000Base Ethernet
● SDH/SONET
● Storage Area Network (SAN)
● Other Optical Link
● Order Information:
|
2.5Gbps SFP Transceiver |
|||||||||
|
Description |
Data Rate |
Wavelength |
Distance |
Fiber |
Tx Power (dBm) |
Rx Sens (dBm) |
Interface |
Temp. |
DDM |
|
2.5G-SFP-MM850-300m |
850nm |
300m |
MMF |
-5～-1 |
-11 |
Duplex LC |
0 to 70℃ |
Yes |
|
|
2.5G-SFP-SM1310-2Km |
2.5G |
1310nm |
2km |
SMF |
-10～13 |
-19 |
Duplex LC |
0 to 70℃ |
Yes |
|
2.5G-SFP-SM1310-10Km |
2.5G |
1310nm |
10km |
SMF |
-5～0 |
-15 |
Duplex LC |
0 to 70℃ |
Yes |
|
2.5G-SFP-SM1310-20Km |
2.5G |
1310nm |
20km |
SMF |
-4～0 |
-15 |
Duplex LC |
0 to 70℃ |
Yes |
|
2.5G-SFP-SM1310-40Km |
2.5G |
1310nm |
40km |
SMF |
0～3 |
-17 |
Duplex LC |
0 to 70℃ |
Yes |
|
2.5G-SFP-SM1550-80Km |
2.5G |
1550nm |
80km |
SMF |
0～5 |
-23 |
Duplex LC |
0 to 70℃ |
Yes |
|
2.5G-SFP-SM1550-100Km |
2.5G |
1550nm |
100km |
SMF |
>0 |
-29 |
Duplex LC |
0 to 70℃ |
Yes |
|
2.5G-SFP-SM1550-120Km |
2.5G |
1550nm |
120km |
SMF |
>1 |
-30 |
Duplex LC |
0 to 70℃ |
Yes |
