Description

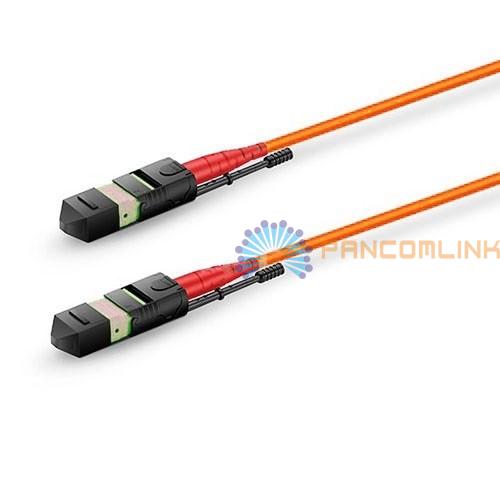

MTP®/MPO cables, a cost-effective alternative to time-consuming field termination, are designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With 0.35dB insertion loss, MTP®/MPO cables from PancomLink are applied mainly for 10G/40G/100G direct connection and high-density data center application.
v Applications
MTP/MPO cable is the high dense degree of optical fiber pre-connect system, which is generally used in three areas:

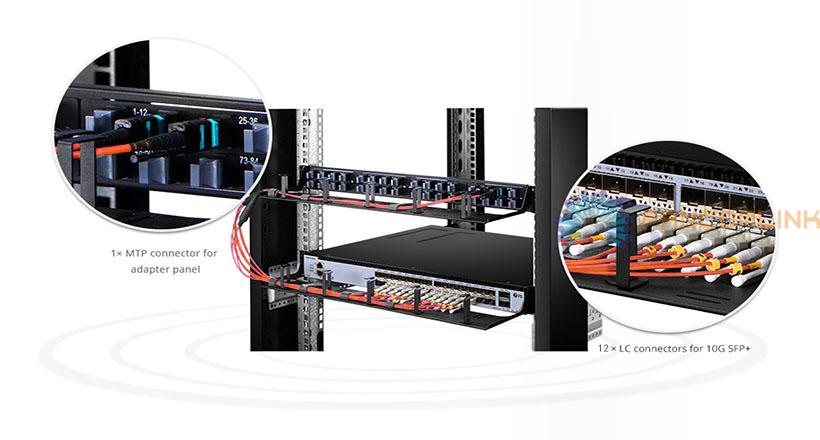

1. Data Center with High Dense Degree Environment
2. Fiber Optic Networks
3. Internal Connector Application in Fiber Equipment such as 40G/100G SFP and SFP+
v Features
1. Factory products with a competitive price
2. OEM/ODM production and fast delivery
3. Good exchangeability and durability

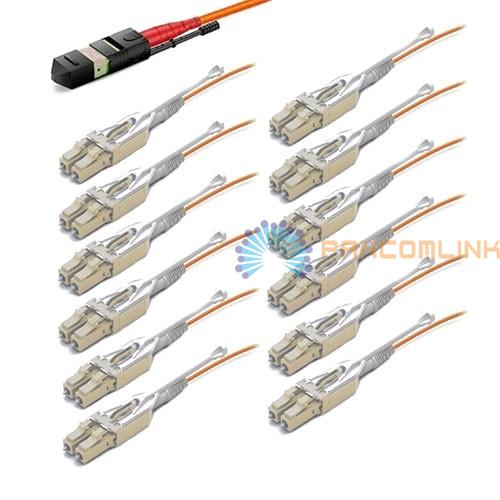

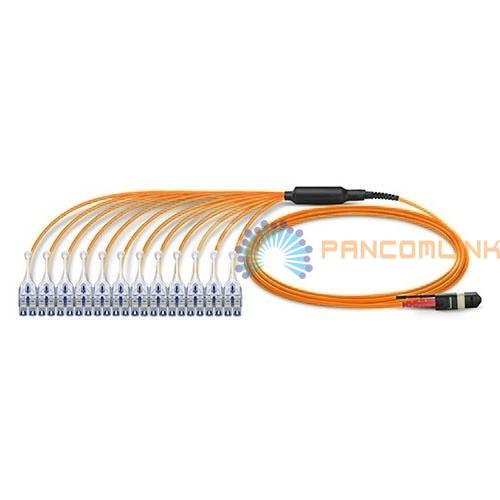

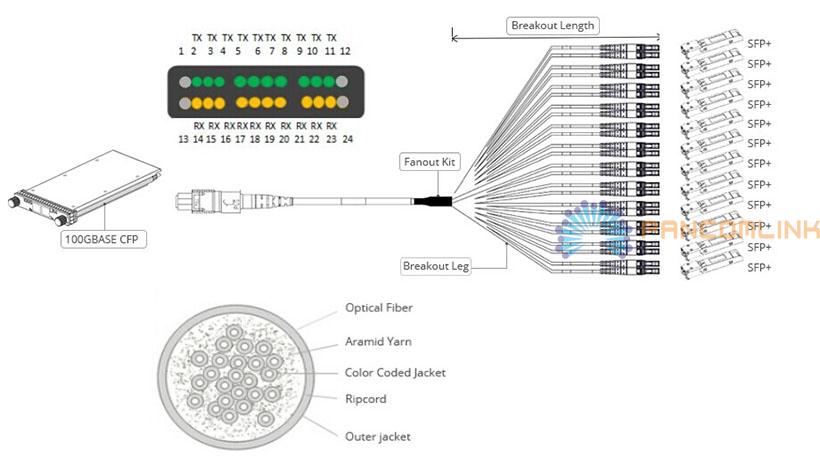

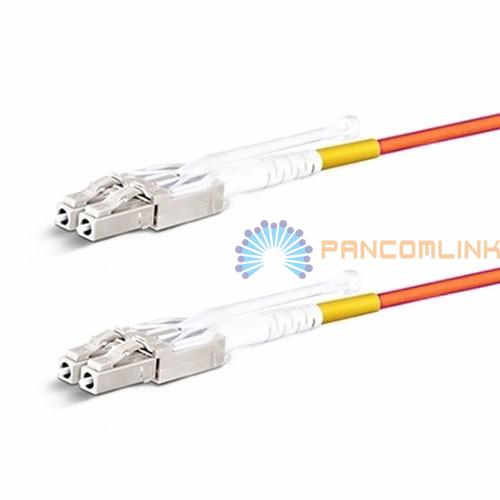

4. Standard, ribbon, ruggedized or fan-out type is available
5. Standards: IEC-61754-7, GR-1435 and EIA/TIA-604-5 (FOCIS-5)
6. Different fiber sequences and different key configurations are optional
7. Customized fiber counts, lengths, cable diameter and outer jacket materials
v Technical Parameters
|
Performance Level |
Standard |
Elite |
||||
|
Connector |
Mode |
Endface |
IL(max) (dB) |
RL(min) (dB) |
IL(max) (dB) |
RL(min) (dB) |
|
MPO/MTP |
SM (OS2) |
12F/APC |
≤0.70 |
≥60 |
≤0.35 |
≥60 |
|
24F/APC |
≤0.75 |
≥60 |
≤0.35 |
≥60 |
||
|
48F/APC |
≤0.75 |
≥60 |
|
|
||
|
MM (OM1-OM5) |
12F/PC |
≤0.50 |
≥20 |
≤0.35 |
≥20 |
|
|
24F/PC |
≤0.50 |
≥20 |
≤0.35 |
|
||
|
48F/PC |
≤0.50 |
≥20 |
|
≥20 |
||
|
Mechanical Properties |
|||
|
Item |
Criteria |
Conformance |
|
|
IL After 50 Matings |
MPO/MTP |
≤0.3dB |
GR-1435 |
|
IL After 500 Matings |
LC/SC/FC/ST |
≤0.2dB |
IEC 61300-2-2 |
|
Min Bend Radius (Dynamic) |
20*OD (Cable Diameter) |
||
|
Min Bend Radius (Static ) |
15*OD (Cable Diameter) |
||
|
Fiber Count |
8/12/16/24/36/48/72/96/144 Fiber Counts (Customized) |
||
|
Test Wavelength |
SM: 1310/1550nm, MM: 850/1300nm |
||
|
Repeatbility |
≤0.1dB |
||
|
Durability |
≤0.2dB (1000 times mating) |
||
|
Jacket Materials Type |
|||
|
Cable Diameter |
0.9mm, 2.0mm, 3.0mm |
||
|
Cable Length |
1m, 2m, 3m, 5m, 10m...(Customized) |
||
|
Cable Jacket Color |
Yellow(SM), Orange(OM1/2), Aqua(OM3), Rosy/Violet(OM4) |
||
|
Connector Housing Color |
Green (SM), Beige (OM1/OM2), Aqua (OM3/OM4) |
||
|
Operation Temperature |
-40~60°C |
IEC 61753-1 |
|
|
Storage Temperature |
-45~85°C |
||
