Description

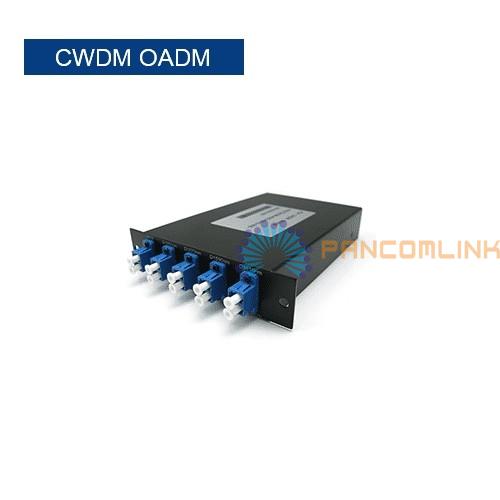

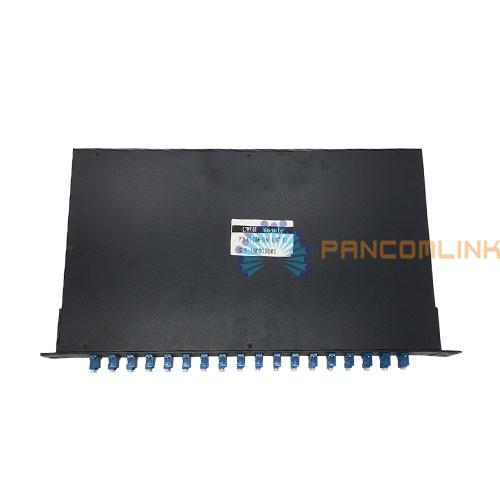

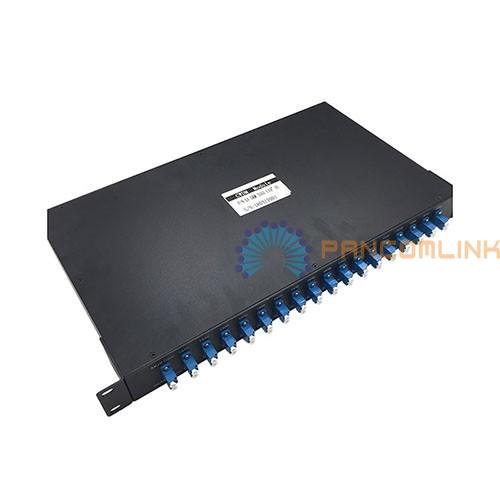

● CWDM OADM:
CWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple CWDM channels into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination. CWDM OADM modules are available in single-sided (East or West) and dual-sided (East and West) configurations supporting up to four wavelengths.
● Features:
● Low insertion loss
● Protocol transparent (support 1G, 10G etc.)
● Based on thin film optics with epoxy free optical path
● Fully compliant with Telcordia GR1221, GR1209, RoHS, ISO
● Ideal for WDM ring structures or daisy chain applications
● ADD<==>EXP, DROP<==>COM
● Multiple packages available
● Application:
Applications in CWDM Network
● Specification:
|
Parameter |
Unit |
Specification |
|
|
Wavelength Range |
nm |
1260 ~ 1620 |
|
|
Center Wavelength |
nm |
Customer specified |
|
|
Channel Spacing |
nm |
20 |
|
|
Passband |
nm |
CW±6.5 |
|
|
Insertion Loss |
COM==>DROP |
dB |
≤1.5 |
|
ADD==>EXP |
|||
|
Adjacent Isolation |
dB |
≥30 |
|
|
Non-Adjacent Isolation |
dB |
≥45 |
|
|
PDL |
dB |
≤0.1 |
|
|
Directivity |
dB |
≥50 |
|
|
Return Loss |
dB |
≥45 |
|
|
PMD |
ps |
≤0.1 |
|
|
Power Handling (CW) |
mW |
≤300 |
|
|
Operating Temperature |
℃ |
-10 to +70 |
|
|
Storage Temperature |
℃ |
-40 to +85 |
|
|
Fiber Type |
G.657.A1 or G.652D |
||
|
Fiber Diameter |
3.0mm or 2.0mm，0.9mm with loose tube |
||
|
Connector Type |
LC/UPC or others |
||
|
Fiber Length |
m |
1 or others |
|
|
Optional Moniter Port |
% |
1 |
|
|
Package Dimensions |
mm |
ABS Cassette:100*80*10.5; 140*115*18; ABS mini box：90x20x10;
Steel tube :Φ5.5*38; |
|
● Order Information:
|
Ordering Info. for OADM Part Number：WM-O-49A1-20-1LLU-A 123 4567 8 9101112 Product Description：OADM Dual Fiber ABS Cassette 1 wavelength 1490nmADD/1490nmDROP G.657.A1 2.0mm Diameter 1M Fiber length with LC/UPC connector |
|
|
1 - Number of wavelengths |
Null: 1 wavelength; 2: 2 wavelengths; |
|
2 - Type |
O: OADM |
|
3 - Optional functions |
M: Moniter port; |
|
4 - Wavelength |
27:1270nm; 29:1290nm; 31:1310nm; 33:1330nm; 35:1350nm; 37:1370nm; 39:1390nm; 41:1410nm; 43:1430nm; 45:1450nm etc |
|
5 - Communication Type |
S: Single fiber; Null: Dual fiber; |
|
6 - Fiber Type |
D: G.652D; A: G.657.A1; |
|
7 - Fiber Diameter |
20: 2.0mm; 09: 0.9mm with loose tube; Does not show in LGX and 19 inch Rack fixed |
|
8 - Fiber length |
1: 1M or others; Does not show in LGX and 19 inch Rack fixed |
|
9 - COM ports |
L: LC; S: SC; F: FC; |
|
10 - Other ports |
L: LC; S: SC; F: FC; |
|
11 - Endface |
U: UPC polish; P: PC polish; A: APC polish |
|
12- Package |
A: ABS Cassette or mini ABS box; B: Steel tube; L: LGX; R: 19 inch Rack fixed |
