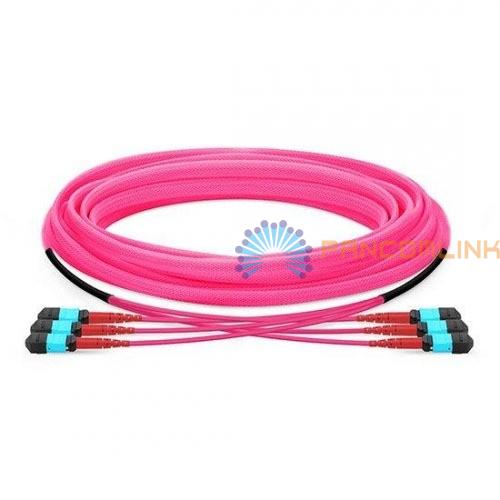

  • Product Item:PCLINK-72F-MTP/MPO-24S-OM4-HD-Trunk-Cable
  • Description

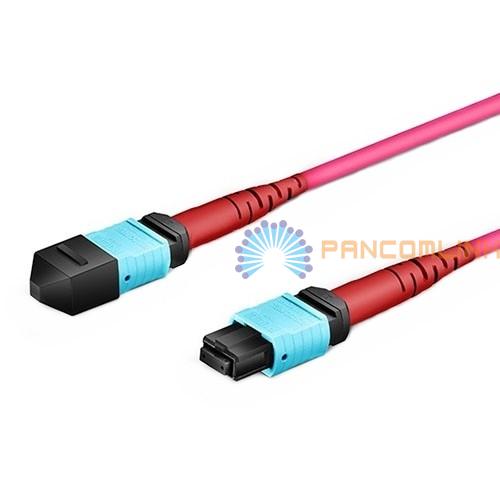

    MTP®/MPO cables, a cost-effective alternative to time-consuming field termination, are designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With 0.35dB insertion loss, MTP®/MPO cables from PancomLink are applied mainly for 10G/ 40G/100G direct connection and high-density data center application.


    v Applications

    MTP/MPO cable is the high dense degree of optical fiber pre-connect system, which is generally used in three areas:

    1. Data Center with High Dense Degree Environment

    2. Fiber Optic Networks

    3. Internal Connector Application in Fiber Equipment such as 40G/100G SFP and SFP+


    v Features

    1. Factory products with a competitive price

    2. OEM/ODM production and fast delivery

    3. Good exchangeability and durability

    4. Standard, ribbon, ruggedized or fan-out type is available

    5. Standards: IEC-61754-7, GR-1435 and EIA/TIA-604-5 (FOCIS-5)

    6. Different fiber sequences and different key configurations are optional

    7. Customized fiber counts, lengths, cable diameter and outer jacket materials


    v Technical Parameters

    Performance Level

    Standard

    Elite

    Connector

    Mode

    Endface

    IL(max) (dB)

    RL(min) (dB)

    IL(max) (dB)

    RL(min) (dB)

    MPO/MTP

    SM (OS2)

    12F/APC

    ≤0.70

    ≥60

    ≤0.35

    ≥60

    24F/APC

    ≤0.75

    ≥60

    ≤0.35

    ≥60

    48F/APC

    ≤0.75

    ≥60

    MM (OM1-OM5)

    12F/PC

    ≤0.50

    ≥20

    ≤0.35

    ≥20

    24F/PC

    ≤0.50

    ≥20

    ≤0.35

    48F/PC

    ≤0.50

    ≥20

    ≥20

    Mechanical Properties

    Item

    Criteria

    Conformance

    IL After 50 Matings

    MPO/MTP

    ≤0.3dB

    GR-1435

    IL After 500 Matings

    LC/SC/FC/ST

    ≤0.2dB

    IEC 61300-2-2

    Min Bend Radius (Dynamic)

    20*OD (Cable Diameter)

    Min Bend Radius (Static )

    15*OD (Cable Diameter)

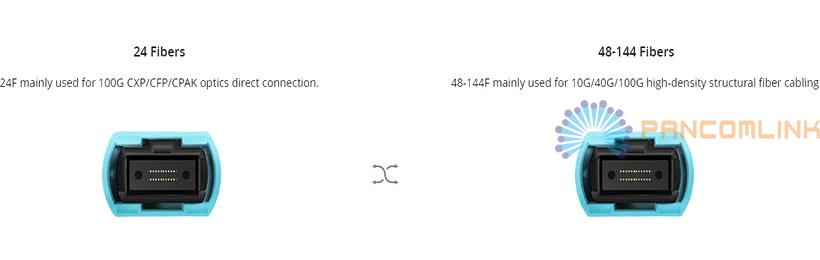

    Fiber Count

    8/12/16/24/36/48/72/96/144 Fiber Counts (Customized)

    Test Wavelength

    SM: 1310/1550nm, MM: 850/1300nm

    Repeatbility

    ≤0.1dB

    Durability

    ≤0.2dB (1000 times mating)

    Jacket Materials Type

    PVC/LSZH/OFNR/OFNP (Customized)

    Cable Diameter

    0.9mm, 2.0mm, 3.0mm

    Cable Length

    1m, 2m, 3m, 5m, 10m...(Customized)

    Cable Jacket Color

    Yellow (SM), Orange (OM1/OM2), Aqua (OM3/OM4)

    Connector Housing Color

    Green (SM), Beige (OM1/OM2), Aqua (OM3/OM4)

    Operation Temperature

    -40~60°C

    IEC 61753-1

    Storage Temperature

    -45~85°C


    Pre-terminated MPO/MTP Technology-Polarity

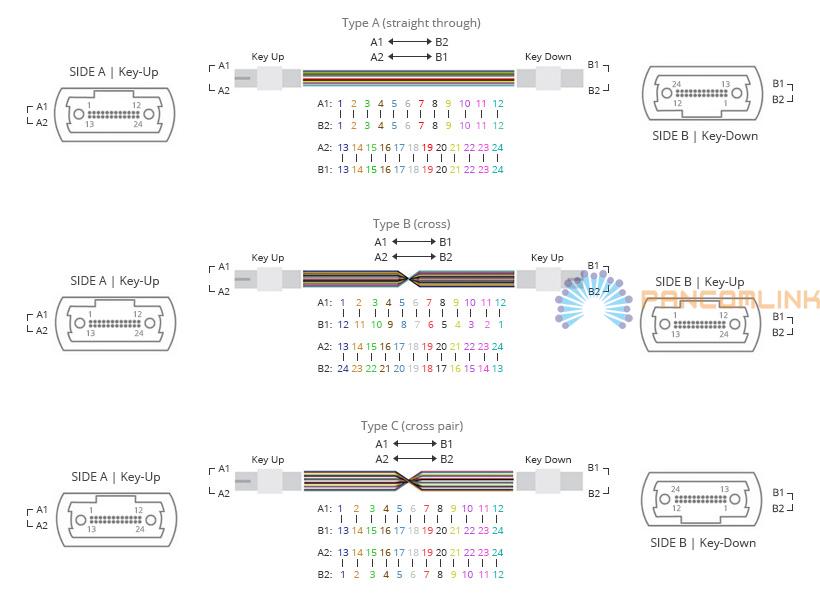

    Three polarity methods Type A, Type B and Type C (standard polarity is Type A unless specified otherwise) to guarantee the right bi-directional allocation:
