Description
● Rack Mounted Chassis:
Rack Mounted Chassis is a centralized and economical equipment of gather Ethernet media converter together. It covers two styles, 14 slots and 16 slots and used in plant room with centralized dual power supply and automatic switch. Normal size is 2U but 14 slots is for standalone device and 16 slots is for card style.

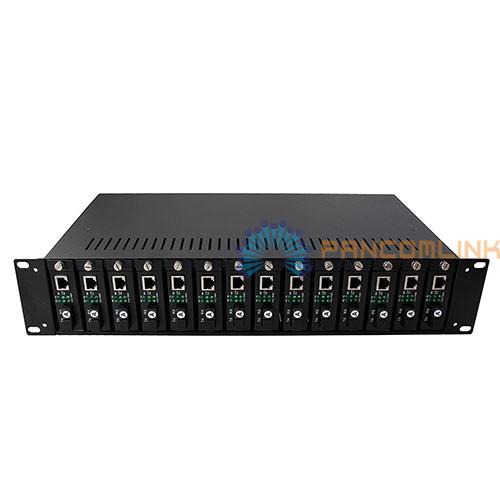

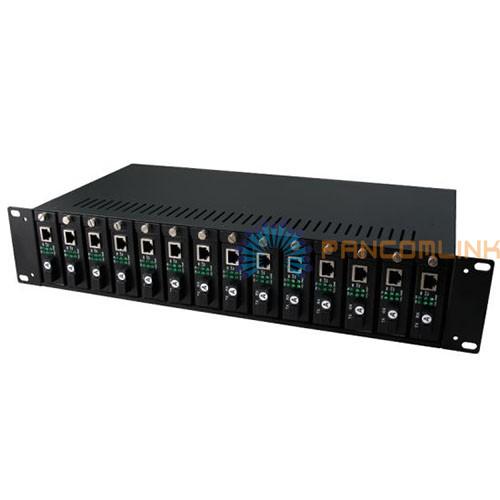

The 2U-Chassis is a 19-Inch rack mountable conversion center, capable of serving up to 14 media conversion modules. 14 Slot Fiber Optic Media Converter Chassis is acceptable for the most 14 sets of 10/100M or 1000M or 10/100/1000M stand-alone media converter.
The 2U-Chassis is a 19-Inch rack mountable conversion center, capable of serving up to 16 media conversion modules. 16 Slot Fiber Optic Media Converter Chassis is acceptable for the most 16 sets of 10/100M,1000M,10/100/1000M or 10G card-type media converter.
● Features:
● Supplying the Converters or Powers to be plugged and played;
● 19’ 2U rack, easy for focus management;
● 14/16 slots for media converter module;
● Auto-identify MDI/MDIX;
● Full/half duplex auto negotiation;
● Low power loss and good heat dissipation;
● Stable performance, large capacity of power supply, ease for management and maintenance.
● Application:
● LAN/WAN;
● Access Control Systems;
● Building and Environmental Control Systems;
● 10/100/1000 Mbps Ethernet;
● High Speed Computer Links.
● Specification:
|
Slot quantity |
Structure |
Optic interface |
Height |
Power supply |
|
14 |
19" |
SC, FC, ST |
2U |
Dual power supply, AC220V |
|
Dual power supply, DC48V |
||||
|
Dual power supply, DC48V+AC220V |
||||
|
16 |
Dual power supply, AC220V |
|||
|
Dual power supply, DC48V |
||||
|
Dual power supply, DC48V+AC220V |
