Description

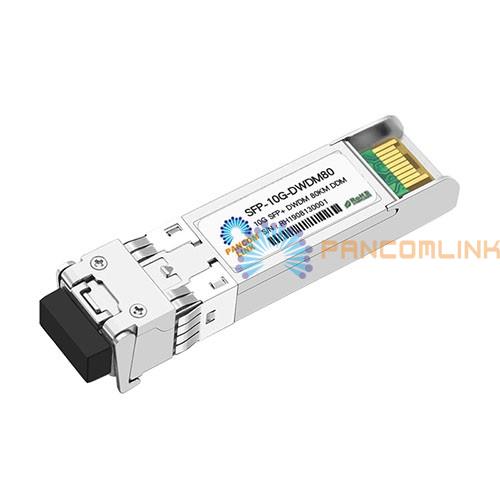

● 10G DWDM SFP+ Optic Transceiver:
10G DWDM SFP+ is specifically designed for carriers and large enterprises that require a scalable, flexible, cost-effective system for multiplexing, transporting and protecting high-speed data, storage, voice and video applications in point-to-point, add/drop, ring, mesh and star network topologies. Digital diagnostic functions are available via an I2C. This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz or 50GHz ITU Grid, C Band DWDM wavelength. A guaranteed minimum optical link budget of 14dB/23dB is offered.
● Features:
● Single +3.3 V Power Supply
● Support 9.95Gbps to 11.3Gbps
● DWDM TUNABLE laser optional
● Built-in digital diagnostic functions
● Transmission distance up to 80km over SMF
● Temperature-stabilized DWDM EML Transmitter
● Can be used with single fiber DWDM system and dual fiber DWDM system
● Available in all C-Band Wavelengths on the 100GHz or 50GHz DWDM ITU Grid
● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
● Application:
● SONET OC-192/SDH STM-64
● OTN ITU-T G.709
● 10GBASE-SR/LR/ER/ZR Ethernet
● 10X/8X/4X/2X/1X Fibre Channel
● DWDM Networks
● Order Information:
|
10Gbps DWDM SFP+ Transceiver |
||||||||
|
Description |
Data Rate (Gbps) |
Distance |
Fiber |
Tx Power (dBm) |
Rx Sens (dBm) |
Interface |
Temp. |
DDM |
|
100GHz DWDM SFP+ |
||||||||
|
10G DWDM SFP+ 40KM 100Ghz |
9.95~11.3 |
40km |
SMF |
0～5 |
-16 |
Duplex LC |
0 to 70℃ |
Yes |
|
10G DWDM SFP+ 80KM 100Ghz |
9.95~11.3 |
80km |
SMF |
0～5 |
-23 |
Duplex LC |
0 to 70℃ |
Yes |
|
10G DWDM SFP+ 100KM 100Ghz |
9.95~11.3 |
100km |
SMF |
0～5 |
-24 |
Duplex LC |
0 to 70℃ |
Yes |
|
100GHz DWDM Tunable SFP+ |
||||||||
|
10G DWDM T SFP+ 40KM 100Ghz |
9.95~11.3 |
40km |
SMF |
0～5 |
-16 |
Duplex LC |
0 to 70℃ |
Yes |
|
10G DWDM T SFP+ 80KM 100Ghz |
9.95~11.3 |
80km |
SMF |
0～5 |
-23 |
Duplex LC |
0 to 70℃ |
Yes |
|
50GHz DWDM Tunable SFP+ |
||||||||
|
10G DWDM T SFP+ 40KM 50Ghz |
9.95~11.3 |
40km |
SMF |
0～5 |
-16 |
Duplex LC |
0 to 70℃ |
Yes |
|
10G DWDM T SFP+ 80KM 50Ghz |
9.95~11.3 |
80km |
SMF |
0～5 |
-23 |
Duplex LC |
0 to 70℃ |
Yes |
