Description
● Description:

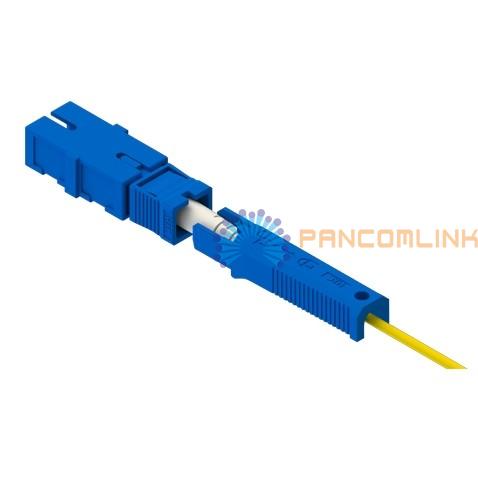

Fiber optic connector has a screw thread fitting into the adapter to provide a secure connection. The connector is comprised of a nickel plated brass body and a ceramic ferrule/spring/crimp barrel assembly plus a crimp-over sleeve and rubber boot.
Fiber optic connector, or optical fiber connector, is a component to terminate the end of fiber optical cable, and enables quicker connection and disconnection than fiber splicing. It mechanically couples and aligns the fiber cores to make light pass successfully. Therefore, fiber optic connector has an important impact on the fiber optic transmission reliability and the performance of the system. Quality optical connectors lose very little light due to reflection or misalignment of the fibers.
● Features:

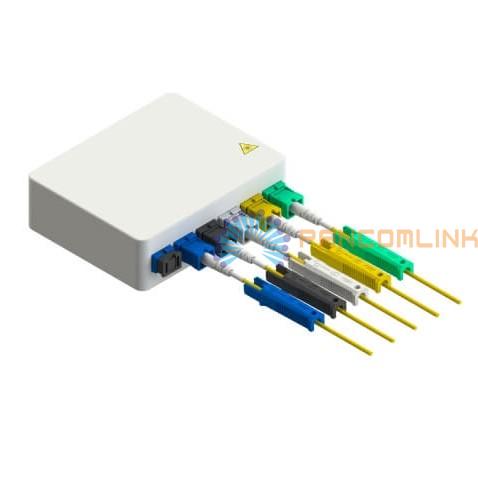

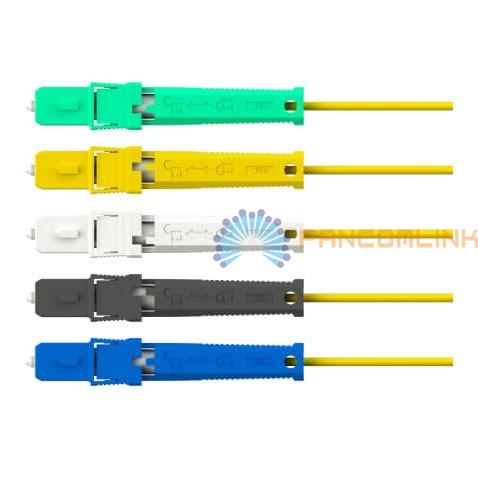

• Five different colors/keys available

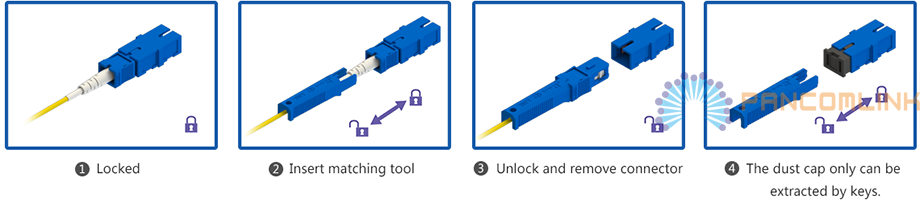

• Can only be removed with matching color key
• Applies to 2.0/3.0mm cable
• FOCIS-3/ TIA-604-3/IEC 61754-4 and GR326-core reference
• RoHS/REACH and UL94-V0 inflammability grade compliant
• Compatible with all industry standard SC adapters
• Ideal for networks with higher security levels
● Application:
• Military network
• Government network
• Financial network
• Telecom network
• Ethernet network
• Optical communication equipment
● Specification:
|
Items |
SM |
MM |
|
|
Connector Type |
UPC |
APC |
PC |
|
Insertion Loss |
≤0.3dB |
≤0.3dB |
|
|
Return Loss |
≥50dB |
≥60dB |
≥30dB |
|
Durability Test |
100 times |
||
|
Operation Temperature |
-40℃～+85℃ |
||
