100G QSFP28 to 4x25G SFP28 DAC Series

Description

● 100G QSFP28 to 4x25G SFP28 DAC:

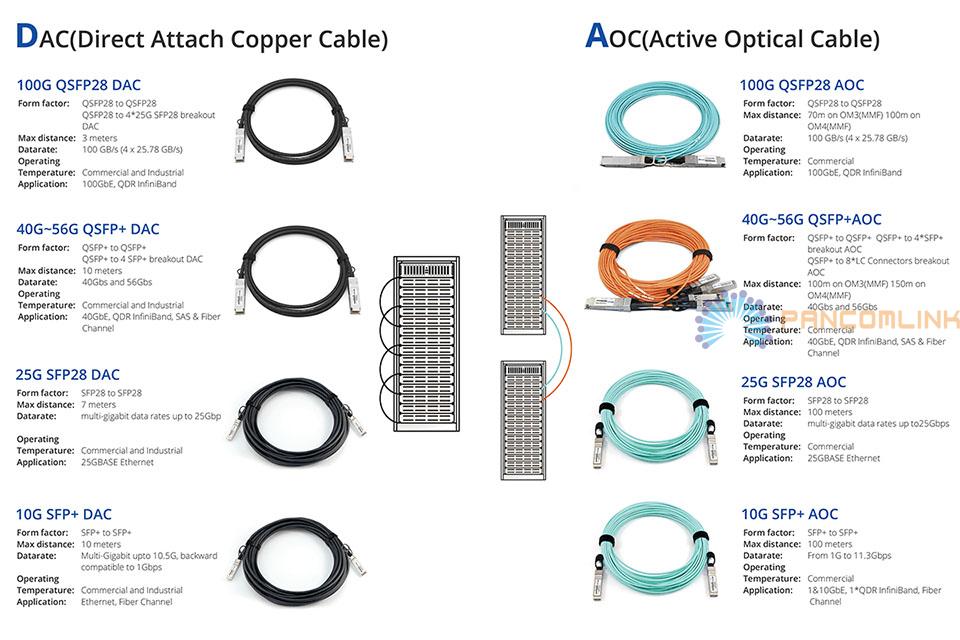

DAC Direct Attach Copper Cables are further divided into passive copper cable and active copper cable. In most data center, most server to server connections require 2-5 meters, while rack to rack connections are required to be connected by 8-12 meters cables. Passive copper cable are widely chosen by data centers for connecting servers to servers or servers to the Top Of the Rack (TOR) switch as they are passive, consume zero power, have the lowest latency and cost-effective. Active copper cable is less expensive and can support transmission up to 15 meters with low power consumption, which can satisfies the regular interconnection requirement for distance and cooling in most data center. PancomLink offers a wide range of products for 0.5m to 15m lengths and in QSFP+, SFP+ form factors. The unique EEPROM technique has been used to ensure DACs compatible with different brands on the original switches and routers.

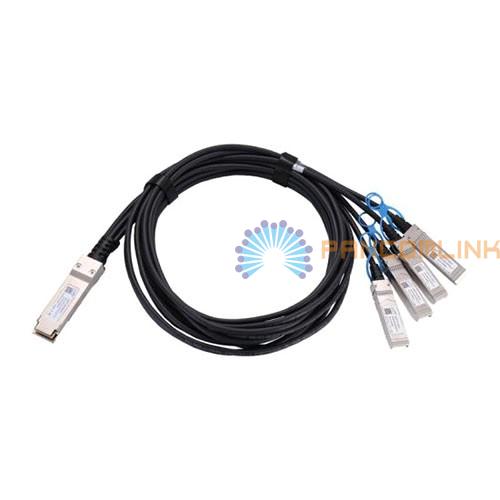

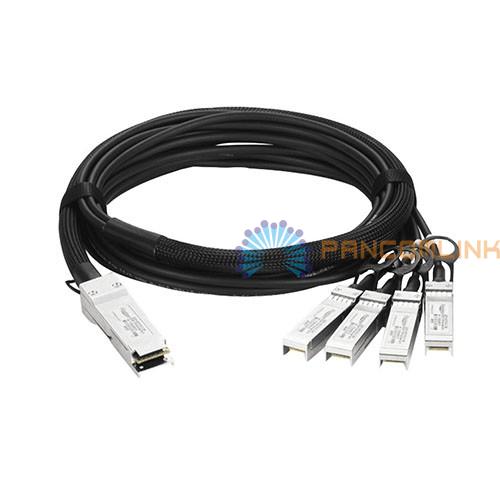

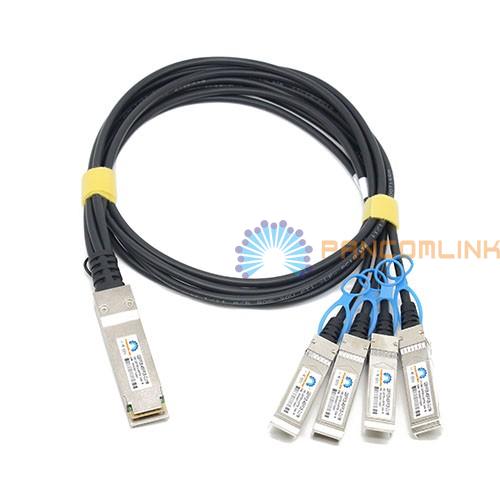

100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable application is "break-out" DAC assembly which is a hybrid transition from a QSFP28 on one terminal to four individual SFP28 on the other. The QSFP28 to four parallel bi-directional channels each operating at up to 25Gbps.

● Features:

• 100G QSFP28 to 4x 25G SFP28 Breakout

• Length: 0.5~5 meters

• Passive

• MCU or EEPROM

• 30/28/26AWG

• Low power consumption

• Excellent EMI performance

• Compliant with 100G Ethernet (IEEE 802.3bj), InfiniBand EDR, SFF-8665, RoHS

● Application:

• Ethernet 100G, 25G

• InfiniBand 4X SDR, DDR, QDR, EDR, FDR

• Fiber Channel 25G, 100G

• Rack-to-Rack, Shelf-to-Shelf Interconnect

• TOR (Top of Rack)
