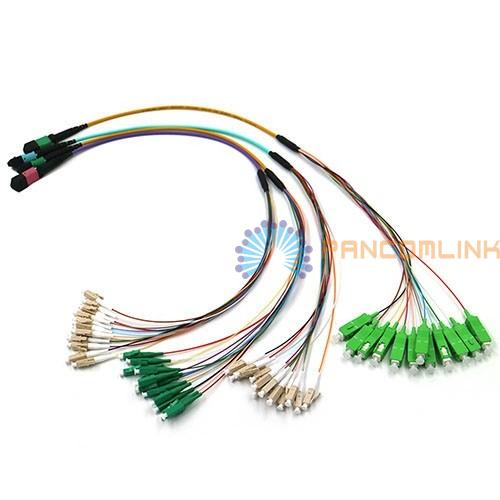

Customized MTP/MPO with Mini Boot 0.9mm Fanout Cables

Product Item：PCLINK-Customized-MTP/MPO-MB-0.9mm-Fanout-Cables

Description

MTP^®/MPO cables, a cost-effective alternative to time-consuming field termination, are designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With 0.35dB insertion loss, MTP^®/MPO cables from PancomLink are applied mainly for 10G/ 40G/100G direct connection and high-density data center application.

v Applications

MTP/MPO cable is the high dense degree of optical fiber pre-connect system, which is generally used in three areas:

1. Data Center with High Dense Degree Environment

2. Fiber Optic Networks

3. Internal Connector Application in Fiber Equipment such as 40G/100G SFP and SFP+

v Features

1. Factory products with a competitive price

2. OEM/ODM production and fast delivery

3. Good exchangeability and durability

4. Standard, ribbon, ruggedized or fan-out type is available

5. Standards: IEC-61754-7, GR-1435 and EIA/TIA-604-5 (FOCIS-5)

6. Different fiber sequences and different key configurations are optional

7. Customized fiber counts, lengths, cable diameter and outer jacket materials

v Technical Parameters

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM (OS2)	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM (OM1-OM5)	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35
		48F/PC	≤0.50	≥20		≥20

Mechanical Properties
Item	LC/SC/FC/ST/E2000
Fiber Type	SM			MM
Polish Type	APC	PC	UPC	APC		PC	UPC
Insertion Loss (Typical)	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB		≤0.3dB	≤0.3dB
Return Loss	≥60db	≥50dB	≥55dB	≥45dB		≥35dB	≥35dB
Min Bend Radius (Dynamic)	20*OD (Cable Diameter)
Min Bend Radius (Static )	15*OD (Cable Diameter)
Fiber Count (MPO/MTP)	8/12/16/24/36/48/72/96/144 Fiber Counts (Customized)
Test Wavelength	SM: 1310/1550nm, MM: 850/1300nm
Repeatbility	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Jacket Materials Type	PVC/LSZH/OFNR/OFNP (Customized)
Cable Diameter	0.9mm, 2.0mm, 3.0mm

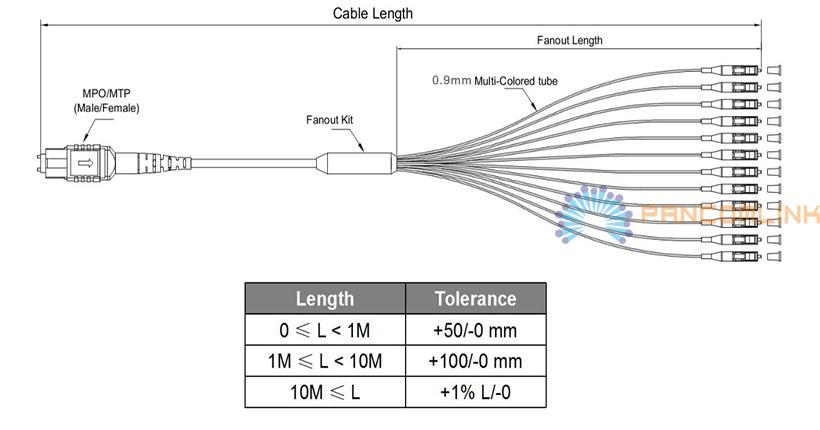

Cable Length	1m, 2m, 3m, 5m, 10m...(Customized)
Cable Jacket Color	Yellow(SM), Orange(OM1/2), Aqua(OM3), Rosy/Violet(OM4)
Connector Housing Color	Green (SM), Beige (OM1/OM2), Aqua (OM3/OM4)
Operation Temperature	-40~60°C				IEC 61753-1
Storage Temperature	-45~85°C
