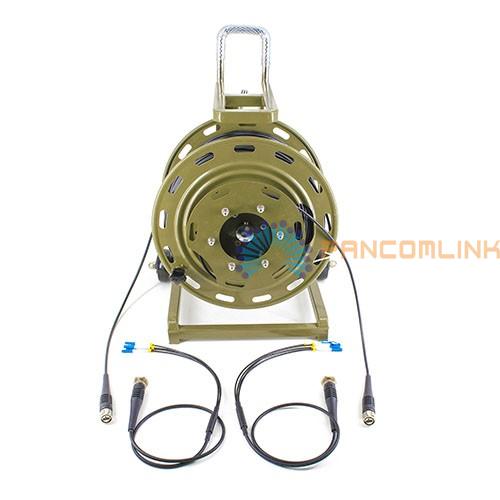

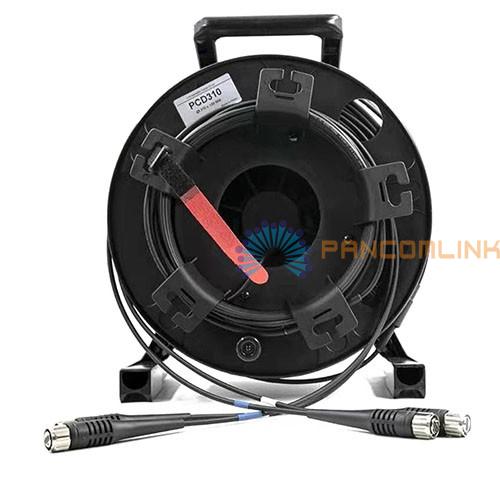

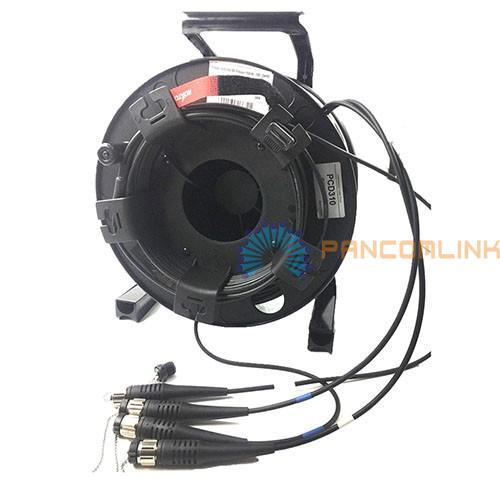

ODC Plug/Socket SM/MM 2/4 Cores FTTA Patch Cable with Reel

Description

● ODC Outdoor Cable Assemblies:

ODC fiber optic patch cables are used in outdoors, which suitable for different environment and large temperature range, typically used in FTTA. And ODC connector is next generation connectors for wireless base station application including WCDMA, TD-SCDMA, CDMA200, Wi-MAX, GSM. ODC provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of shock, strongest vibration, or accidental misuse.

PancomLink offers three types of ODC patch cables: Type A, Type B and Type C. Type A and Type B is compatible with most ODC connectors of other brands. Type C is not compatible with others, but it is available for multi cores, which provides more options. ODC cables usually consist of LC fiber connector and ODC socket/plug connector, and the ODC socket can be directly connected to ODC plug for a complete set. The ODC connector is a kind of harsh environment fiber optical interfaces for remote radio heads. It is installed in many different types of environments such as costal areas, urban buildings, rural tower sites and extreme temperatures, vibration, salt mist, corrosive gases and humidity etc.

● Features:

• 2 and 4 channel, or customized 6 and 8 channel

• Male and female optional

• Indoor and outdoor optional

• IP67 water and dust protection

• Operating temperature: -40° to 85°C

• Compact design with 2 x or 4x 1.25mm Ferrules

• Built-in socket available with square or hexagonal flange

• Water proof, dust proof, corrosion resistant and protection cap

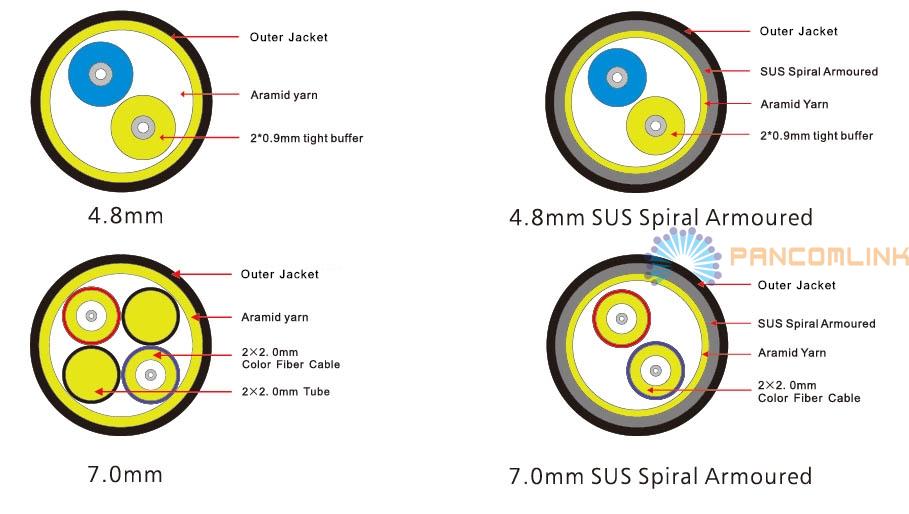

• Wide range of cables to be used, 5-7mm OD cable with duplex 2.0mm to 3.0mm jacketed subunits

● Application:
• Multi-purpose Outdoor

• FTTA, FTTH Application

• 3G, 4G, 5G Base Station

• Deployment in BBU, RRU, RRH, LTE applications

● ODC Optic Patch Cable Performance:
