Description

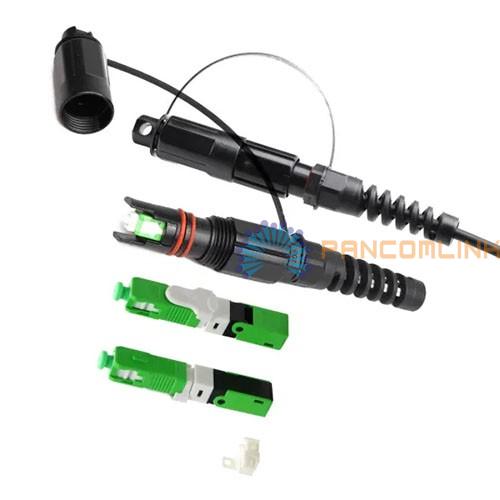

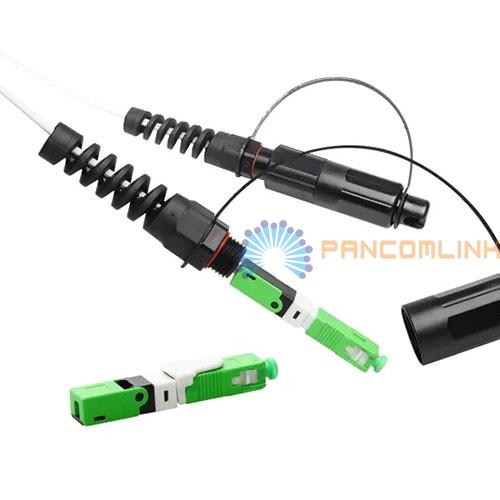

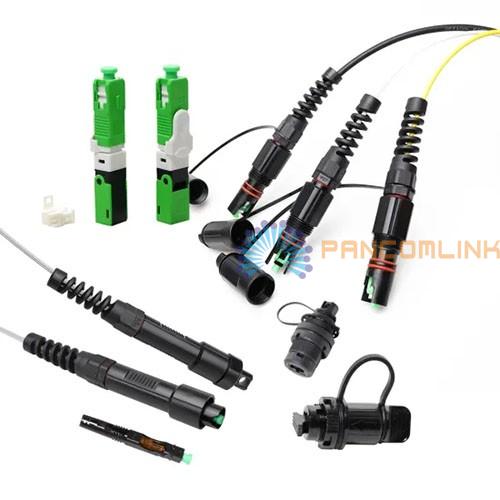

● Field Assembly Reinforced Optical Connector OptiTap Adapter for SC Fast Connector:

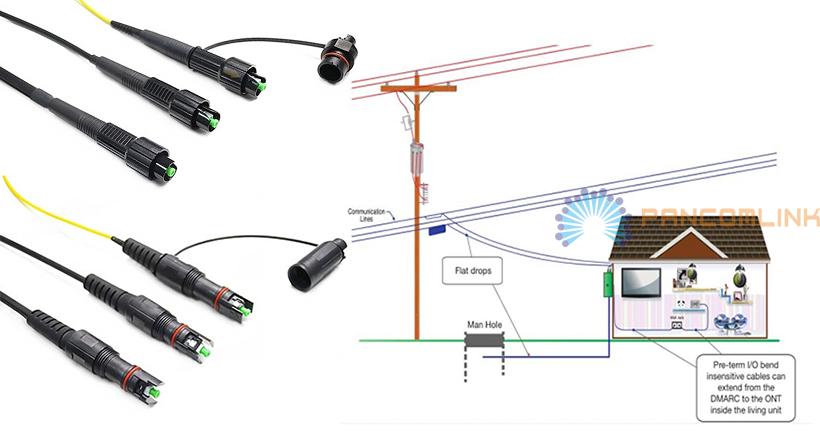

OptiTap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.
● Features:
• Compact size,easy to operate,durable.

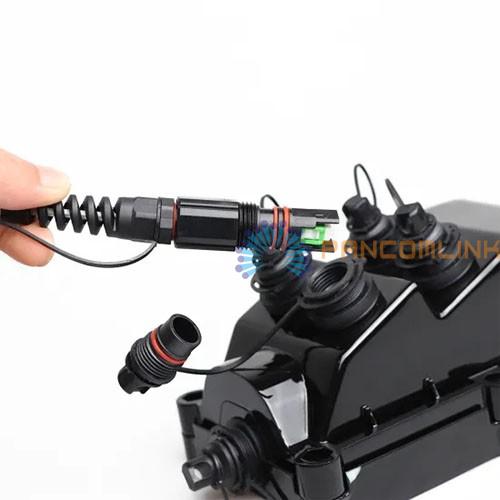

• Easy connection to hardended adapters on terminals or closures.
• Reduce welding, connect directly to achieve interconnection.
• Spiral clamping mechanism ensures long-term reliable connection.
• Guide mechanism, can be blinded with one hand, simple and quick, connect and install.
• Accepts 2.0x3.0mm, 3.0mm, 5.0mm cable diameters factory or field installation, and allows flexibility to use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.
● Application:
• Fiber optic communications in harsh outdoor environments
• Outdoor communications equipment connection
• Waterproof fiber equipment SC port
• Remote wireless base station
• FTTX wiring project
● Product Performance:
|
Waterproof Rate |
IP68.(1M, 1hour) |
|
|
Applicable optical cable |
2.0x3.0mm, 3.0mm, 5.0mm |
|
|
Insertion loss |
≤0.50dB |
|
|
Return loss |
≥55dB |
|
|
End face performance |
Conform to YD T 2341.1-2011 |
|
|
Mechanical durability |
1000 times |
|
|
Cable tension |
2.0x3.0mm (Ttap Fast Connector) |
≥30N; 2Minute |
|
2.0mm,3.0mm (Ttap Connector) |
≥30N; 2Minute |
|
|
5.0mm (Ttap Connector) |
≥70N; 2Minute |
|
|
Torsion of optical cable |
≥15N |
|
|
Drop performance |
Allow 10 drops under 1.5m height without abnormal performance |
|
|
Operation temperature |
2.0x3.0mm (Ttap Fast Connector) |
-10ºC~+70ºC |
|
2.0mm,3.0mm (Ttap Connector) |
-40ºC~+80ºC |
|
|
5.0mm (Ttap Connector) |
-40ºC~+80ºC |
|
|
Hot and humid working environment |
Long term operation under 90% relative humidity, 70 ºC |
|
