Description
● MGTSV Multi Loose Tube Miner Optical Fiber Cable:

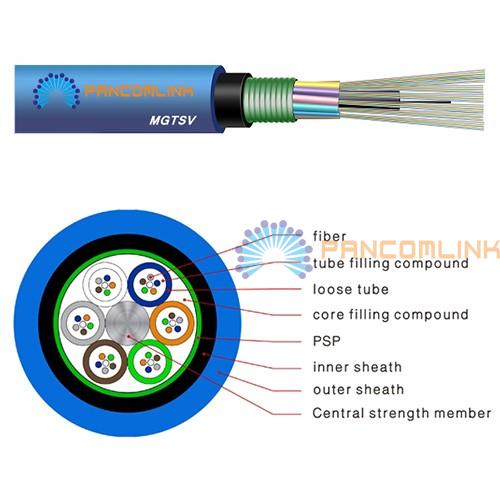

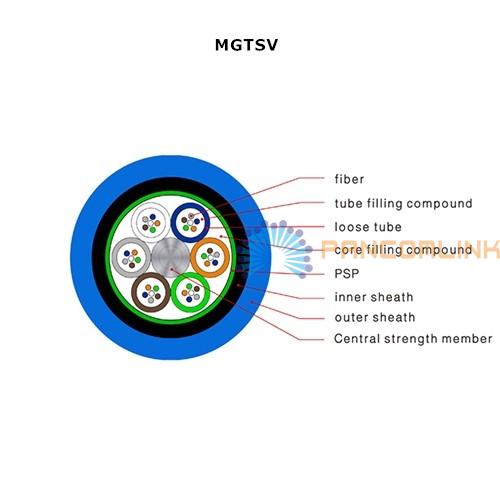

MGTSV fiber optic cable, the fibers, 200um or 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. The PSP is longitudinally applied over the cable core, a thin PE inner sheath is applied, then the cable is completed with a PE outer sheath.
● Features:
►Good mechanical and temperature performance;
►High strength loose tube has good performance of water proof and high strength;
►Special tube filling compound ensure a critical protection of fiber;
►Good crush resistance and flexibility;
►The following measures are taken to ensure the cable watertight:
·Steel wire used as the central strength member
·Loose tube filling compound
·100% cable core filling
·PSP enhancing moisture-proof and anti-rodent
·Good water resistance material prevent longitudinal seepage
►Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance;
►MGTSV cable complies with Standard MT386-1995 test method and decision rule of the flame retardant of the cable used in coal mine.
● Optical Characteristics:
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300nm |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelengthλcc |
|
≤1260nm |
≤1480nm |
|
|
● Technical Parameters:
|
Cable Type |
Fiber Count |
Tubes+Fills |
Cable Diameter |
Cable Weight |
Tensile Strength
Long/Short Term |
Crush Resistance |
Bending Radius |
|
MGTSV |
2～60 |
5 |
12.2 |
156 |
1000/2000 |
500/1500 |
15D/30D |
|
MGTSV |
62～72 |
6 |
13.8 |
210 |
1750/3500 |
500/1500 |
15D/30D |
|
MGTSV |
74～96 |
8 |
15.1 |
242 |
1750/3500 |
500/1500 |
15D/30D |
|
MGTSV |
98～120 |
10 |
17.2 |
280 |
1750/3500 |
500/1500 |
15D/30D |
|
MGTSV |
122～144 |
12 |
19.0 |
320 |
1750/3500 |
500/1500 |
15D/30D |
|
MGTSV |
146～216 |
18 |
19.0 |
320 |
1750/3500 |
500/1500 |
15D/30D |
|
Storage/Operating Temperature : |
-40℃ to +70℃ |
||||||
