Description
● GJFJV Indoor Bundle Cable:

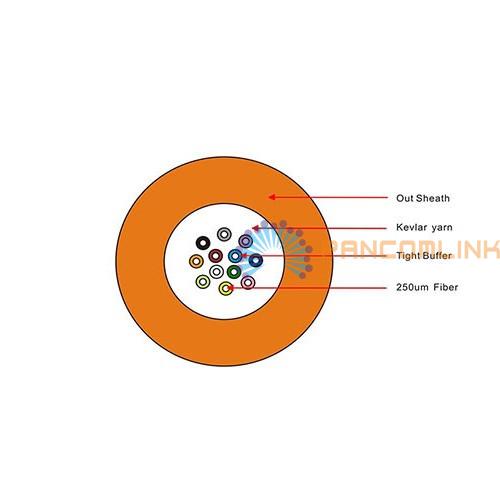

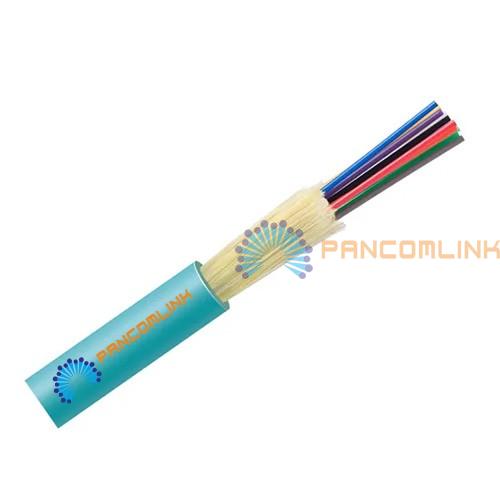

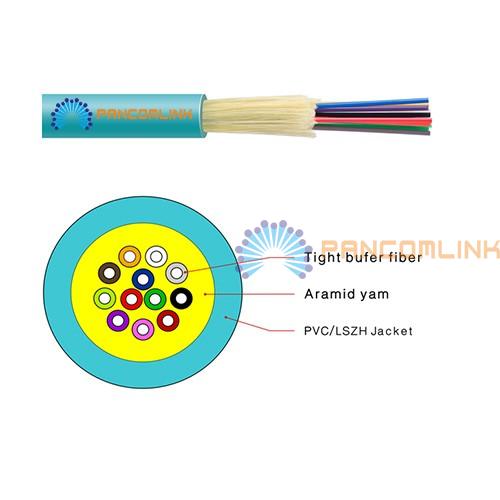

GJFJV Indoor Bundle Cable is made by evenly applying strands of aramid yarns or high strength glass yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC (LSZH) jacket.
● Features:

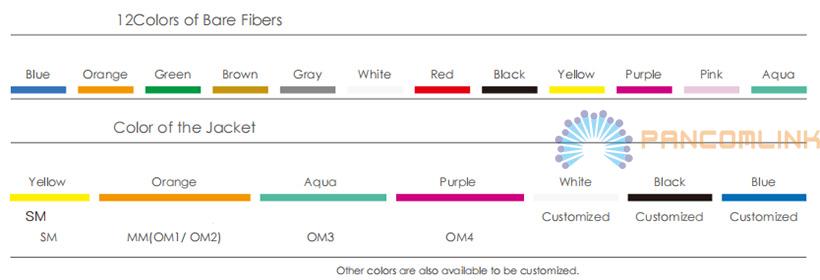

►Flexible, flame-retardant & color coded outer jacket;
►Non-unitized design providing space saving and cost advantages;
►High strength aramid yarn offers high tensile strength;
►Suitable for indoor application and communication equipment.
● Application:
►Indoor cabling and distribution;
►Building cabling, LAN etc;
►Used in patch cords and pigtail;
►Connection for indoor equipment.
● Specification:
|
Cable Type |
OD(mm) |
Nominal Weight (kg/km) |
Tensile Strength (N)
|
Crush Resistance (N/100mm2) |
Bending Radius (mm) |
|||
|
Long Term |
Short Term |
Long Term |
Short Term |
Static |
Dynamic |
|||
|
GJFJV-4Xn |
4.8±0.2 |
19 |
90 |
270 |
300 |
1000 |
15D |
20D |
|
GJFJV-6Xn |
5.2±0.2 |
23 |
110 |
330 |
300 |
1000 |
15D |
20D |
|
GJFJV-8Xn |
6.2±0.2 |
29 |
160 |
480 |
300 |
1000 |
15D |
20D |
|
GJFJV-12Xn |
6.8±0.2 |
38 |
200 |
600 |
300 |
1000 |
15D |
20D |
|
GJFJV-16Xn |
7.4±0.2 |
48 |
220 |
660 |
300 |
1000 |
15D |
20D |
|
GJFJV-24Xn |
8.2±0.2 |
60 |
240 |
720 |
300 |
1000 |
15D |
20D |
|
Operating and Storage Temperature |
-40℃～+70℃ |
|||||||
|
Packing and Reel Length |
Standard wooden drum with protection. Standard reel length: 2/3 km/reel, other length is also available |
|||||||
Note: Xn is fiber optic model and D is the diameter of optical cable
