Description
● Description:

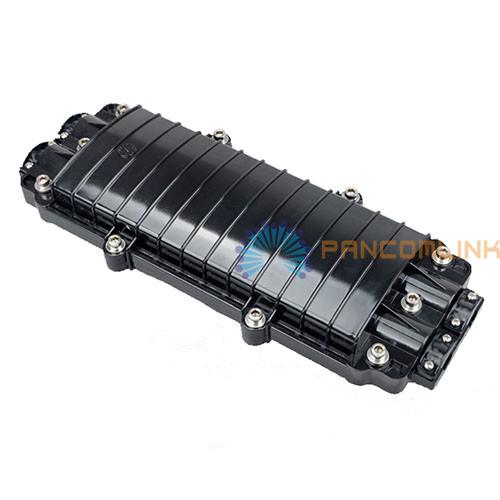

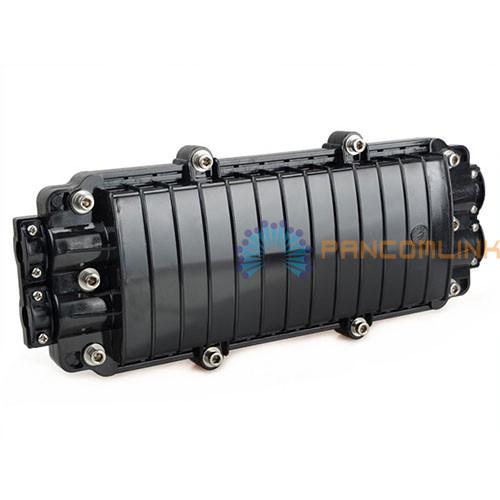

Inline fiber splice enclosure, also named fiber optic joint enclosure, is used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the optical fiber cable joint closure.

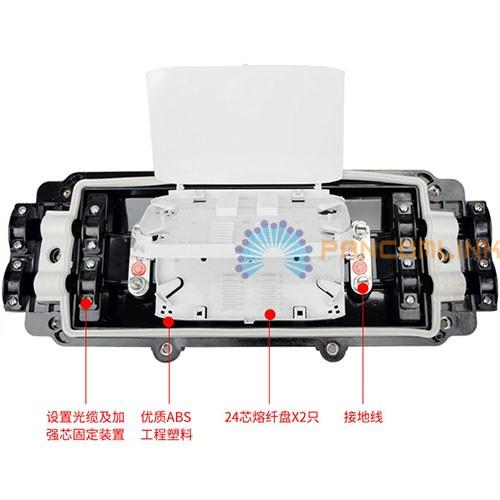

Horizontal fiber optic splice closure is an essential passive component for fiber optic cable management in the fiber-optic network of backbone, MAN, and access network. The fiber splice closures and the splice trays inside provide strong protection for the spliced fiber joint and fiber cables.
Fiber Optic Splice Closure can be installed in aerial, pole mounting, wall mounting, direct buried, and duct mounting, which used for direct connection during the optical fiber transmission process. With good sealing performance, the simple installation and wide application range are the best choices for optical fiber connection.
● Specification:
• Dimension:420mm*180mm*100mm
• Capacity of FOSC:48(cores)

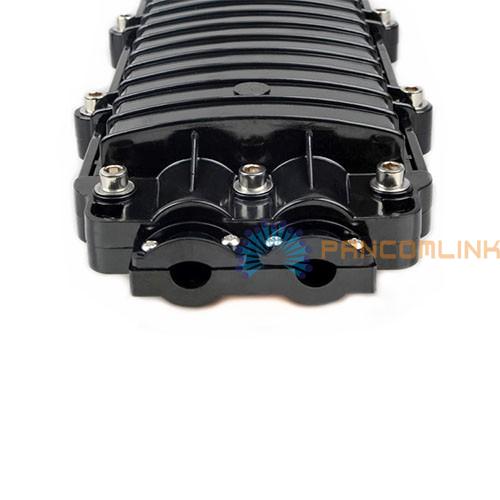

• Cable entry ports:4 pieces, 2 inlet, 2 outlet
• Assembling method:Aerial,Pipeline,Underground,hand-holes
• Protection level:IP68
• Number of Packing:20 pcs/ctn
• Weight:2000g/pcs
