Description
● GJFJV Duplex Indoor Figure 8 Cable:

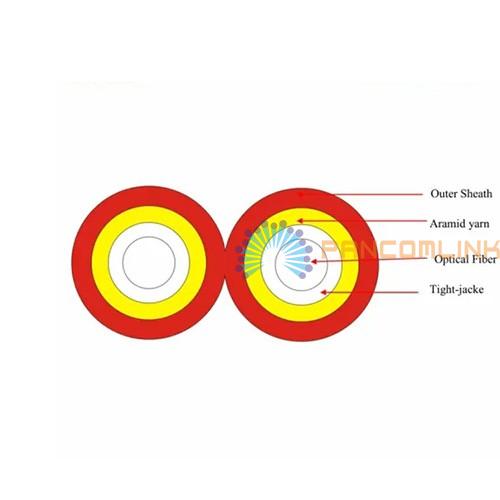

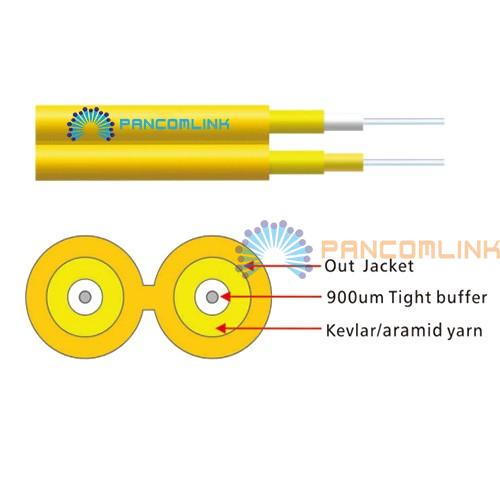

GJFJV Duplex Indoor Figure 8 Cable uses 900um or 600um tight buffer fiber as optical communication medium. The tight buffer fiber is wrapped with a layer of yarn as strength member, and the cable is completed with a figure 8 outside jacket. (PVC, LSZH, OFNR, OFNP and other materials are available as requirements)
● Features:

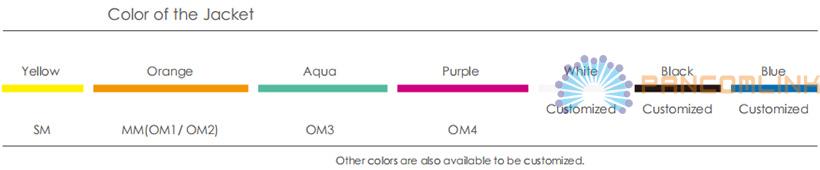

►Flexible, flame-retardant & color coded outer jacket;
►Non-unitized design providing space saving and cost advantages;
►High strength aramid yarn offers high tensile strength;
►Suitable for indoor application and communication equipment.
● Application:
►Indoor cabling and distribution;
►Building cabling, LAN etc;
►Used in patch cords and pigtail;
►Connection for indoor equipment.
● Specification:
|
Cable Type |
OD(mm) |
Nominal Weight (kg/km) |
Tensile Strength (N)
|
Crush Resistance (N/100mm2) |
Bending Radius (mm) |
|||
|
Long Term |
Short Term |
Long Term |
Short Term |
Static |
Dynamic |
|||
|
GJFJV-2Xn |
1.6*3.3 |
6.0 |
80 |
160 |
100 |
500 |
15D |
20D |
|
GJFJV-2Xn |
1.8*3.7 |
7.0 |
80 |
160 |
100 |
500 |
15D |
20D |
|
GJFJV-2Xn |
2.0*4.1 |
8.0 |
100 |
200 |
100 |
500 |
15D |
20D |
|
GJFJV-2Xn |
2.4*5.0 |
11.0 |
120 |
240 |
100 |
5000 |
15D |
20D |
|
GJFJV-2Xn |
2.8*5.7 |
14.0 |
160 |
300 |
100 |
500 |
15D |
20D |
|
Operating and Storage Temperature |
-40℃～+70℃ |
|||||||
|
Packing and Reel Length |
Standard wooden drum with protection. Standard reel length: 2/3 km/reel, other length is also available |
|||||||
Note: Xn is fiber optic model and D is the diameter of optical cable
