Description

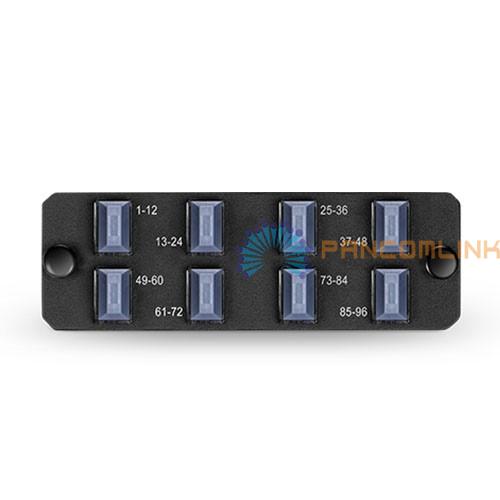

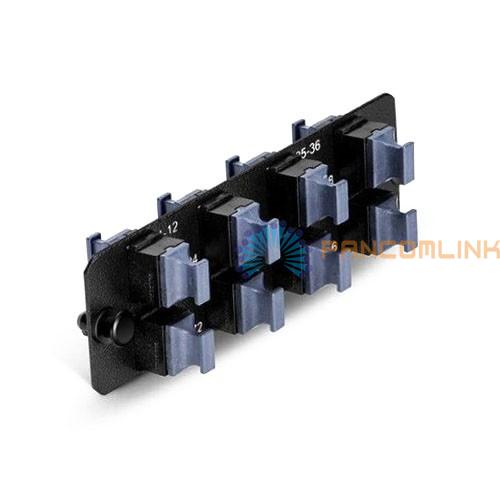

● MTP/MPO Patch Panel
LGX based rack mount panels for 19” and 23” racks, premises wall mount and NEMA rated outside plant panels. The panels can be configured to be patched and spliced. The product line also includes a complete line or offering of MTP/MPO module cassettes splitting to SFP+, QSFP+, CFP+ and CXP.

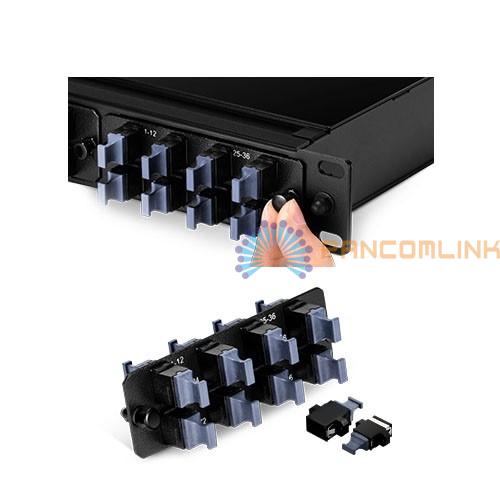

PancomLink's high density series patch panels offer an extra slot that accepts up to four adapter panels or MTP/MPO cassettes in the 1RU footprint. This design has been accomplished by staggering the mounting ears. The HD patch panels are ideal for high fiber count applications and will fit into any standard 19” or 23” rack by rotating the panel’s mounting ears.
● Features:
► Factory terminated & tested with guaranteed quality;
► High density to dramatically save space;
► Optimize network performance;
► The best solution covers all fiber optic cabling requirements in all areas of Data Center.
● Application:
►Data center, pre-terminated installation;
►Telecommunication networks;
►Storage area networking fiber channel;
►High density architectures.
● Specification:
|
Dimensions and Capability |
||
|
Total Fiber Count |
48/72/96/144/192/288/576 Cores...(Customized) |
|
|

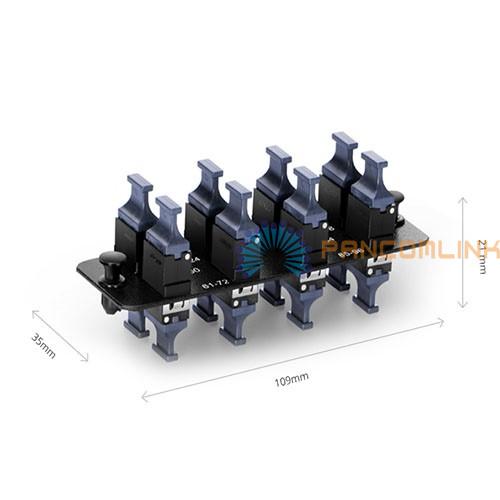

Dimensions |
1U/2U/3U/4U (19”) |
|
|
Fiber Optic Mode |
SM, OM1, OM2, OM3, OM4 |
|
|
Insertion Loss |
MTP/MPO Elite (MM) ≤ 0.35dB |
LC ≤ 0.3dB |
|
MTP/MPO (MM) ≤ 0.50dB |
||
|
MTP/MPO Elite (SM) ≤ 0.35dB |
||
|
MTP/MPO (SM) ≤ 0.7dB |
||
|
Return Loss |
MTP/MPO Elite (MM) ≥ 20dB |
LC ≥ 35dB-60dB |
|
MTP/MPO (MM) ≥ 20dB |
||
|
MTP/MPO Elite (SM) ≥ 60dB |
||
|
MTP/MPO (SM) ≥ 60dB |
||
|
Technical Specification |
||
|
Front Adapter Type |
LC, SC, ST... |
|
|
Front Fiber Count |
8/12/24 Cores LC (as reference) Duplex/Quad |
|
|
Rear Adapter Type |
MTP/MPO |
|
|
Rear Fiber Count |
8/12/24 Cores MTP/MPO |
|
|
Fiber Bend Radius |
≥ 40mm |
|
|
Material |
Cold Rolled Steel or Aluminum |
|
|
Operation Conditions |
||
|
Operating Temperature |
-20℃ -- +60℃ |
|
|
Storage Temperature |
-40℃ -- +70℃ |
|
|
Humidity |
90% at 30℃ |
|
|
Air Pressure |
70KPa-106KPa |
|

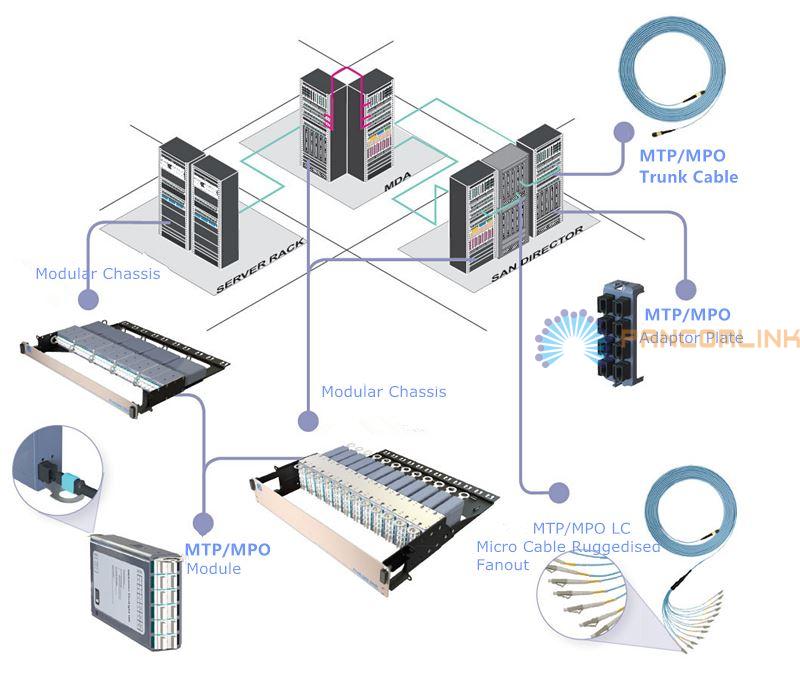

● The Application of High Density MTP/MPO Cabling System :
