Description

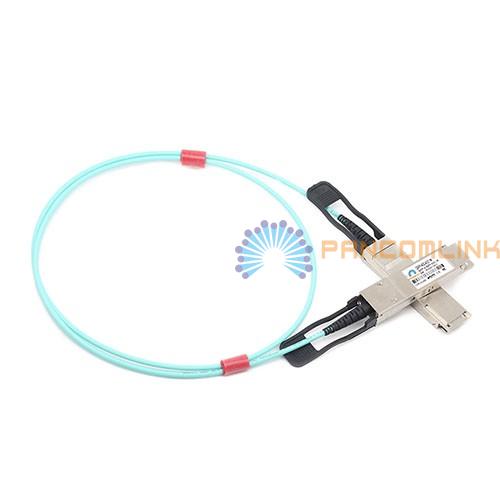

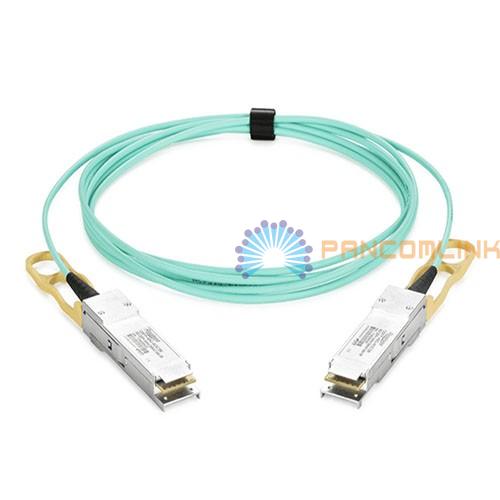

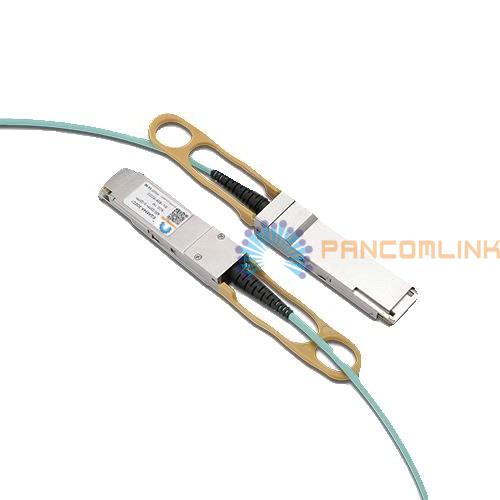

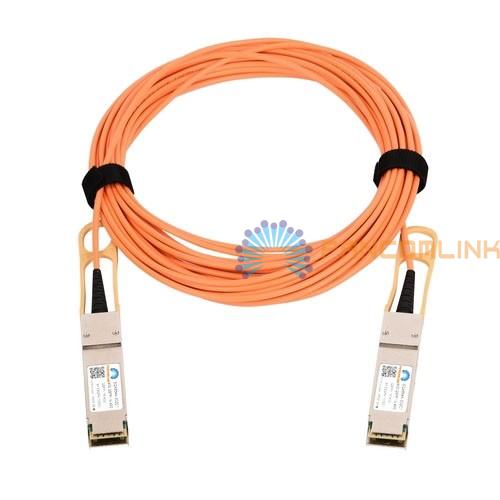

● 40G QSFP+ to QSFP+ AOC Cable:
AOC Active Optical cables offer a flexible way to connect within racks and across adjacent racks. AOCs support farther inter-rack distances. AOCs are much thinner and lighter than DACs, which makes cabling easier. Active optical cables enable efficient system airflow, which is critical in high-density racks. PancomLink offers a wide range of products for 1m to 100m reaches, in CXP, QSFP28, QSFP, SFP28, SFP+ form factors and data rates of 10G~120G.
QSFP+ Active Optical Cable (AOC) is a high performance, low power consumption integrated cable for short-range multi-lane data communication and interconnect applications, supporting 40G Ethernet, fiber channel. It is compliant with the QSFP+ MSA and IEEE P802.3ba 40GBASE-SR4. It integrates four data lanes in each direction with 40 Gb/s aggregate bandwidth.
● Features:
• 40GBase-AOC
• 4 independent full-duplex channels
• Up to 12.5Gbps data rate per channel
• QSFP MSA compliant
• Up to 100m transmission over OM3 MMF
• Operating case temperature: 0ºC~70ºC
• Single 3.3V power supply
• Typical 0.8W operation power each terminal
• RoHS compliant
• Infiniband SDR/DDR/QDR
• 2/4/8G Fiber Channel
● Application:
• 40G Ethernet, 10GEthernet
● Order Information:
|
Part Number |
Description |
Data Rate |
Length |
Cable Type |
BER |
|
40GBASE QSFP+ AOC Cable, 1-Meter (OM3 MMF) |
40Gbps |
1 m |
OM3 MMF |
< 10-12 |
|
|
40GBASE QSFP+ AOC Cable, 1.5-Meter (OM3 MMF) |
40Gbps |
1.5 m |
OM3 MMF |
< 10-12 |
|
|
40GBASE QSFP+ AOC Cable, 5-Meter (OM3 MMF) |
40Gbps |
5 m |
OM3 MMF |
< 10-12 |
|
|
40GBASE QSFP+ AOC Cable, 10-Meter (OM3 MMF) |
40Gbps |
10 m |
OM3 MMF |
< 10-12 |
|
|
40GBASE QSFP+ AOC Cable , 15-Meter (OM3 MMF) |
40Gbps |
15 m |
OM3 MMF |
< 10-12 |
|
|
40GBASE QSFP+ AOC Cable , 20-Meter (OM3 MMF) |
40Gbps |
20 m |
OM3 MMF |
< 10-12 |
|
|
40GBASE QSFP+ AOC Cable , 30-Meter (OM3 MMF) |
40Gbps |
30 m |
OM3 MMF |
< 10-12 |
|
|
40GBASE QSFP+ AOC Cable , 50-Meter (OM3 MMF) |
40Gbps |
50 m |
OM3 MMF |
< 10-12 |
|
|
40GBASE QSFP+ AOC Cable , 100-Meter (OM3 MMF) |
40Gbps |
100 m |
OM3 MMF |
< 10-12 |
|
|
QSFP+(40Gb/s) to 4x SFP+(10Gb/s) AOC Cable, 5-Meter |
40Gbps |
5 m |
OM3 MMF |
< 10-12 |
|
|
QSFP+(40Gb/s) to 4x SFP+(10Gb/s) AOC Cable, 10-Meter |
40Gbps |
10 m |
OM3 MMF |
< 10-12 |
