Description
● PDLC Outdoor Waterproof Patch Cable:
PDLC Outdoor Waterproof Fiber Patch Cable has standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. As well, it has the functions of waterproof, dustproof etc. PDLC fiber patch cord is widely used in FTTA, Base station, and the outdoor waterproof condition.
● Features:
• Standard DLC connector, well connected with standard LC adapter
• Available Single mode and Multimode
• IP67 water and dust protection
• Compact design

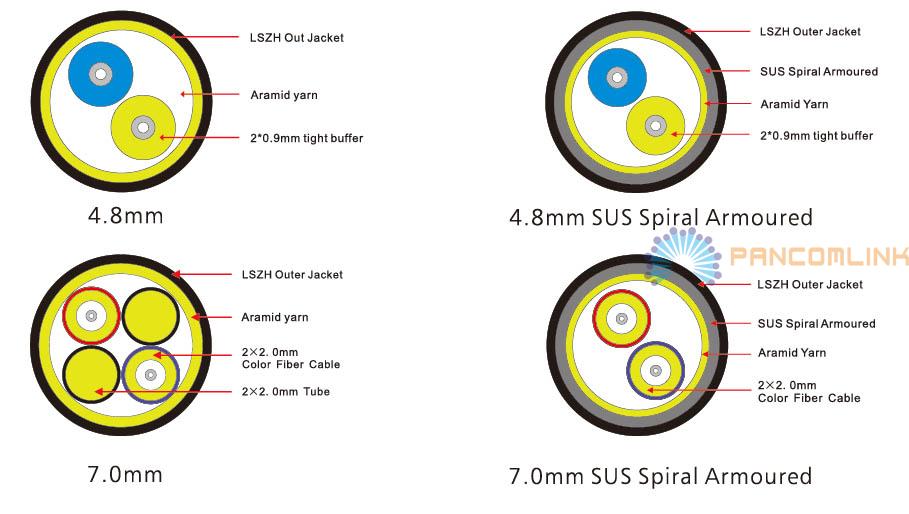

• Cable diameter 3.0mm, 4.0mm, 7.0mm or customized
• Broad temperature range and wide range of indoor and outdoor cables
• Easy Operation, reliable and cost-effective installation

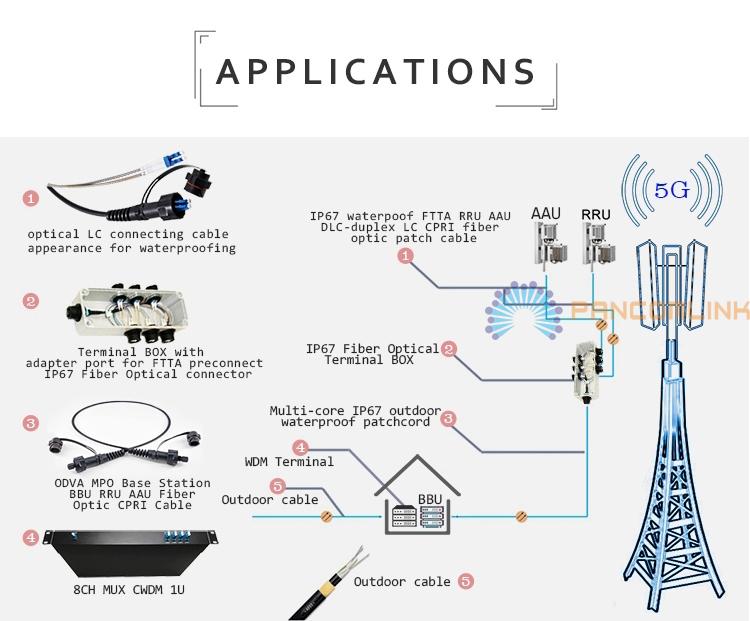

● Application:
• Multi-purpose Outdoor
• For connection between distribution box and RRH
• Deployment in Remote Radio Head cell tower applications
● Cable Parameter:
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥35dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
