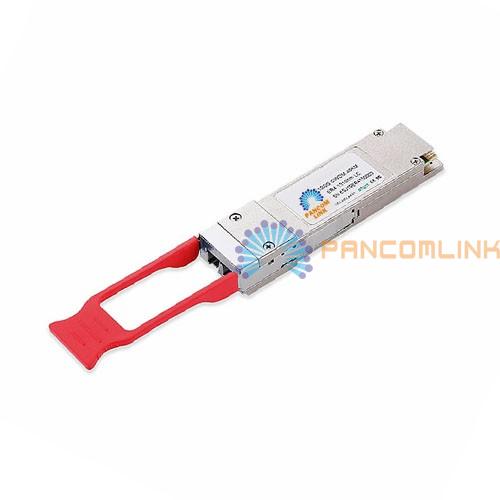

100G CWDM QSFP28 ER4 1310nm 30KM LC Optical Transceiver

Description

● 100G QSFP28 Optic Transceiver:

QSFP28 SR4/QSFP28 100G IR4/100GBASE-LR4 QSFP28 Optical transceiver module are designed for use in 100 Gigabit Ethernet links. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP28 SR4/LR4 module receptacle.

● Features:

• Single +3.3V power supply

• 4 independent full-duplex channels

• Hot Pluggable QSFP form factor

• Built-in digital diagnostic functions

• Up to 28Gb/s data rate per channel, up to 112Gb/s aggregate bit rates

• Compliant to RoHS-6, QSFP28 MSA, IEEE 802.3 100GBASE-SR4/LR4 or 100G CWDM4 etc

• Transmission distance up to 100m on MMF OM4 and 40km over SMF

• Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C

● Application:

• Rack to Rack

• Data Center

• Infiniband QDR, DDR and SDR application

• 100G Ethernet

● Order Information:
