Description

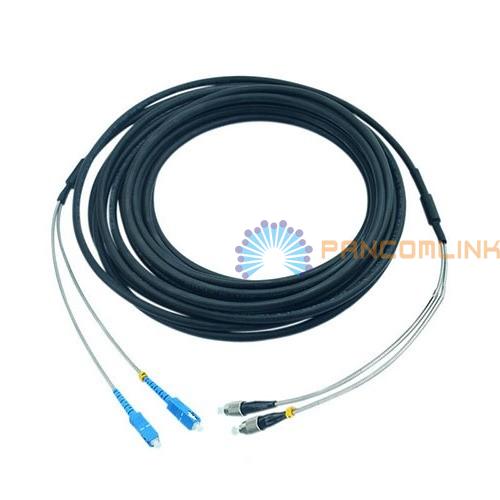

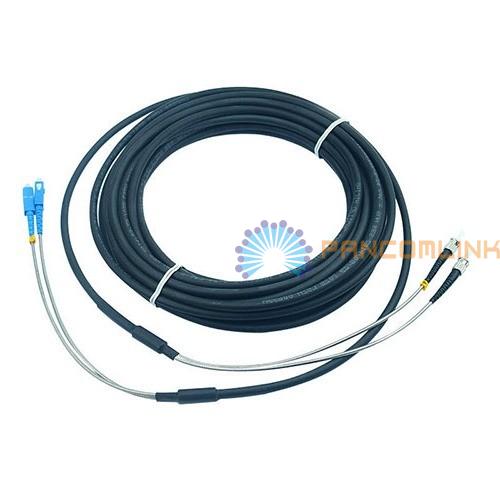

● CPRI FTTA Outdoor Patch Cable:
CPRI fiber patch cable is the ideal design for outdoor fiber cable applications. Such products can meet the FTTA (fiber to the Antenna) program requirements for outdoor environment conditions. Especially in the 3G, 4G, Base station (BBU to RRU). CPRI fiber patch cables are rapidly becoming the standard connect or interface.
CPRI FTTA Outdoor Patch Cable available in 2 core and 4 core combinations can carry control or message signals with minimum loss. CPRI FTTA Outdoor Patch Cable is designed for the quick and iterative distributing & retrieving under harsh environment. CPRI FTTA Outdoor Armored Patch Cord is armored with SUS flexible spring tube, portable, flexible, oil-resistant, rubbing-resistant, flame retardant, high tension load and wide operating temperature range. Its applications include quick deployment, military, mining, oil field, TV broadcasting, and communication emergency repair. Ideal for outside cabling application-Armored steel tape for rodent resistance-Pressure resistance-Fully water-blocked-Moisture blocking loose tubes-Fiber 2 core or 4 core.
Common Public Radio Interface (CPRI) standard defines an interface between Radio Equipment Control (REC) and Radio Equipment (RE). Oftentimes, CPRI links are used to carry data between cell sites and base stations.The purpose of CPRI is to allow replacement of a copper or coax cable connection between a radio transceiver (used example for mobile-telephone communication and typically located in a tower) and a base station (typically located at the ground nearby), so the connection can be made to a remote and more convenient location. This connection (often referred to as the Fronthaul network) can be a fiber to an installation where multiple remote base stations may be served. This fiber supports multi mode communication and doesn’t support single mode communication. The fiber end is connected with the transceiver device called Small form-factor pluggable transceiver.
● Features:
►Easily add/install jumper cables for a future expansion;
►Low insertion loss and added loss;
►Height of attenuation;
►Flexibility with small bending radius and excellent cable routing properties;
►End-face geometry and quality superior than IEC and Telcordia standards;
►The material in the jumper cables are all-weather and UV-resistant;
►Mechanical performance: IEC 61754-20 standard;
►RoHS and REACH materials compliant.

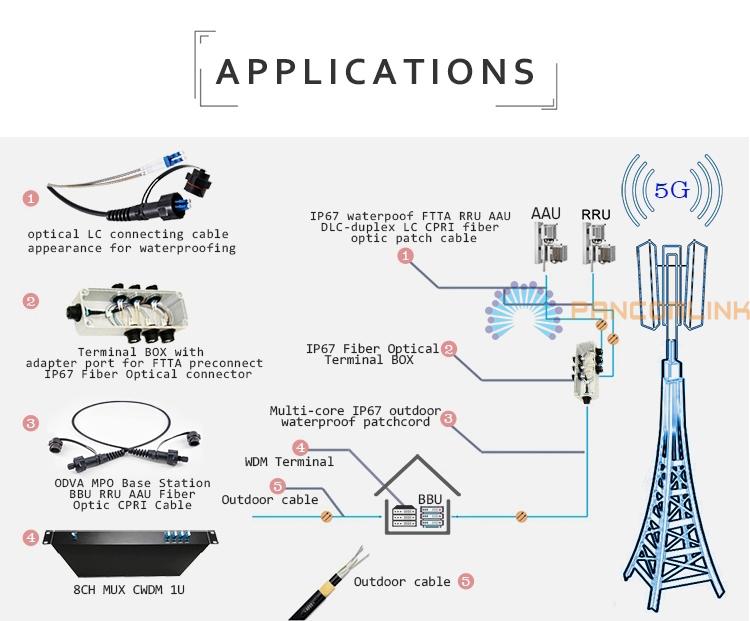

● Application:
►Multi-purpose Outdoor, FTTA & FTTH;
►Deployment in Remote Radio Head cell tower applications;
►Base station, BTS installation, BBU to RRU;
►Indoor/Outdoor building cabling;
►Harsh environments application;
►Long haul networking;
►Direct burial and aerial lashing.
● Specification:
|
Item |
Parameter |
|
|
Connector Type |
LC/SC/ST/FC (Customized) |
|
|
Fiber Mode |
Singlemode/Multimode |
|
|
Fiber Type |
Singlemode |
Multimode |
|
Insertion Loss (Typical) |
≤ 0.12dB |
≤ 0.12dB |
|
Insertion Loss (Max) |
≤ 0.3dB |
≤ 0.3dB |
|
Return Loss |
≥ 50dB(UPC) /≥ 60dB(APC) |
≥ 35dB |
|
Wavelength |
SM: 1310/1550nm, MM: 850/1310nm |
|
|
Fiber Count |
2 or 4 Cores |
|
|
Cable Dimension |
4.8mm or 7.0mm |
|
|
Cable Length |
Customized |
|
|
Jacket Material/ Color |
LSZH/PE, Black in Outer Jacket Color |
|
|
Durability |
(1000 matings) ≤ 0.2dB |
|
|
Interchangeability |
≤ 0.2dB |
|
|
Crush Load |
Long Term |
Short Term |
|
300N/100mm |
1000N/100mm |
|
|
Min. Bend Radius (mm) |
Dynamic |
Static |
|
20D |
10D |
|
|
Operating Temperature |
-40℃-- +75℃ |
|
|
Storage Temperature |
-45℃-- +85℃ |
|

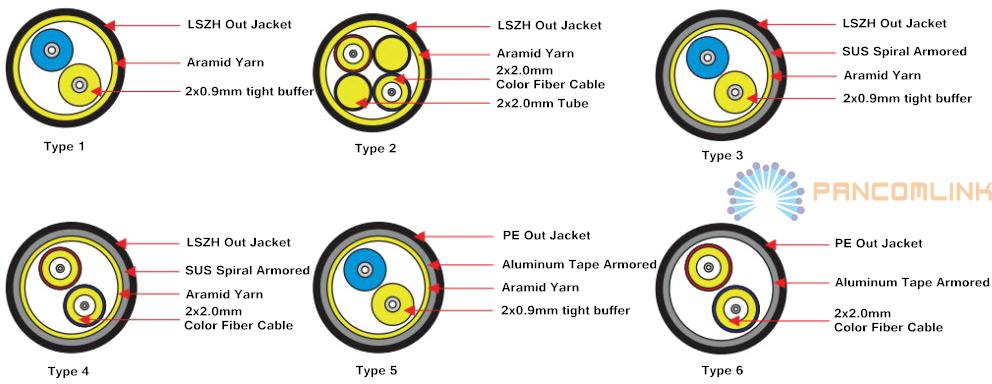

Cable Structure:
Type1: LSZH+Kevlar+2×0.9mm Cable (4.8mm/7.0mm);
Type2: LSZH+ Kevlar+2×2.0mm Cable +2×2.0mm Tube (7.0mm);
Type3: LSZH+Armoured+Kevlar+2×0.9mm Cable (4.8mm or 7.0mm);
Type4: LSZH+Armoured+Kevlar+2×2.0mm Cable (7.0mm);
Type5: PE+AL Armoured+Kevlar+2×0.9mm Cable (4.8mm or 7.0mm);
Type6: PE+AL Armoured+Kevlar+2×2.0mm Cable (7.0mm);
