Description
● Indoor Armored Patch Cable:

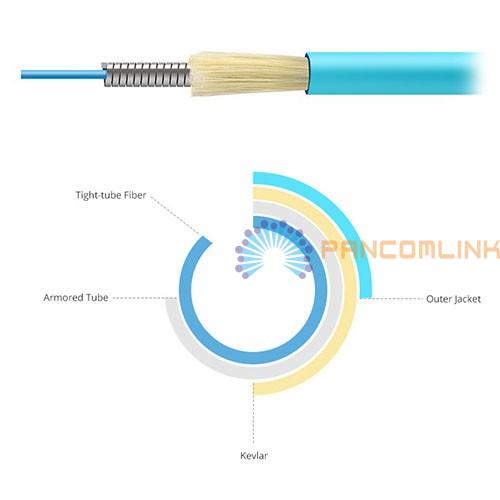

Indoor Armored Patch Cable has a helical stainless steel tape over a buffered fibre surrounded by a layer of aramid and stainless steel mesh with an outer jacket. Its rugged shell with steel and kevlar stronger than common fiber optic cable with a higher rated range of operating temperature. Although this cable contains metal, it is still light weight and flexible with about an 8 inch bend radius. Indoor Armored Patch Cable is specifically designed for customer premises, central offices and indoor harsh environments or heavy traffic areas which require extra protection.

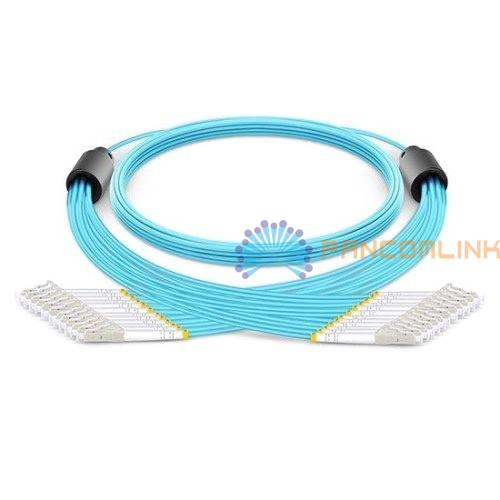

Indoor Armored Patch Cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents. PancomLink offers Indoor Armored Patch Cable in many configurations, including SM/MM fiber, simplex, duplex and multicore, LC, SC, FC, ST, E2000 connectors with UPC & APC polish, single armored & double armored and lengths etc.
● Features:

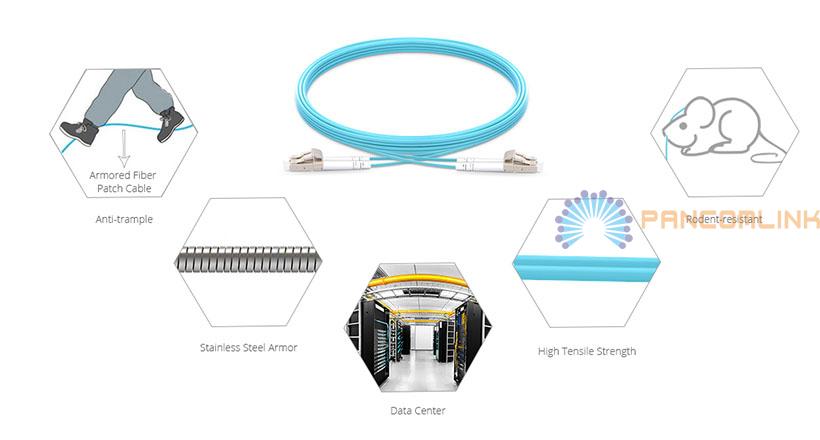

►High anti-tensility; High anti-pressure;
►High bent resistance; Anti-bite from rodent animals;
►Flexible, convenient to connection and easy to deploy;
►Deploy easily and reduce cost of wiring.
● Application:
►FTTH, CATV, LAN and WAN;
►Optical active component and equipment;
►Test equipment and military industry;
►Fiber optic communication networks.
● Specification:
|
Item |
Indoor Armored Patch Cable |
||
|
Connector Type |
LC, SC, FC, ST, MU, E2000, MTRJ (Customized) |
||
|
Fiber Type |
OM1, OM2, OM3, OM4, OS2 |
||
|
Fiber Mode |
Singlemode |
Multimode |
|
|
Polish Type |
APC |
UPC |
PC |
|
Insertion Loss (Max) |
≤0.3dB |
≤0.3dB |
≤0.3dB |
|
Return Loss (Min) |
≥60dB |
≥50dB |
≥35dB |
|
Fiber Core |
1, 2, 4, 6 to 12 Core (Customized) |
||
|
Cable Diameter |
3.0mm |
||
|
Jacket Material |
PVC, LSZH, OFNP (Customized) and stainless steel tube |
||
|
Outer Jacket Color |
Blue (SM), Aqua (OM3/OM4), Gray (OM1/OM2) |
||
|
Length |
1m, 2m, 5m, 10m...30m (Customized) |
||
|
Length Tolerance |
0-5M: +5cm/-0cm; 5-100m: +10cm/-0cm |
||
|
Strength Member |
30D (Dynamic/Static) |
||
|
Wavelength |
SM: 1310/1550nm, MM: 850/1300nm |
||
|
Repeatability |
≤0.1dB |
||
|
Durability |
≤0.2dB (500 times mating) |
||
|
Tensile Strength |
≥100N(long term)/200N (short term) |
||
|
Crush Resistance |
3000N/100mm (long term), 5000N/100mm (short term), |
||
|
Operating Temperature |
-40 to +75 °C |
||
|
Storage Temperature |
-45 to +85 °C |
||
