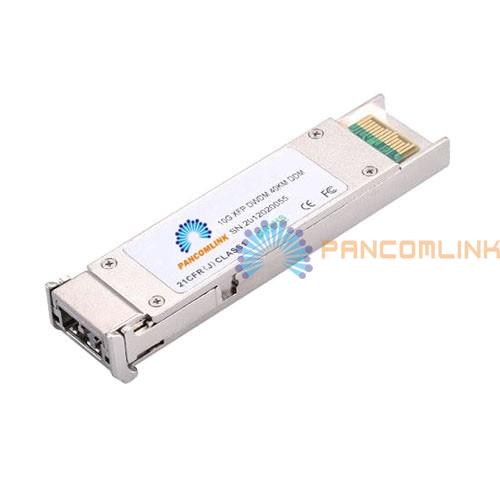

10G DWDM XFP 40KM LC Optic Transceiver

Product Item：PCL-10G-DWDM-XFP-LC-40KM

Description

● 10G DWDM XFP Optic Transceiver:

10G DWDM XFP is a series of optical transceiver modules operating at DWDM C-band (100GHz channel spacing) wavelengths on Single-Mode Fiber (SMF). They are designed for use in 10-Gigabit Ethernet, 10G Fibre Channel, SONET/SDH OC-192/STM-64, and OTN OTU2e links, compliant with the XFP MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant.

● Features:

• Hot-pluggable XFP form factor
• Supports date rates up to 11.3Gb/s

• Low power dissipation

• Duplex LC receptacles

• Single 3.3V power supply

• RoHS-6 compliant (lead free)

• DWDM TUNABLE laser optional

• Built-in digital diagnostic functions

•Temperature-stabilized DWDM EML Transmitter

• Can be used with single fiber DWDM system and dual fiber DWDM system

• Available in all C-Band Wavelengths on the 100GHz or 50GHz DWDM ITU Grid

• Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C

● Application:

• SONET OC-192 / SDH STM-64

• OTN ITU-T G.709

• 10GBASE-SR/LR/ER/ZR Ethernet

• 10X/8X/4X/2X/1X Fibre Channel

• DWDM Networks

● Order Information:

10Gbps DWDM XFP Transceiver
Description	Data Rate (Gbps)	Distance	Fiber	Tx Power (dBm)	Rx Sens (dBm)	Interface	Temp.	DDM
100GHz DWDM SFP+
10G DWDM XFP 40KM 100Ghz	9.95~11.3	40km	SMF	0～5	-16	Duplex LC	0 to 70℃	Yes
10G DWDM XFP 80KM 100Ghz	9.95~11.3	80km	SMF	0～5	-23	Duplex LC	0 to 70℃	Yes
10G DWDM XFP 100KM 100Ghz	9.95~11.3	100km	SMF	0～5	-24	Duplex LC	0 to 70℃	Yes
100GHz DWDM Tunable SFP+
10G DWDM T XFP 40KM 100Ghz	9.95~11.3	40km	SMF	0～5	-16	Duplex LC	0 to 70℃	Yes
10G DWDM T XFP 80KM 100Ghz	9.95~11.3	80km	SMF	0～5	-23	Duplex LC	0 to 70℃	Yes
50GHz DWDM Tunable SFP+
10G DWDM T XFP 40KM 50Ghz	9.95~11.3	40km	SMF	0～5	-16	Duplex LC	0 to 70℃	Yes
10G DWDM T XFP 80KM 50Ghz	9.95~11.3	80km	SMF	0～5	-23	Duplex LC	0 to 70℃	Yes
