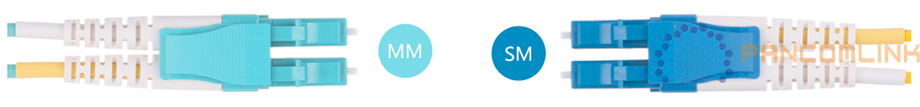

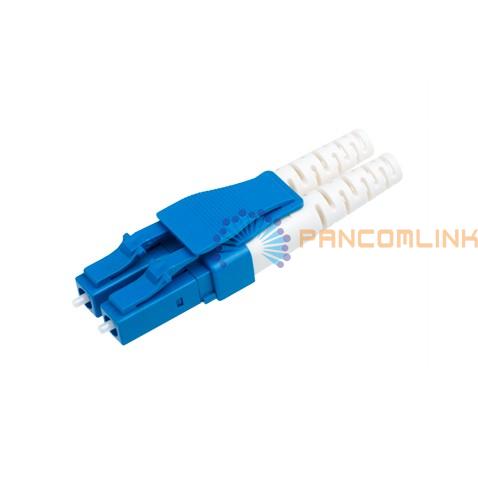

LC SM/MM Duplex SLL Connector

Description

● Description:

Fiber optic connector has a screw thread fitting into the adapter to provide a secure connection. The connector is comprised of a nickel plated brass body and a ceramic ferrule/spring/crimp barrel assembly plus a crimp-over sleeve and rubber boot.

Fiber optic connector, or optical fiber connector, is a component to terminate the end of fiber optical cable, and enables quicker connection and disconnection than fiber splicing. It mechanically couples and aligns the fiber cores to make light pass successfully. Therefore, fiber optic connector has an important impact on the fiber optic transmission reliability and the performance of the system. Quality optical connectors lose very little light due to reflection or misalignment of the fibers.

LC duplex SLL connector is specially designed to provide low insertion and back reflection or misalignment of the fibers, which is a common used connector applied with zipcord cable. Comparing to the conventional duplex connector, the design is more compact, an extended latch makes the releasing easier. The total height doesn’t exceed the adapter, and easy switch the polarity.

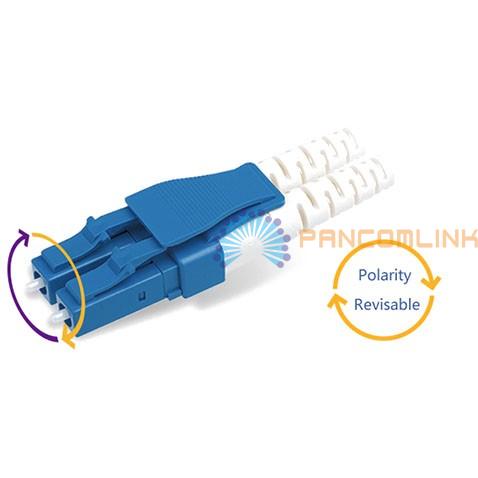

Polarity Switchable

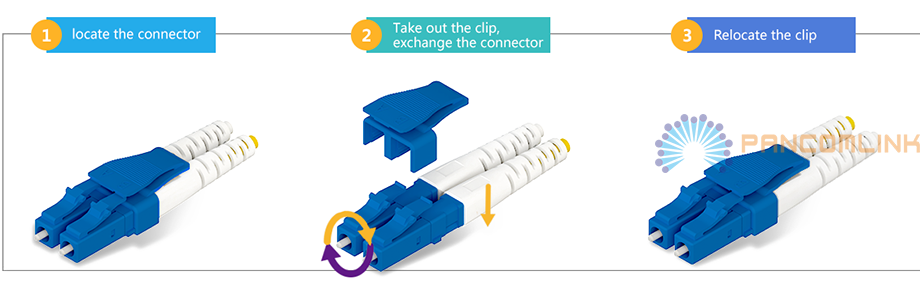

Simply switch the plugs of the two fibers connectors at the same time to achieve a fast and easy polarity change without any tools.

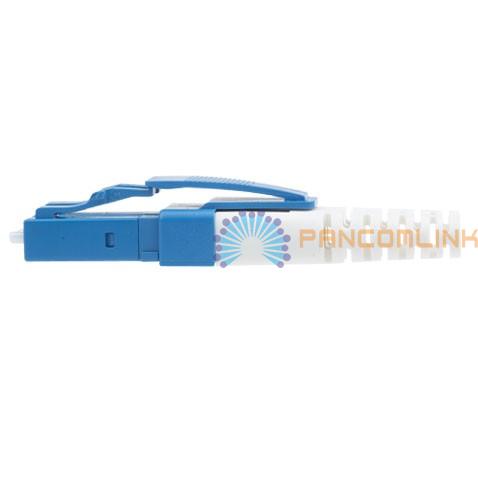

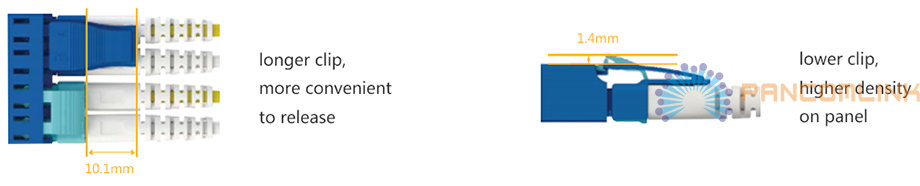

Longer and Lower Clip, Easier to Release

Comparing to the traditional two single connectors, this duplex connectors need one press only to achieve double releasing. The overall height does not exceed the height of the compact adapter, and an extended latch makes the releasing easier.

Low Cost and Various Boot Type

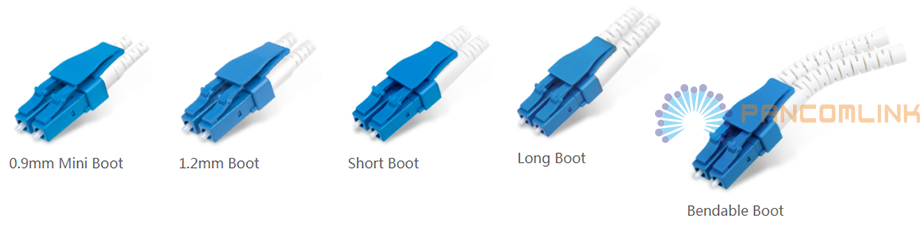

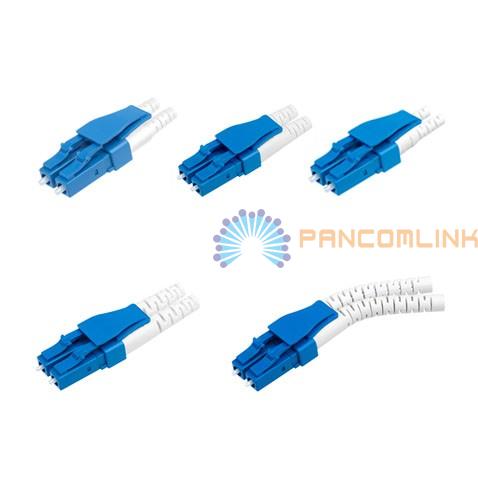

LC duplex SLL connector with boots are suitable for 1.6-3.0mm fiber cable diameter, and boot type is optional as below:

● Features:

• An extended press latch that easy for releasing

• Compact height not exceed the adapter

• Easy polarity switchable

• PC/APC and Various colors available

• Various boots available

• Applied to 0.9/1.2/2.0/3.0mm cable

• IEC61754-20 and GR-326-Core complaint

● Application:

• Telecom network

• Ethernet network

• Optical communication equipment

● Specification:
