Description

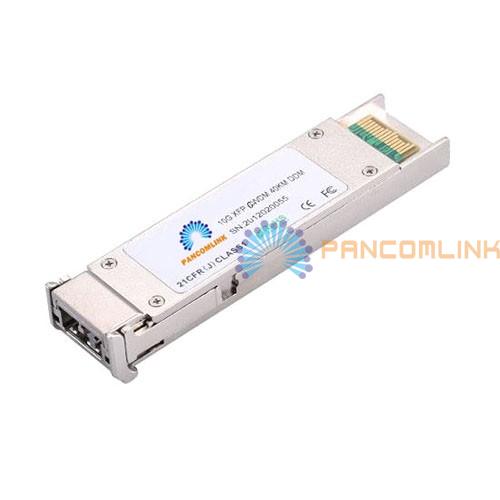

● 10G CWDM XFP Optic Transceiver:
10G CWDM XFP is a series of optical transceiver modules operating at 1270-1610nm CWDM wavelengths on Single-Mode Fiber (SMF). They are designed for use in 10-Gigabit Ethernet, 10G Fibre Channel, SONET/SDH OC-192/STM-64, and OTN OTU2e links, compliant with the XFP MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant.
● Features:
• Hot-pluggable XFP form factor
• Supports date rates up to 11.3Gb/s
• Low power dissipation
• Duplex LC receptacles
• Single 3.3V power supply
• Compliant to IEEE 802.3ae 10GBASE
• Class 1 Laser International Safety Standard IEC-60825 Compliant
• Uncooled 18-λ CWDM DFB/cooled EML LD: from 1270nm to 1610nm
• Can be used with single fiber CWDM system or dual fiber CWDM system
• Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
● Application:
• SONET OC-192/SDH STM-64
• OTN ITU-T G.709
• 10GBASE-SR/LR/ER/ZR Ethernet
• 10X/8X/4X/2X/1X Fibre Channel
• CWDM Networks
● Order Information:
|
10Gbps CWDM XFP Transceiver |
||||||||
|
Description |
Data Rate |
Wavelength (nm) |
Distance |
Fiber |
Tx Power (dBm) |
Rx Sens (dBm) |
Interface |
DDM |
|
10G-CWDM-XFP-XXnm-10KM |
10G |
1270~1330 |
10km |
SMF |
-4~2 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-XFP-XXnm-10KM |
10G |
1350~1450 |
10km |
SMF |
-4~2 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-XFP-XXnm-10KM |
10G |
1470~1550 |
10km |
SMF |
-4~2 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-XFP-XXnm-10KM |
10G |
1570~1610 |
10km |
SMF |
-4~2 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-XFP-XXnm-20KM |
10G |
1270~1330 |
20km |
SMF |
-4~2 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-XFP-XXnm-20KM |
10G |
1350~1450 |
20km |
SMF |
-4~2 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-XFP-XXnm-40KM |
10G |
1270~1330 |
40km |
SMF |
-4~2 |
-20 |
Duplex LC |
Yes |
|
10G-CWDM-XFP-XXnm-40KM |
10G |
1350~1450 |
40km |
SMF |
-4~2 |
-20 |
Duplex LC |
Yes |
|
10G-CWDM-XFP-XXnm-40KM |
10G |
1470~1610 |
40km |
SMF |
-2~3 |
-14.4 |
Duplex LC |
Yes |
|
10G-CWDM-XFP-XXnm-80KM |
10G |
1470~1610 |
80km |
SMF |
0~4 |
-24 |
Duplex LC |
Yes |
|
Operating Temperature |
0 to 70℃ |
|||||||
