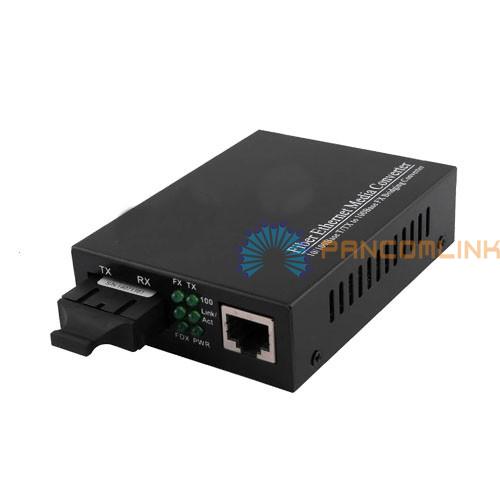

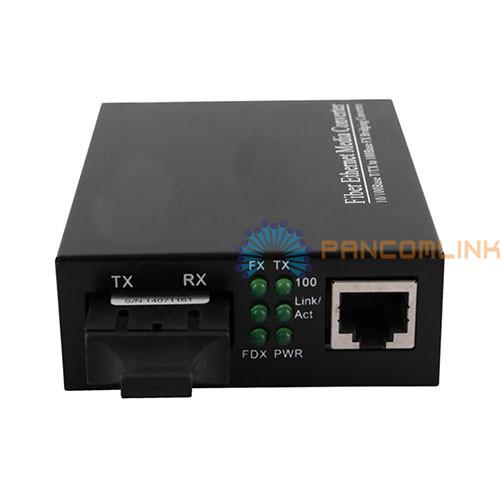

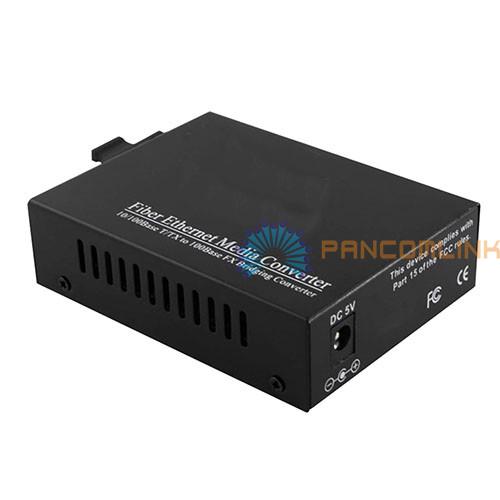

100Mb Dual Fiber Media Converter

Description

● Media Converter:

Media converter also called as fiber converter which receives data signals, sends via one media, converts the signals and then transmits the signals into another kind of media. Fiber converters can convert the signals sent from copper cable to signals that run on the fiber cable. Fiber media converters are used in the fiber optic network to transform the signals sent from fiber glass to traditional UTP cables; they are typically used in Ethernet as physical layer networking equipment.

PancomLink offers different types of switches and fiber converters like 10/100M, 10/100/1000M and 10G fiber converters, SFP fiber converters, manageable/unmanageable fiber converters, OEO fiber converters, POE fiber converters and fiber converter chassis; transmitting distance from 2km(MM) to 150km(SM) with SC or LC or FC connectors. There are two types chassis for fiber media converters, typical type is a 19-inch rack-mounted chassis, with 14 or 16 slots on it, so that it can fit 14 or 16 pieces of chassis type fiber converters. The difference is 14 slots chassis is used with standalone fiber media converters, while 16 slots chassis is used with card type fiber optic media converters, and 16 slots chassis is bigger size.

10/100M Media Converters are designed to transmit and receive data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate.

● Features:

● SC, FC, ST and SFP optical interface;

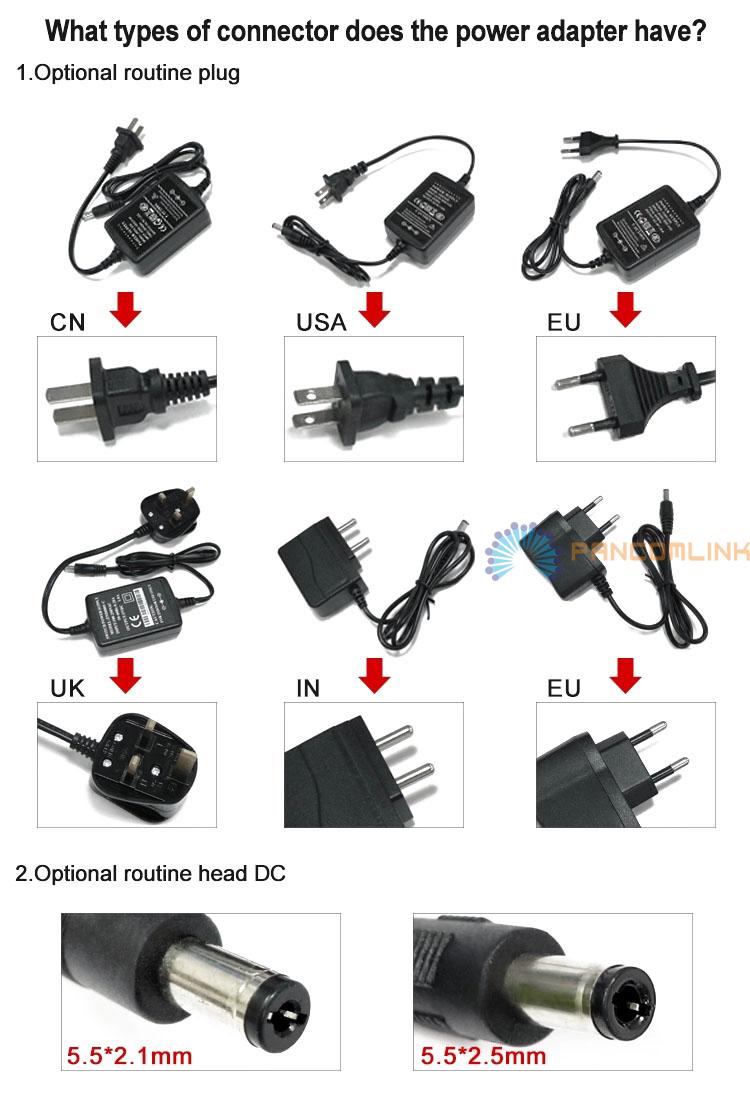

● External power adapter;

● Auto-negotiation support on RJ45 port;

● Auto MDI/MDI-X support on RJ45 port;

● Auto-Negotiation of duplex (HDX/FDX) on RJ45 port;

● Distances up to: 2km Multimode, 120km Singlemode;

● Status LED's for TX, FX LINK/ACT, POWER, 100M to easily monitor network status;

● Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data;

● Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards.

● Application:

● LAN/WAN;

● Access Control Systems;

● 10/100 Mbps Ethernet;

● High Speed Computer Links.

● Specification:
