Description
● 8G SFP+ Optic Transceiver:
8G SFP+ is a series of optical transceiver modules designed for use in 8G/16G Fiber Channel links. They are compliant with the SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant.
● Features:
● RoHS-6 compliant
● Duplex LC Interface
● Low power dissipation
● Single +3.3V power supply
● Supports data rates up to 8.5Gb/s
● Built-in digital diagnostic functions
● Support Multi-rate for 8G/4G/2G/1G FC
● Transmission distance up to 100m on MMF OM3 and 80km over SMF
● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
● Application:
● 8X/4X/2X/1X FC at 8.5/4.25/2.125/1.0625Gbps
● Order Information:
|
Description |
Data Rate |
Wavelength |
Distance |
Fiber |
Tx Power (dBm) |
Rx Sens (dBm) |
Interface |
Temp. |
DDM |
|

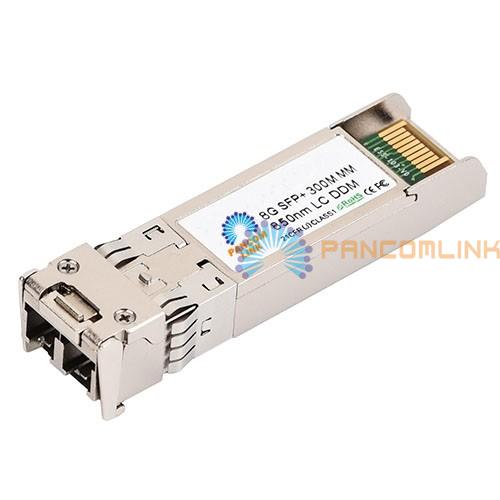

8G SFP+ MM850nm 300m |
8G |
850nm |
300m |
MMF |
-5～-1 |
-11 |
Duplex LC |
0 to 70℃ |
Yes |
|
8G SFP+ SM1310nm 10Km |
8G |
1310nm |
10km |
SMF |
-5～0 |
-15 |
Duplex LC |
0 to 70℃ |
Yes |
|
8G SFP+ SM1310nm 20Km |
8G |
1310nm |
20km |
SMF |
-4～0 |
-15 |
Duplex LC |
0 to 70℃ |
Yes |
|
8G SFP+ SM1550nm 40Km |
8G |
1550nm |
40km |
SMF |
0～3 |
-17 |
Duplex LC |
0 to 70℃ |
Yes |
|
8G SFP+ SM1550nm 60Km |
8G |
1550nm |
60km |
SMF |
0～4 |
-22 |
Duplex LC |
0 to 70℃ |
Yes |
|
8G SFP+ SM1550nm 80Km |
8G |
1550nm |
80km |
SMF |
0～5 |
-23 |
Duplex LC |
0 to 70℃ |
Yes |
