Description
● Description:

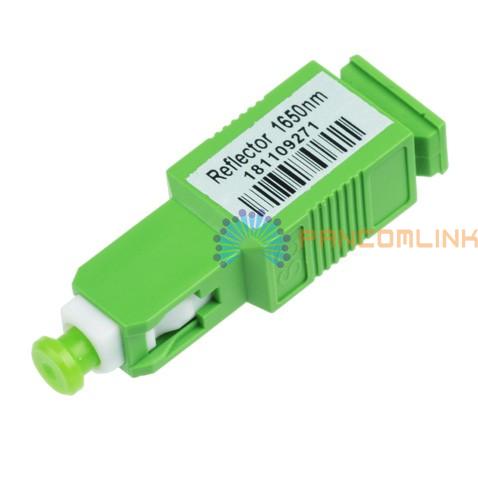

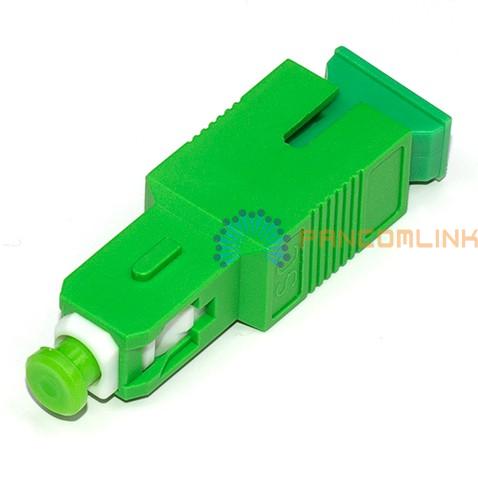

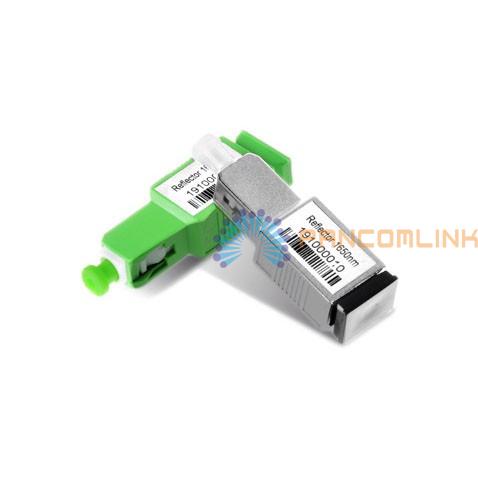

Fiber Reflector, also known as Fiber Bagging Grating Filter, is usually installed in the front of ONU of optical network. Combined with OTDR equipment, it can realize the point to point (PTP) or point to multi-point (PTMP) network monitoring of optical link, which can reflect the network abnormality quickly and accurately. It is widely applied in PON network, OTDR testing, central computer room testing and FTTC etc.
● Features:
• Low insertion loss, high reflectivity
• Easy installation
• Meets GR 910 and IEC 61754-4
• Meets GR 326 or IEC 61300-2 standards
● Application:
• PON Network
• Data Center
• OTDR Test
• FTTX

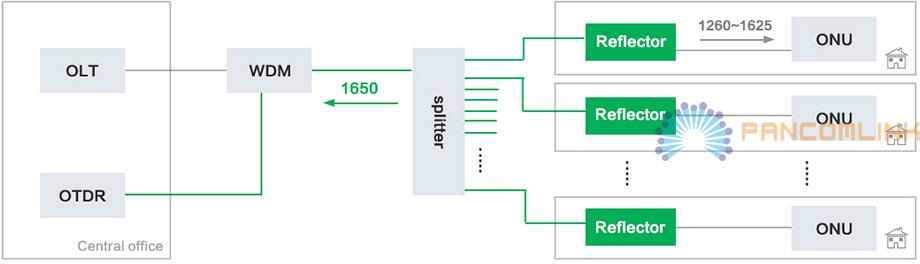

● Network Construction:
FBG Reflector is installed in the front end of optical network ONU, and the network diagnosis of FTTX is realized with OTDR equipment.

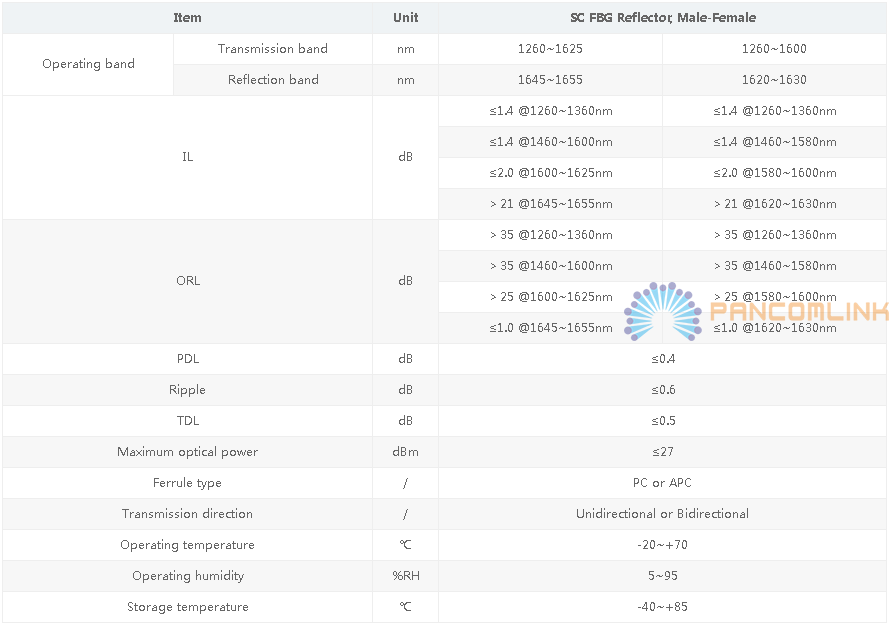

● Specification:
