● Description:

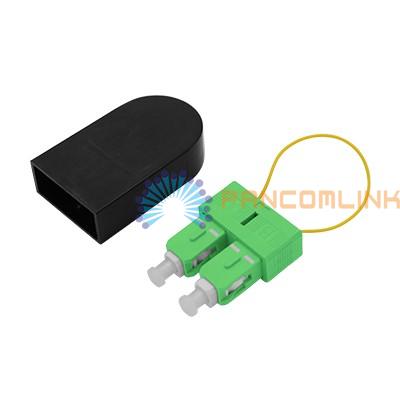

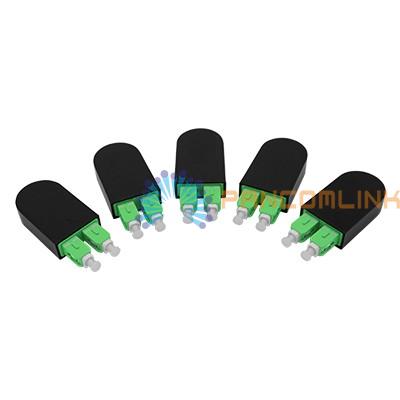

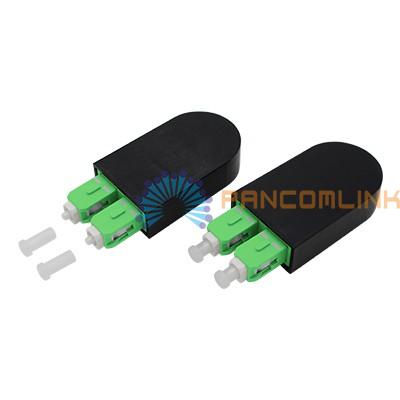

Fiber Optic Loopback is also known as loopback plug or loopback adapter, is typically used for testing the transmission capability and receiver sensitivity of network equipment. Fiber loopback provides system test engineers a simple but effective way of testing the transmission capability and receiver sensitivity of network equipment. Normally fiber optic loopback has different types of fiber connectors and fiber cable. SC, LC, MTRJ, E2000 and MPO Fiber loopback are common types, and SM and MM fiber types are optional.
● Features:
• Customized Manufactured
• Ideal for testing and diagnosing fiber-optic network equipment
• Compliant to IEC, TIA/EIA, NTT and JIS specifications
• Customized loop length and cable diameter on request
• Fiber G657.A1, G657.A2 can choose 0.9mm or 2.0mm
● Application:
• Telecom testing
• FTTX testing
• Equipment interconnection
• Device pig-tailing
• Premise networks
• Patch panel applications
• Communications connections
• Network components testing
● Specification:
|
Model |
SM |
MM |
|
|
Polish |
UPC |
APC |
PC |
|
Insertion Loss |
Typical ≤0.2dB, Maximum ≤0.3dB |
≤0.25dB |
|
|
Return Loss |
≥55dB |
≥60dB |
/ |
|
Interchangeability |
≤0.2dB |
||
|
Repeatability |
≤0.1dB |
||
|
Durability |
≤0.2dB (1000 times mating) |
||
|
Tensile Strengh |
> 10kg |
||
|
Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
||
|
Humidity |
≤0.2dB (+25+65 93 R.H.100 hours) |
||
