Description

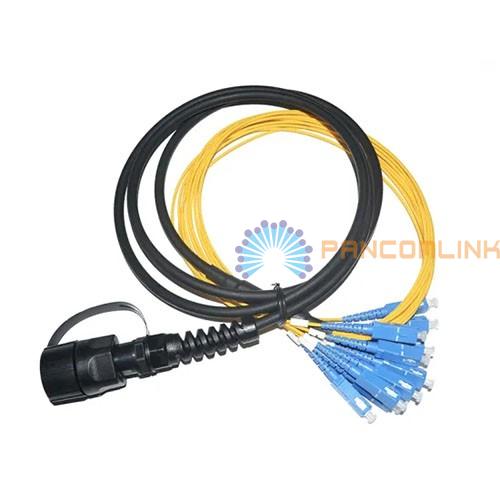

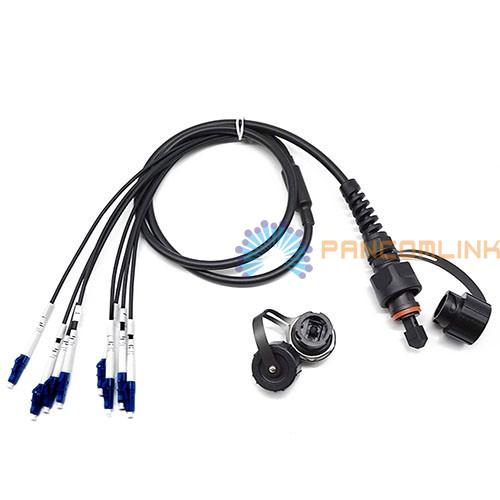

● ODVA(SC,LC,MPO) Outdoor Cable Assemblies:
Sealed Circular IP67 ODVA fiber optic patch cable assemblies provides low cost ideal solution for CATV, RRH remote radio heads, WiMax, Long Term Evolution (LTE), FTTX harsh environment connectivity. This ODVA-LCDX, ODVA-SC and ODVA-MPO is a typical outdoor use fiber cable, suitable for different temperature and weather, especially ideal for FTTA and harsh environment use. Designated the LC Series, Pancomlink offers the broadest ODVA-compliant fiber-optic connector portfolio in the industry, providing both full-metal and plastic versions of the IP67-rated interconnects. Pancomlink’s extensive ODVA-compliant product portfolio gives customers design flexibility, and ensures that FTTA systems meet telecommunication industry standards as well as harsh environment requirements. In addition, we can provide cable and plug kit assembly services to deliver a complete FTTA systems interconnect solution.
● Features:
• LC, SC or MPO connector with good repeat ability and interchangeability
• 5.0mm, 7.0mm or customized diameter
• IP67/IP68 water and dust protection
• No need special tools for assembly
• Suitable for different temperature and weather, harsh environment usage
• Intermatable to other Industrial LC adaptor per IEC 61076-3-106
• Wide range of operational temperature for outside plant -40 to +85°C

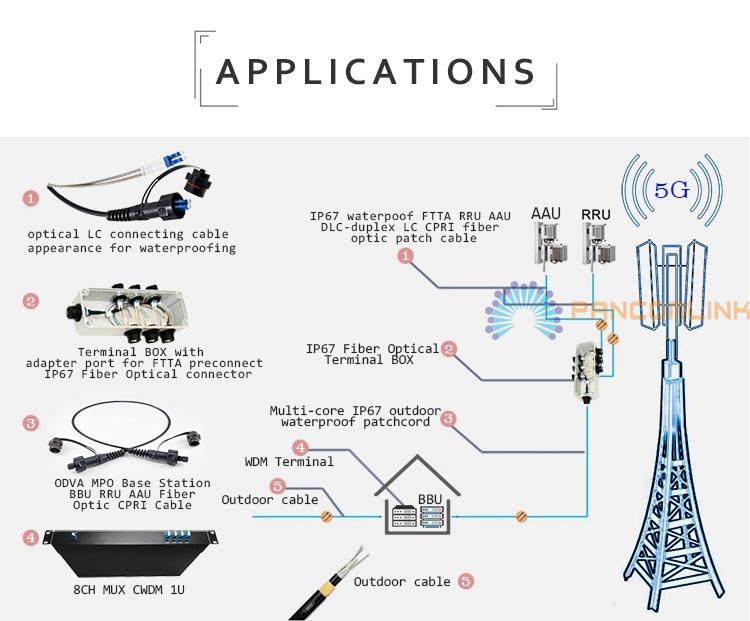

● Application:
• Multi-purpose Outdoor
• FTTA,FTTH Application
• 3G,4G,5G Base Station
• Deployment in BBU, RRU, RRH, LTE applications
● Cable Parameter:
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1dB |
≤0.3dB |
≤0.15dB |
≤0.3dB |
≤0.05dB |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥35dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
|
Model |
SM |
MM |
|
MPO/MTP Connector Fiber Count |
8, 12, 24 core |
|
|
Polish |
PC, APC |
|
|
Housing Color |
Standard (green),Elite (Yellow) |
Standard(Beige), Elite(Auqa) |
|
Insertion Loss Standard type |
less than 0.7dB |
Less than 0.5dB |
|
Insertion loss Elite type |
Less than 0.35dB |
Less than 0.3dB |
|
Return Loss |
PC >50dB, APC>60dB |
>35dB |
|
Durability (500 matings) |
less than 0.2dB |
|
|
Test Eavelength |
1310/1550nm |
850/1300nm |
|

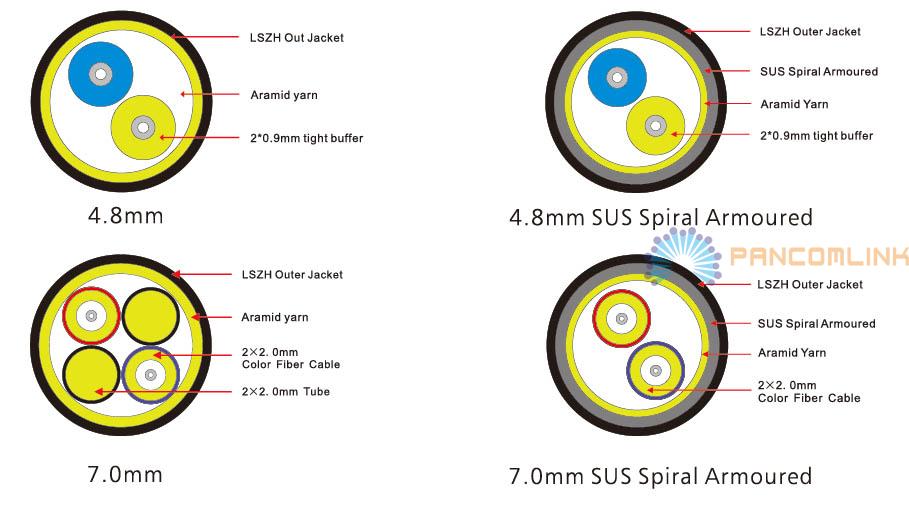

Cable OD |
5.0mm, 6.0mm, 7.0mm armored / non armored |
|
