Description

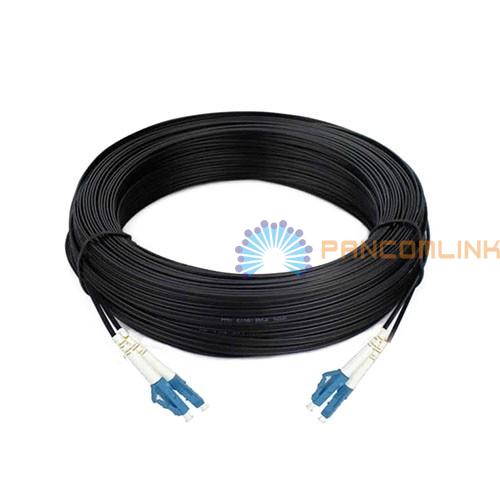

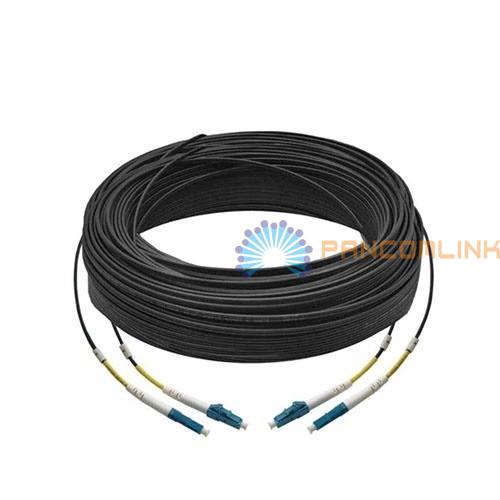

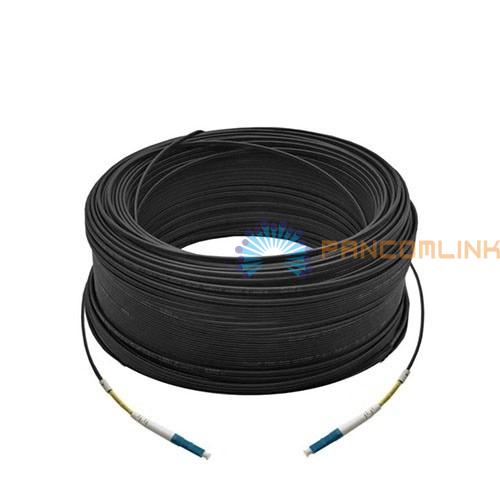

● FTTH Drop Cable Patch Cable:

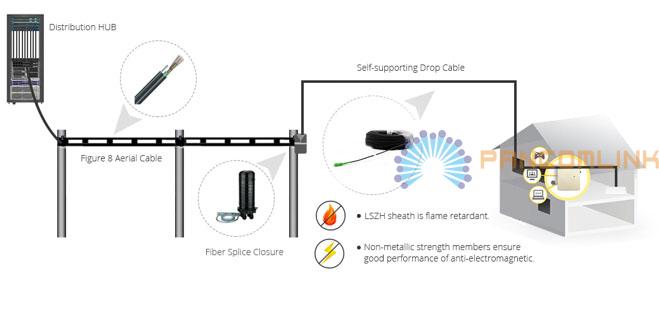

FTTH drop cable patch cable is specially for FTTH application, it can be used indoor or outdoor to connect to the end users' homes, widely applied in access networks and FTTH indoor cabling.
● Features:
►Low insertion loss and back reflection loss;
►Ferrule end surface pre-domed;
►Excellent mechanical endurance;
►Good in repeatability;
►Good in exchange;
►Green production, CE, RoHS standard.
● Application:
►Telecommunication networks;
►Optical access network;
►Data processing networks;
►Fiber optic communication networks;
►CATV, LAN, WAN, Test &Measurement.
● Specification:
|
Item |
FTTH Drop Cable Patch Cable |
|||
|
Connector Type |
LC/SC/FC/ST or Customized |
|||
|
Fiber Type |
G657A, G652D, Singlemode / Multimode |
|||
|
Fiber Mode |
Singlemode |
Multimode |
||
|
Polish Type |
PC |
UPC |
APC |
PC |
|
Insertion Loss |
≤0.3dB |
≤0.2dB |
≤0.3dB |
≤0.3dB |
|
Return Loss |
≥45dB |
≥50dB |
≥60dB |
≥35dB |
|
Fiber Core |
1, 2, 4 to 12 Core (Customized) |
|||
|
Cable Diameter |
3.1*2.0 or 5.0*2.0mm |
|||
|
Jacket Material |
PVC or LSZH (Customized) , black or white in color |
|||
|
Length |
1m, 5m, 20m, 50m to 1000m (Customized) |
|||
|
Strength Member |
FRP/KFRP/ Solid steel wire |
|||
|
Wavelength |
SM: 1310/1550nm, MM: 850/1300nm |
|||
|
Repeatability |
≤0.1dB |
|||
|
Durability |
≤0.2dB (1000 times mating) |
|||
|
Tensile Strength |
≥100/200N ( long or short term) |
|||
|
Operating Temperature |
-40 to +85 °C |
|||
|
Storage Temperature |
-40 to +85 °C |
|||
