Description

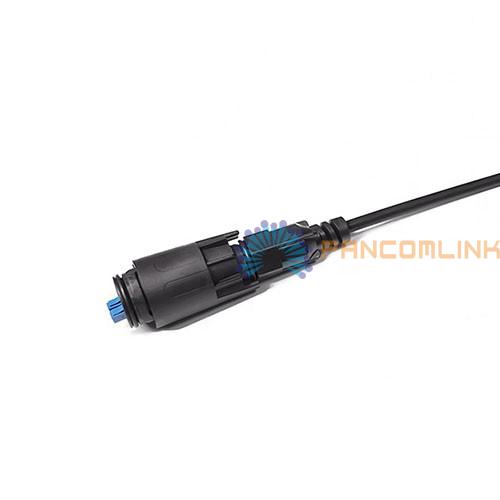

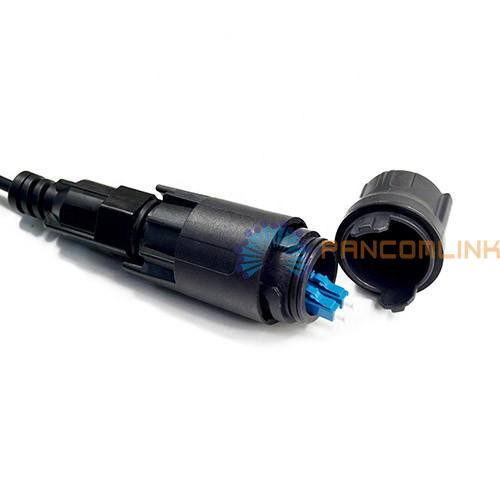

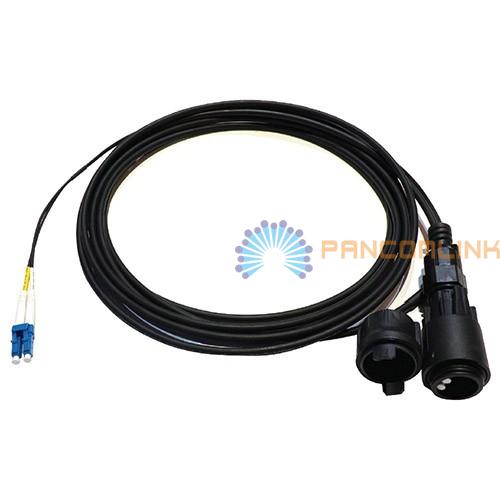

● IPFX(SC, LC, MPO) Outdoor Waterproof Patch Cable:
IPFX(SC,LC,MPO) Connector for Outdoor Cable Assembly Applications provide high performance and cost effective cable assemblies for outdoor environments. They are factory terminated (tested cables) or field installable version.
● Features:
• Factory terminated (tested cables) or Field installable version available
• Pre-fitted with the IPFX receptacle
• Water proof, dust proof
• IP67 water and dust protection
• Designed to meet 150N cable retention

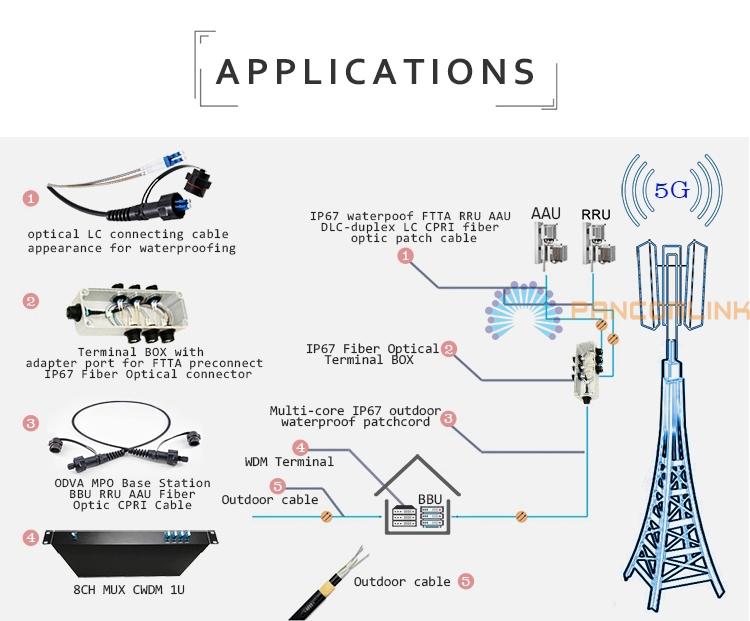

● Application:
• Multi-purpose Outdoor
• For connection between distribution box and RRH
• Deployment in Remote Radio Head cell tower applications

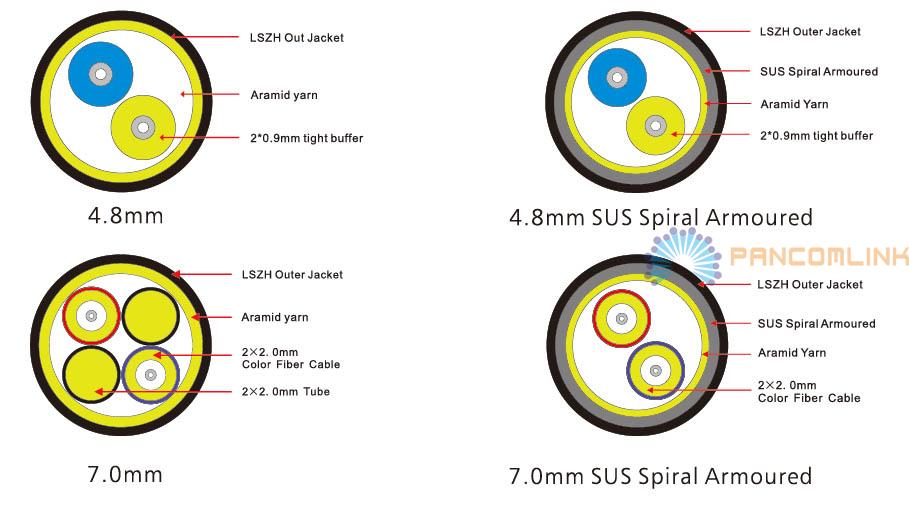

● Cable Parameter:
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥35dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
