Description
● Mini IP (SC/LC/MPO) Outdoor Waterproof Cable:

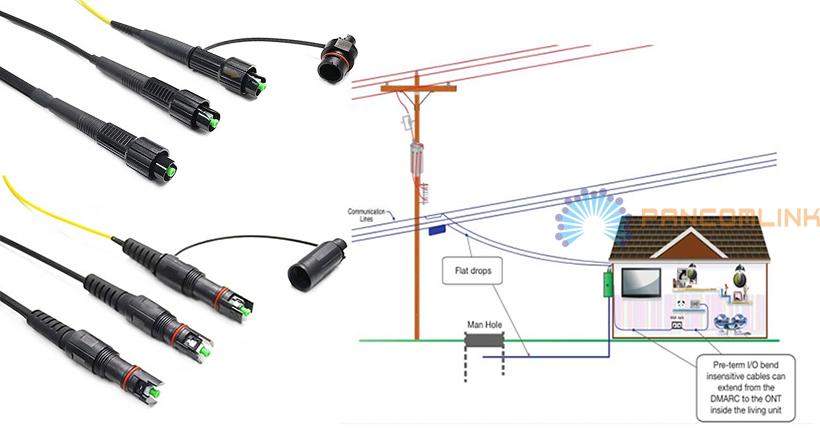

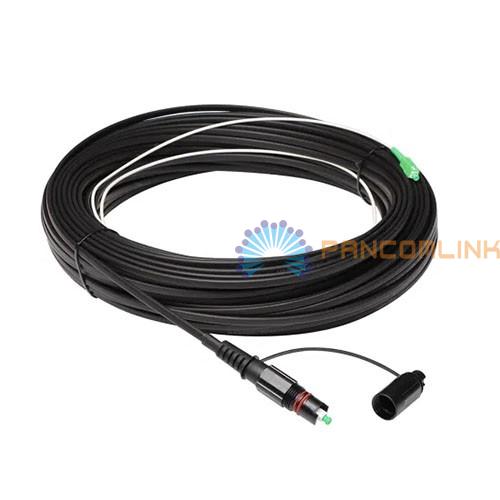

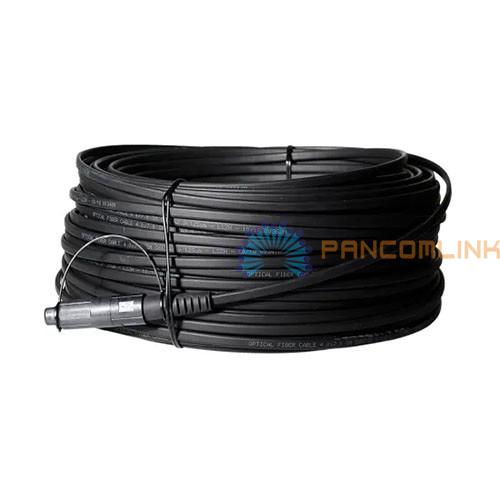

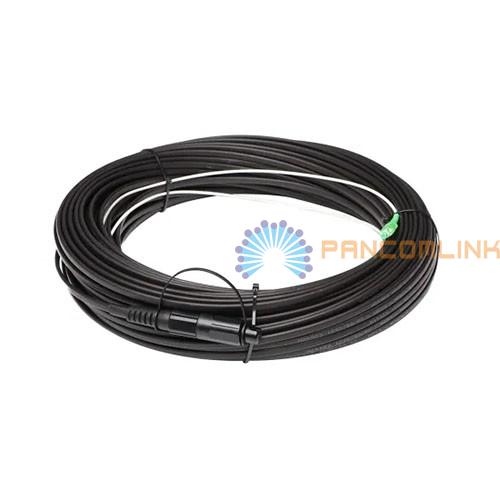

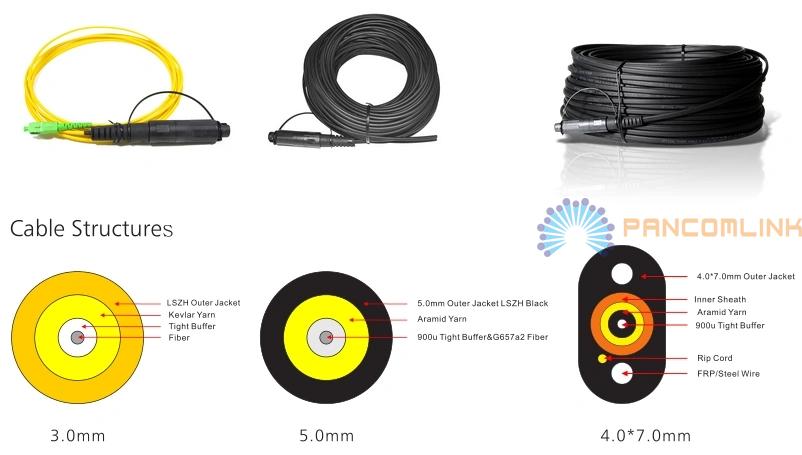

Indoor/outdoor Flat Drop cable assemblies with OptiTap connectors combine the simple installation offered by Flat Drop cables, which are designed for rugged outdoor environments, and the flexibility of compact drop cables, which are designed for challenging indoor environments where bend-tolerance is a concern. The design features a gel-free, fully waterblocked, UV-resistant 2.9 mm LSZH drop cable centered inside a traditional round dielectric cable.
Designed to meet industry-standard requirements for indoor and outdoor drop cables, the product eliminates the need for termination to transition from the outdoor environment to an indoor ONT. This dielectric version eliminates any bonding and grounding requirements and is suitable for aerial, direct buried and duct installation.
● Features:
• Compact size, easy to operate, durable
• Easy connection to hardened adapters on terminals or closures
• Reduce welding, connect directly to achieve interconnection
• IP67/IP68 water and dust protection

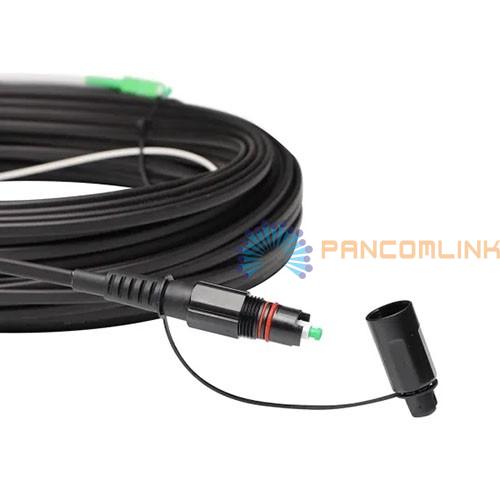

• Spiral clamping mechanism ensures long-term reliable connection
• Guide mechanism, can be blinded with one hand, simple and quick, connect and install
• Seal design: It is waterproof, dust-proof, anti-corrosion and so on.
● Application
• Fiber optic communications in harsh outdoor environments
• Outdoor communication equipment connection
• Remote wireless base station
• FTTX wiring project
● Cable Parameters:
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥35dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
