Description

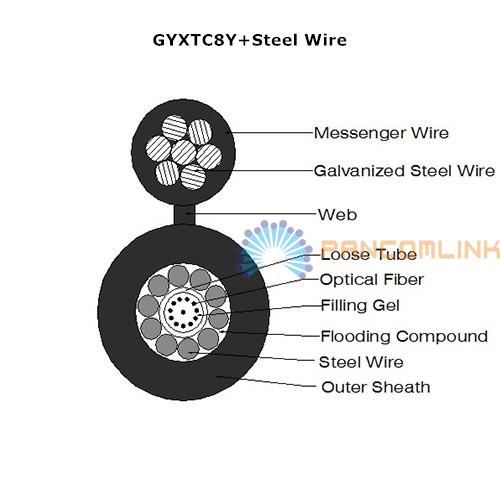

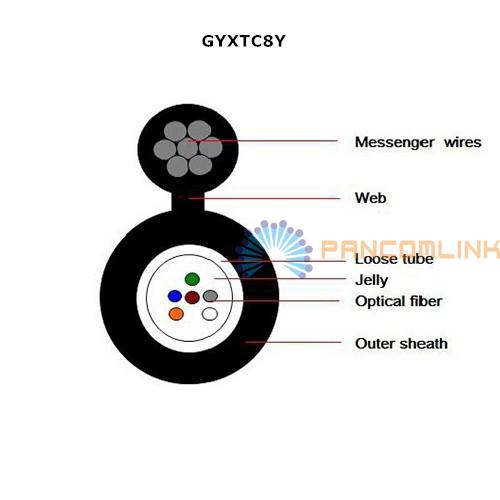

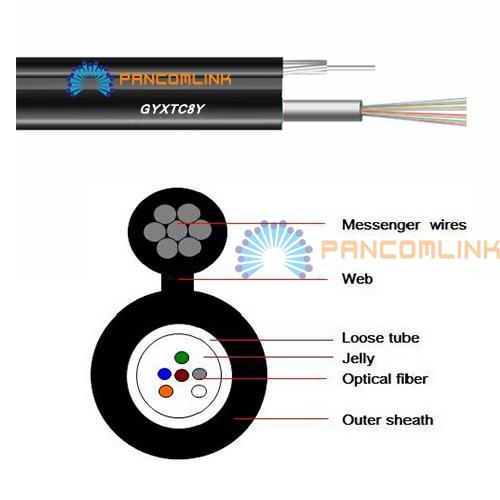

● GYTXC8Y Figure 8 Central Tube Aerial Self-Support Outdoor Cable:
The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic, the tube is filled with a water-resistant filling compound. This part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
● Features:
►Good mechanical and temperature performance;
►High strength loose tube that is hydrolysis resistant;
►Special tube filling compound ensure a critical protection of fiber;
►Small diameter, light weight and friendly installation;
►Long delivery length and low price;
►GYXTC8Y cable complies with Standard YD/T 1155-2011 as well as IEC 60794-1.
● Application:
►Aerial Laying;
►Suitable for long-distance communication and indoor communication.
● Optical Characteristics:
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300nm |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelengthλcc |
|
≤1260nm |
≤1480nm |
|
|
● Technical Parameters:
|
Cable Type |
Fiber Count |
Cable Diameter |
Cable Weight Kg/km |
Supporting Wire Spec |
Connection Diameter mm |
Tensile Strength |
Crush Resistance N/100m |
Bending Radius mm |
|
GYXTC8Y |
2～12 |
6.0×12.5 |
85 |
ф1.0mm×7 |
High*width 3.0×2.5 |
1000/3000 |
300/1000 |
10D/20D |
|
GYXTC8Y |
14～24 |
6.5×13.5 |
95 |
ф1.0mm×7 |
High*width 3.0×2.5 |
1000/3000 |
300/1000 |
10D/20D |
|
Storage/Operating Temperature : |
40℃ to +70℃ |
|||||||
