Description

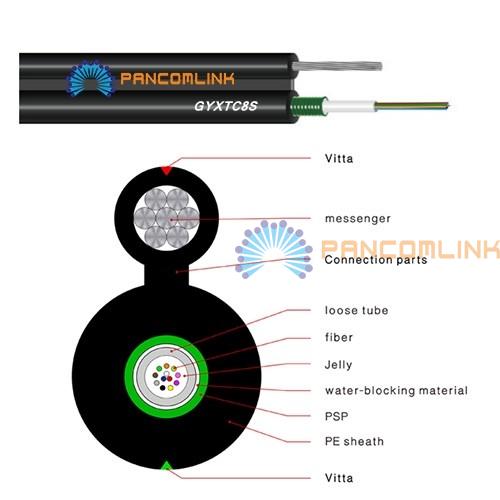

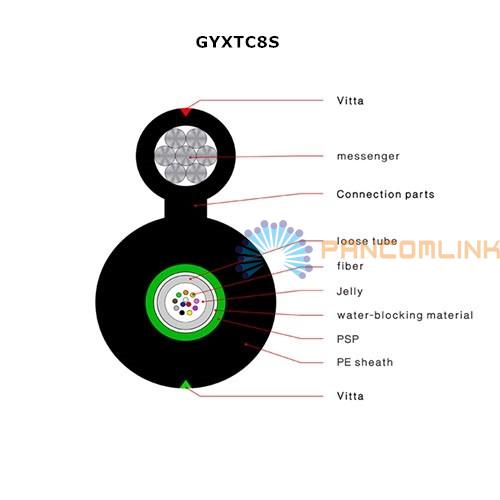

● GYTXC8S Figure 8 Central Tube Aerial Self-Support Steel Armored Outdoor Cable:

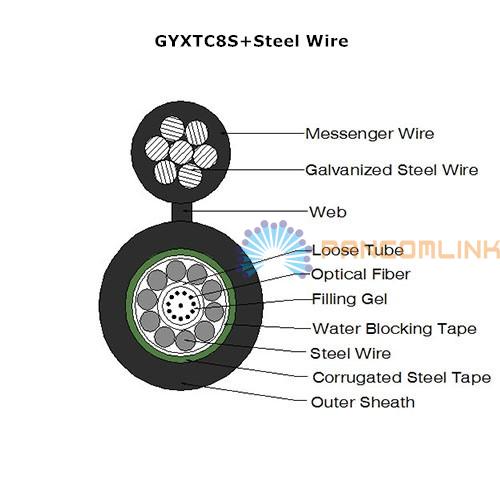

The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic, the tube is filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tube filled with water proof compound to ensure compact and longitudinally water blocking, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
● Features:
►Good mechanical and temperature performance;
►High strength loose tube that is hydrolysis resistant;
►Special tube filling compound ensure a critical protection of fiber;
►PSP enhancing moisture-proof;
►Small diameter, light weight and friendly installation;
►Long delivery length and low price;
►GYXTC8S cable complies with Standard YD/T 1155-2011 as well as IEC 60794-1.
● Application:
►Aerial Laying;
►Suitable for long-distance communication and indoor communication.
● Optical Characteristics:
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300nm |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelengthλcc |
|
≤1260nm |
≤1480nm |
|
|
● Technical Parameters:
|
Cable Type |
Fiber Count |
Cable Diameter |
Cable Weight Kg/km |
Supporting Wire Spec |
Connection Diameter mm |
Tensile Strength |
Crush Resistance N/100m |
Bending Radius mm |
|
GYXTC8S |
2～12 |
7.0×14.0 |
118 |
ф1.0mm×7 |
High*width 3.0×2.5 |
3500/7000 |
1000/3000 |
15D/30D |
|
GYXTC8S |
14～24 |
8.0×15.1 |
129 |
ф1.0mm×7 |
High*width 3.0×2.5 |
3500/7000 |
1000/3000 |
15D/30D |
|
Storage/Operating Temperature : |
40℃ to +70℃ |
|||||||
