Description
● GYTS53 Stranded Loose Tube Double Sheath Armored Outdoor Cable:

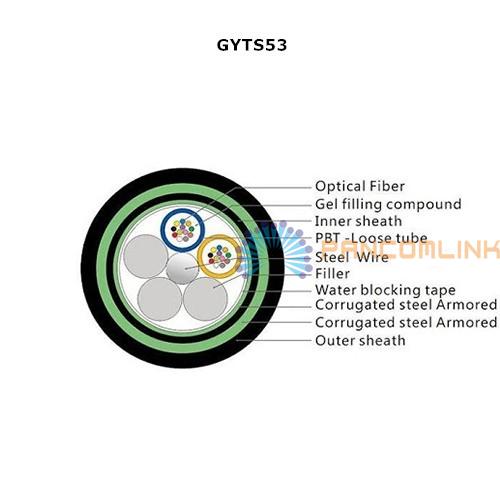

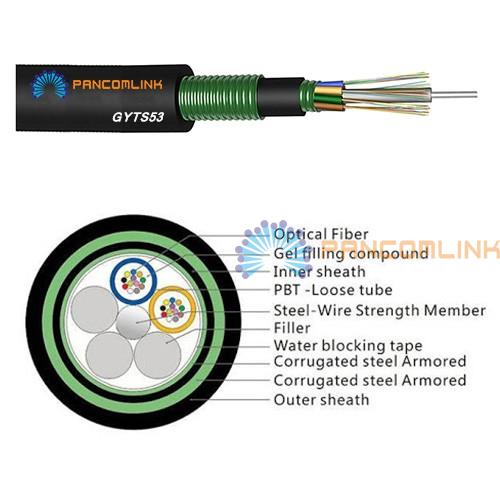

In the GYTS53 cable, singlemode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. A steel tape is applied around the cable core, which is filled with the filling compound to protect it. Then the cable is completed with a thin PE sheath. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.
● Features:
►Good mechanical and temperature performance;
►High strength loose tube that is hydrolysis resistant;
►Special tube filling compound ensure a critical protection of fiber;
►Specially designed compact structure is good at preventing loose tubes from shrinking;
►PE sheath protects cable from ultraviolet radiation;
►To assure the water-proof function by:
·Single steel wire as central strength member
·Special tube filling compound ensure a critical protection of fiber
·Fully filled in the cable
·Double sheaths prevent the moisture
►Complies with Standard YD/T 901-2009 as well as IEC 60794-1.
● Application:
►Aerial/conduit;
►Connecting communication equipment;
►Suitable for long-distance communication and local area network communication (LAN);
►Adopted to outdoor distribution specially used where good mechanical performance and rodent resistance are expected.
● Optical Characteristics:
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300nm |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelengthλcc |
|
≤1260nm |
≤1480nm |
|
|
● Technical Parameters:
|
Cable Type |
Fiber Count |
Cable Diameter |
Cable Weight Kg/km |
Tensile Strength |
Crush Resistance
Long/short term |
Bending Radius
Static/dynamic |
|
GYTS53-2～24 |
2～24 |
13.3 |
210 |
1000/3000 |
1000/3000 |
15D/30D |
|
GYTS53-26～36 |
26～36 |
13.6 |
220 |
1000/3000 |
1000/3000 |
15D/30D |
|
GYTS53-38～60 |
38～60 |
14.1 |
225 |
1000/3000 |
1000/3000 |
15D/30D |
|
GYTS53-62～72 |
62～72 |
14.6 |
255 |
1000/3000 |
1000/3000 |
15D/30D |
|
GYTS53-74～96 |
74～96 |
16.2 |
305 |
1000/3000 |
1000/3000 |
15D/30D |
|
GYTS53-98～120 |
98～120 |
17.7 |
350 |
1000/3000 |
1000/3000 |
15D/30D |
|
GYTS53-122～144 |
122～144 |
19.1 |
395 |
1000/3000 |
1000/3000 |
15D/30D |
|
GYTS53-146～216 |
146～216 |
19.6 |
420 |
1000/3000 |
1000/3000 |
15D/30D |
|
GYTS53-218～240 |
218～240 |
22.8 |
530 |
1000/3000 |
1000/3000 |
15D/30D |
|
GYTS53-242～288 |
242～288 |
25.0 |
620 |
1000/3000 |
1000/3000 |
15D/30D |
|
Storage/Operating Temperature : |
-40℃ to +70℃ |
|||||
