GYTC8Y Outdoor Cable

Description

● GYTC8Y Figure 8 Multi-Tube Aerial Self-Support Outdoor Cable:

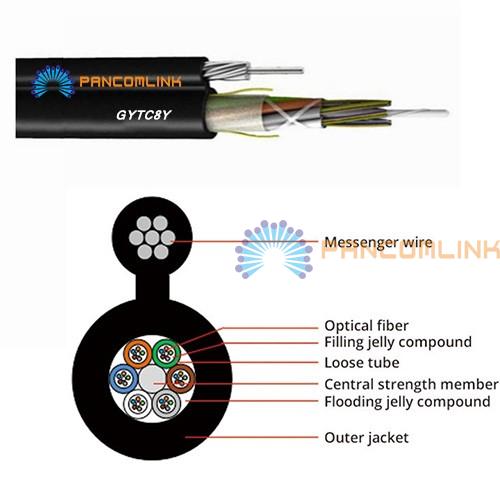

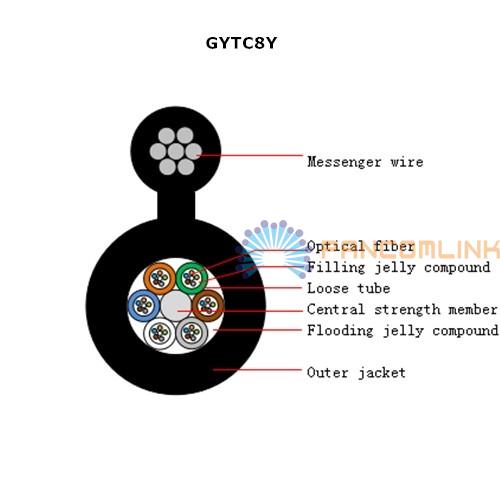

GYTC8Y is a typical outdoor use fiber optic cable for aerial applications. GYTC8Y is also called the figure 8 cable because of its structure looks like the figure 8. We supply single mode and multi mode GYTC8Y fiber cables from 2-fiber type to 288-fiber type. The fibers, 250μm, are positioned in loose tubes made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. This part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.

● Features:

►Used for long-haul communication;

►Steel-wire strength member ensures tensile strength;

►Water blocking system to improve the water proof ability;

►GYTC8Y cable complies with Standard YD/T 1155-2011 as well as IEC 60794-1.

● Application:

►Aerial application, used for LAN communication;
►CATV Computer networks system;
►Junction communication systems.

● Optical Characteristics:

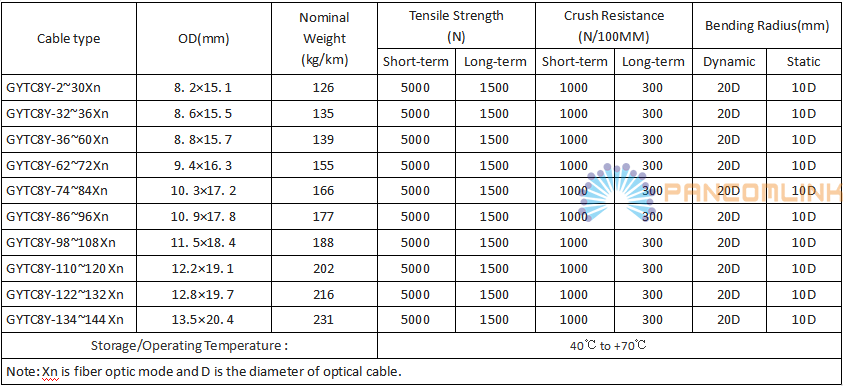

● Technical Parameters:
