GYTA53 Outdoor Cable

Description

● GYTA53 Stranded Loose Tube Double Sheath Armored Outdoor Cable:

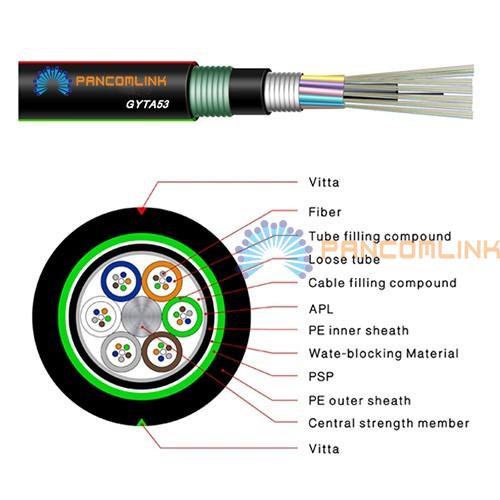

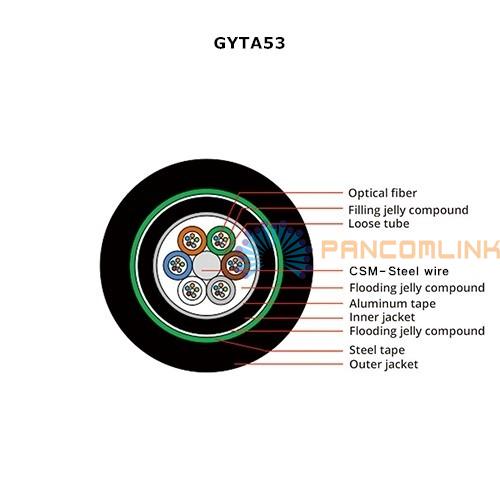

In the GYTA53 cable, singlemode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the core, which is filled with the filling compound to protect it. Then the cable is completed with a thin PE sheath. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.

● Features:

►Good mechanical and temperature performance;
►High strength loose tube that is hydrolysis resistant;
►Special tube filling compound ensure a critical protection of fiber;
►Specially designed compact structure is good at preventing loose tubes from shrinking;
►PE sheath protects cable from ultraviolet radiation;
►To assure the water-proof function by:
·Single steel wire as central strength member
·Special tube filling compound ensure a critical protection of fiber
·Fully filled in the cable
·Double sheaths prevent the moisture

►Complies with Standard YD/T 901-2009 as well as IEC 60794-1.

● Application:

►Aerial/conduit;

►Connecting communication equipment;

►Suitable for long-distance communication and local area network communication (LAN);

►Adopted to outdoor distribution specially used where good mechanical performance and rodent resistance are expected.

● Optical Characteristics:

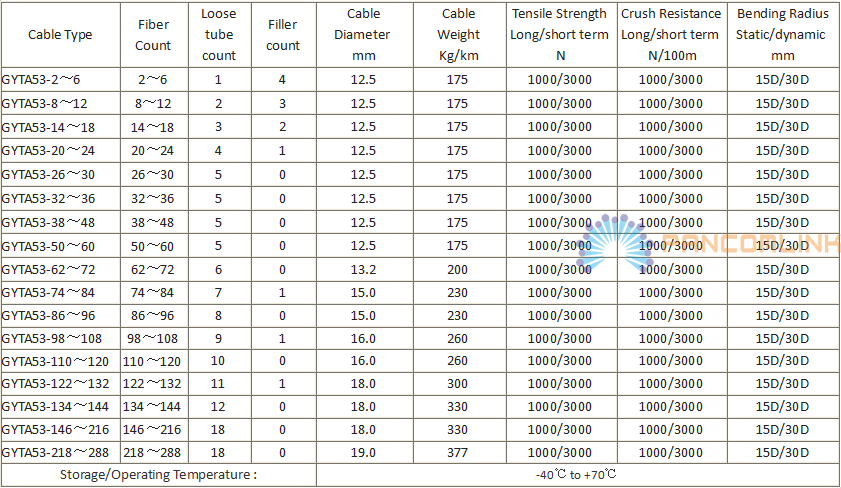

● Technical Parameters:
