GYFXTBY Indoor/Outdoor Flat Drop Cable

Description

● FTTH GYFXTBY Indoor/Outdoor Flat Drop Cable

Drop cables are located on the subscriber end to connect the terminal of a distribution cable to a subscriber's premises. They are typicality small diameter, low fiber count cables with limited unsupported span lengths, which can be installed aerially, underground or buried. As it is used in outdoor, drop cable shall have a minimum pull strength of 1335 Newtons according to the industry standard. Drop cables are available in many different types.

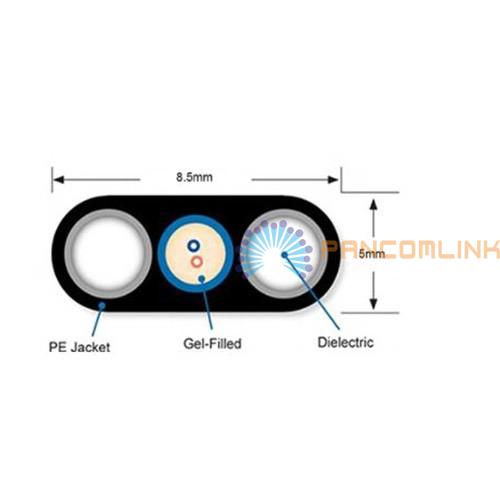

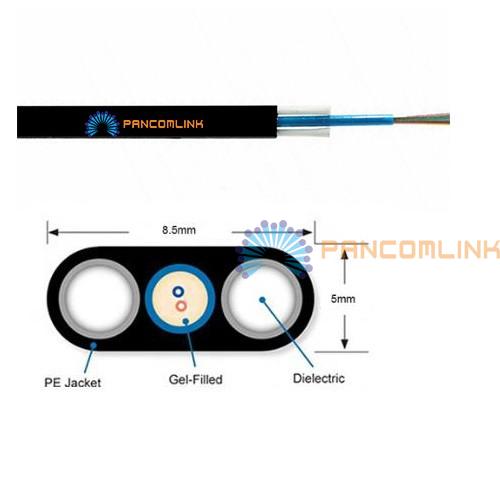

Flat Type Drop Cable, also known as flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance.

Figure-8 Aerial Drop Cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications.

Round Drop Cable usually contains a single bend-insensitive fiber buffered and surrounded by dielectric strength members and an outer jacket, which can provide durability and reliability in the drop segment of the network.

● Features:

►2-12 Cores;

►Good mechanical and environmental characteristics;

►Flame retardant characteristics meets the requirements of relevant standards;

►The mechanical characteristics meets the requirements of relevant standards;

►Soft, flexible, easy to splice, and with big capacity data transmission;

►Meet various requirements of market and clients.

● Application:

►Local Area Network (LAN);
►Used end users directly cabling;
►FTTH indoor cabling and distribution (video, audio and data signals). 

● Specification:
