Description
● GJFJTC8Y Figure 8 Indoor Cable

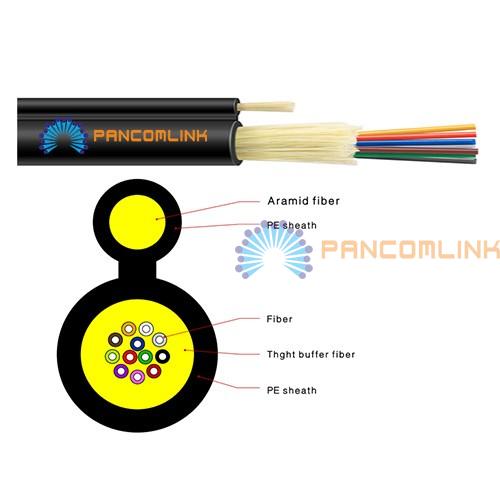

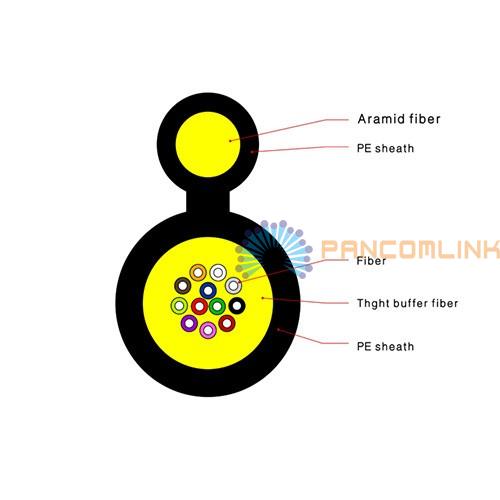

GJFJTC8Y cable is made by evenly applying strands of aramid yarns as the strength member over 900um or 600um fibers, twisting fibers with aramid yarn into the circular cable core, then steel wires assembled into the shape 8 PE sheath.
● Features:
►Small diameter, light weight and friendly;
►Good mechanical and temperature performance;
►High tensile strength of aramid yarn meet the requirements of self-supporting and reduce the installation cost.
● Application:
►FTTH connection;
►Building cabling, LAN etc;
►Outdoor/indoor cabling, trunking hybrid optical connection etc;
►Backbone network to the equipment in the building.
● Specification:
|
Cable Type |
Fiber Count |
OD (mm) |
Weight (kg/km) |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
Bending Radius (mm) |
|||
|
Long Term |
Short Term |
Long Term |
Short Term |
Static |
Dynamic |
||||
|
GJFJH53 |
2 |
3.5*5.5 |
19 |
200 |
400 |
100 |
200 |
15D |
30D |
|
GJFJH53 |
4 |
4.0*6.0 |
26 |
200 |
400 |
100 |
200 |
15D |
30D |
|
GJFJTC8Y |
6 |
5.0*7.0 |
30 |
200 |
400 |
100 |
200 |
15D |
30D |
|
GJFJTC8Y |
8 |
6.0*9.0 |
32 |
200 |
400 |
100 |
200 |
15D |
30D |
|
GJFJTC8Y |
12 |
6.5*9.5 |
40 |
200 |
400 |
100 |
200 |
15D |
30D |
|
Operating and storage temperature |
-40℃～+70℃ |
||||||||
