Description

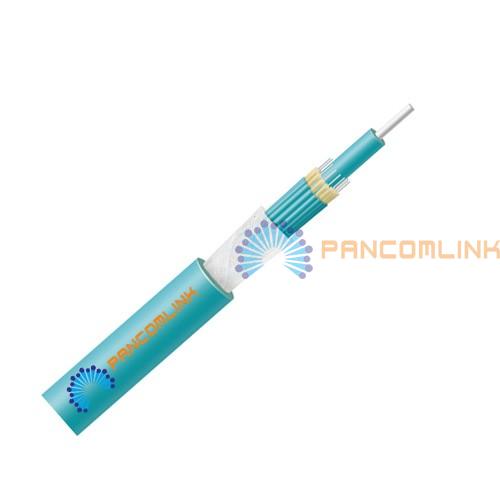

● GJFJHV Multi Purpose Break-out Cable:

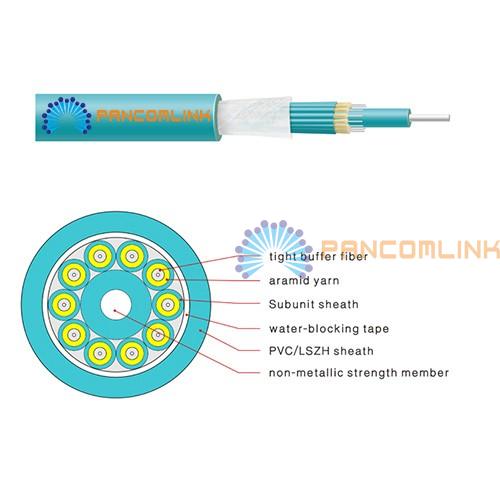

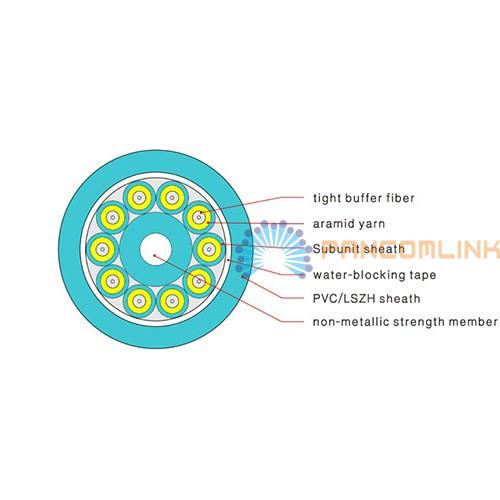

GJFJHV cable, the tight buffer fiber is placed on the surface with a layer of aramid yarn as strength member units, multi fibers as the subunit twist with FRP (and some cushions) into the circle, and finally into fiber optic cable with PVC or LSZH sheath, with dry-type water-blocking materials between fiber and sheath.
● Features:
►Each sub cable contains aramid yarn,good bend performance, without loose tube, cleaning friendly, easy construction and connection;
►Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and mechanical stress;
►LSZH sheath, anti-retardant, self-extinguishing, suitable for machine room, cable shaft and used in indoor environment such as wiring inside the wall;
►LSZH sheath, UV, Waterproof mildew, ESCR, No acid gas release, non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the indoor environment (such as wiring in the ceiling, open wire cabling etc).
● Application:
►Indoor horizontal wiring, vertical wiring in buildings, LAN network;
►Standard core can be directly apply to connectors,to use for device connecting;
►Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.
● Specification:
|
Cable Type |
OD(mm) |
Nominal Weight (kg/km) |
Tensile Strength (N)
|
Crush Resistance (N/100mm) |
Bending Radius (mm) |
|||
|
Long Term |
Short Term |
Long Term |
Short Term |
Static |
Dynamic |
|||
|
GJFJHV-2Xn |
7.0±0.5 |
45 |
500 |
1300 |
400 |
800 |
15D |
30D |
|
GJFJHV-4Xn |
7.0±0.5 |
45 |
500 |
1300 |
400 |
800 |
15D |
30D |
|
GJFJHV-6Xn |
8.3±0.5 |
62 |
500 |
1300 |
400 |
800 |
15D |
30D |
|
GJFJHV-8Xn |
9.4±0.5 |
85 |
500 |
1300 |
400 |
800 |
15D |
30D |
|
GJFJHV-10Xn |
10.7±0.5 |
109 |
500 |
1300 |
400 |
800 |
15D |
30D |
|
GJFJHV-12Xn |
12.2±0.5 |
140 |
500 |
1300 |
400 |
800 |
15D |
30D |
|
GJFJHV-16Xn |
14.0±0.5 |
168 |
500 |
1300 |
400 |
800 |
15D |
30D |
|
GJFJHV-24Xn |
15.5±0.5 |
198 |
500 |
1300 |
400 |
800 |
15D |
30D |
|
GJFJHV-48Xn |
20.5±0.5 |
246 |
500 |
1300 |
400 |
800 |
15D |
30D |
|
Operating and Storage Temperature |
-40℃～+70℃ |
|||||||
Note: Xn is fiber optic model and D is the diameter of optical cable
