Description
● GJFDBV Multi-Cores Mini Flat Cable:

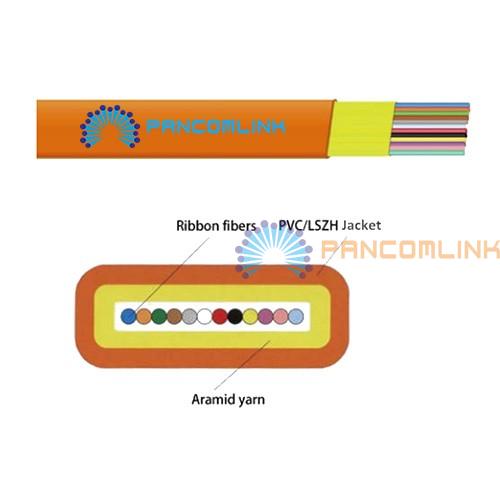

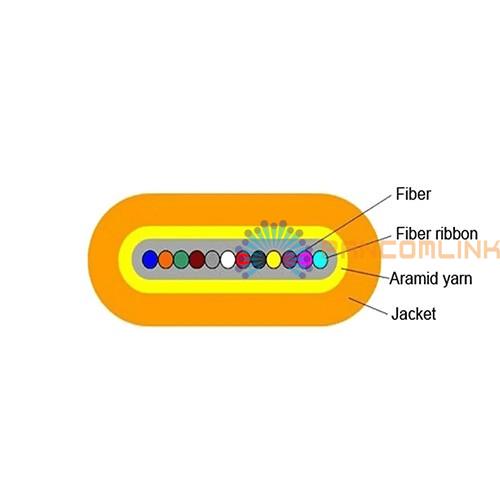

GJFDBV Multi-Cores Mini Flat Cable uses fiber ribbon as optical transmission medium, covered with aramid yarn as strength member, and the cable is completed with a layer of flat outside jacket. (PVC, LSZH, OFNR, OFNP and other materials are available as requirements)
● Features:

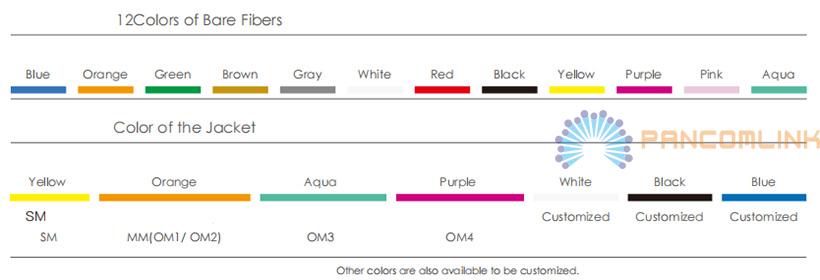

►Flexible, flame-retardant & color coded outer jacket;
►Non-unitized design providing space saving and cost advantages;
►High strength aramid yarn offers high tensile strength;
►Suitable for indoor application and communication equipment.
● Application:
►Indoor cabling and distribution;
►Building cabling, LAN etc;
►Used in patch cords and pigtail;
►Connection for indoor equipment.
● Specification:
|
Cable Type |
OD(mm) |
Nominal Weight (kg/km) |
Tensile Strength (N)
|
Crush Resistance (N/100mm2) |
Bending Radius (mm) |
|||
|
Long Term |
Short Term |
Long Term |
Short Term |
Static |
Dynamic |
|||
|
GJFDBV-4Xn |
2.5*3.5 |
12 |
80 |
200 |
200 |
500 |
30D |
50D |
|
GJFDBV-6Xn |
2.5*3.8 |
13 |
200 |
200 |
200 |
500 |
30D |
50D |
|
GJFDBV-8Xn |
2.5*4.5 |
15 |
200 |
200 |
200 |
500 |
30D |
50D |
|
GJFDBV-12Xn |
2.5*5.0 |
17 |
200 |
200 |
200 |
500 |
30D |
50D |
|
Operating and Storage Temperature |
-40℃～+70℃ |
|||||||
|
Packing and Reel Length |
Standard wooden drum with protection. Standard reel length: 2/3 km/reel, other length is also available |
|||||||
Note: Xn is fiber optic model and D is the diameter of optical cable
