Description
● GJASFKV Multi-Core Bundle Type Cable with Armored Sub-Units

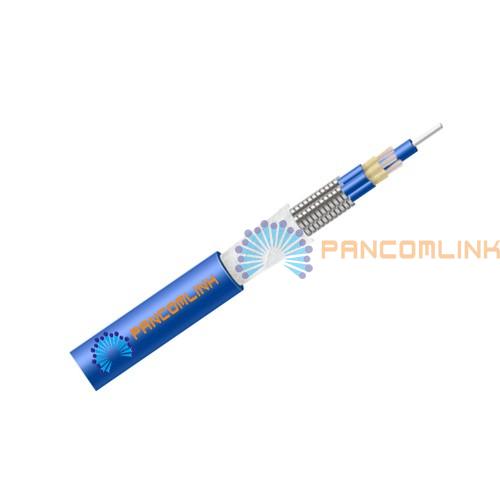

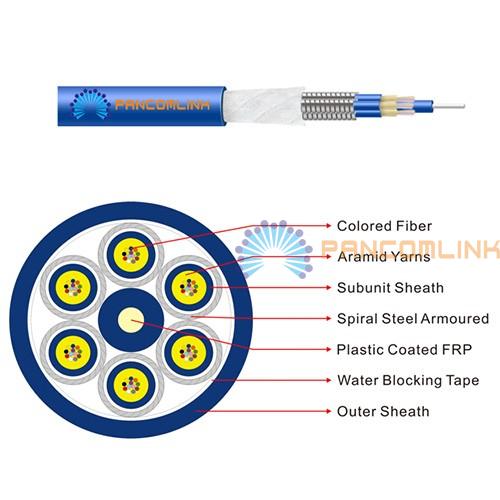

The structure of GJASFKV fiber cable is the multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A layer of PVC or LSZH inner sheath is extruded on the stranded surface as a subunit, the subunit is wound with a layer of steel wire armor, The sub-unit and the non-metallic reinforcements FRP (and possible mats) is stranded in a circle, wrapped with a dry water-blocking tape between the core and the sheath, and finally the PVC (or LSZH) sheath is extruded cable. GJASFKV cable complies with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meets the requirements of UL approval for OFNR, OFNP.
● Features:
►Miniature cable, high-strength aramid reinforced, high-performance jacket material protection;
►Small bending radius, light weight, soft, flexible, easy to follow;
►Flat wire armored to improve the optical cable compression and anti-rat ability;
►Good mechanical and environmental performance;
►Flame retardant or non-flame retardant outer jacket to provide good safety protection.
● Application:
►FTTH and user termination;
►Building cabling, LAN etc;
►Outdoor/indoor cabling, trunking hybrid optical connection etc;
►Backbone network to the equipment in the building;
►Small installation space cabling.

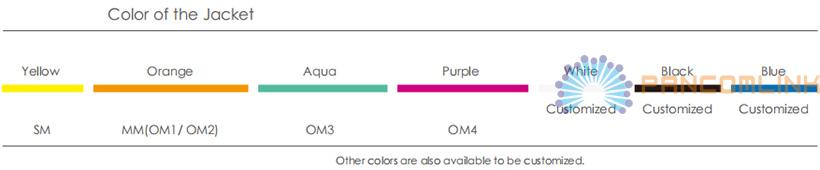

● Specification:
|
Item |
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300nm |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
|
≤1260nm |
≤1480nm |
|
|
|
Cable Type |
Fiber Count |
Subunit Diameter mm |
Cable Diameter |
Cable Weight |
Tensile Strength
Long/Short Term |
Crush Resistance
Long/Short Term |
Bending Radius Static/Dynamic mm |
|
GJASFKV |
12-24 |
3.0 |
100 |
500/1200 |
500/2000 |
10D/20D |
|
|
GJASFKV |
24-48 |
3.0 |
10.0 |
110 |
500/1200 |
500/2000 |
10D/20D |
|
GJASFKV |
48-72 |
3.0 |
14.0 |
200 |
700/1500 |
500/2000 |
|
|
GJASFKV |
72-144 |
3.0 |
14.0 |
220 |
700/1500 |
500/2000 |
10D/20D |
