Description
● Description:

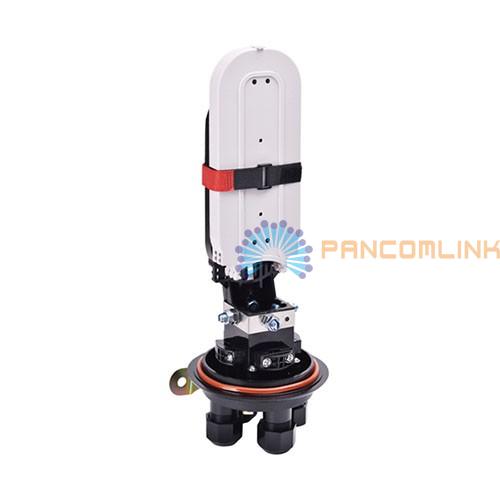

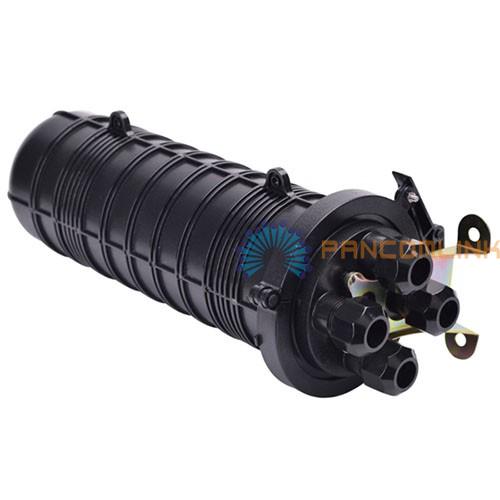

Dome fiber splice enclosure also named fiber optic splice closure, is usually used for outdoor fiber optic cables to be spliced together in the outside plant (OSP).

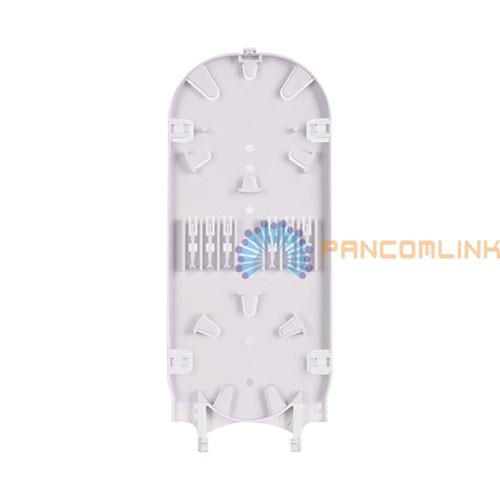

Fiber optic splice closures and the splice trays inside provide strong protection for the spliced fiber joint and fiber cables. A large variety of fiber optic enclosures ensure durability whether the splice closure is in air, in the pipeline, or buried underground.
Fiber optic splice closure can be installed in aerial, pole mounting, wall mounting, direct buried, and duct mounting, which used for direct connection during the optical fiber transmission process. With good sealing performance, the simple installation and wide application range are the best choices for optical fiber connection.
● Specification:
• Dimension:430mm*190mm
• Capacity of FOSC:Bunchy:12-96(cores) Ribbon:up to 288(cores)
• Cable entry ports:4 pieces
• Diameter of Cable:Φ8mm～Φ16mm
• Assembling method:Aerial,Pipeline,Underground,hand-holes
• Protection level:IP68
• Outer carton size:880*420*445mm
• Inner carton size:200*170*435mm
• Number of Packing:10 pcs/ctn
• Weight:2500g~3100g/pcs
