Description

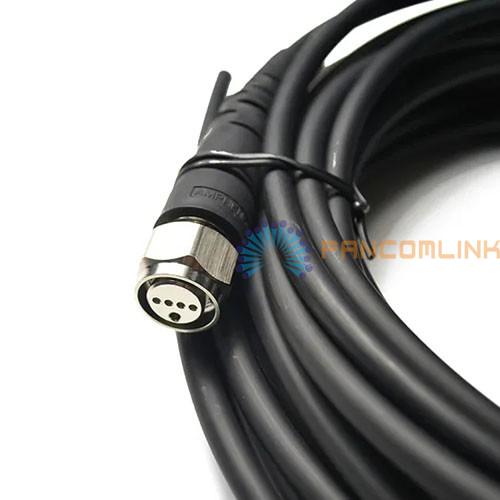

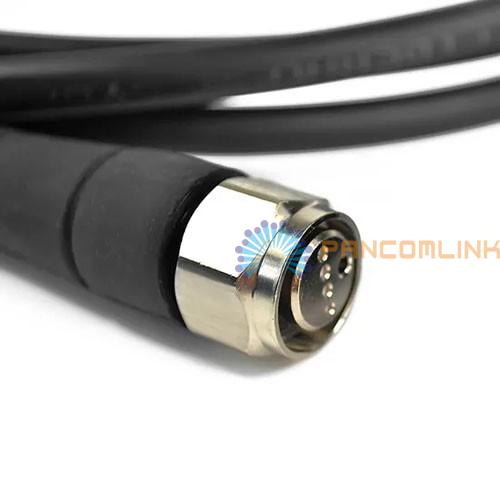

● AARC Outdoor Cable Assemblies:
AARC plug and receptacle assemblies are available in 2-fiber or 4-fiber configurations. Based on the N-Type RF threaded connector housing, this interconnect system provides superior optical performance in outdoor environments using LC-style 1.25mm ceramic ferrules.
The corrosion resistant metal housings provide a durable and environmentally protected solution for optical connectivity in areas exposed to elements such as rain, snow, dirt, and other types of contamination.

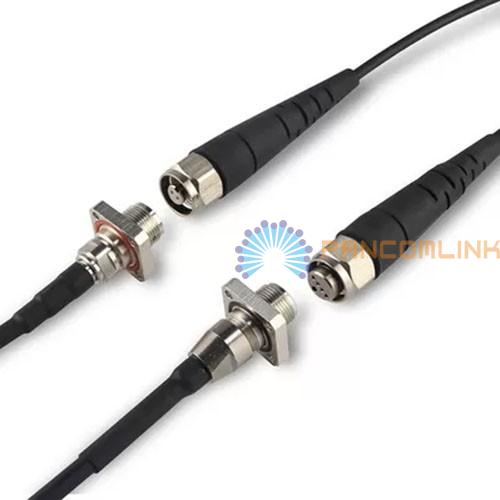

Factory-terminated AARC assemblies are available in plug, receptacle, and in-line connector styles, and can be supplied as pigtails or jumpers in lengths starting from 1 meter. Factory-terminated AARC receptacle assemblies are available with flange, jam-nut, or in-line configurations. AARC connectors are exceptionally suited for WiMax, LTE, 3G/4G/5G wireless, and base station applications.
● Features:
• IP67 water and dust protection
• Available with singlemode or multimode fiber
• Blind mate and scoop proof interface
• N Type connector housing
• Metal housing provides improved EMI protection

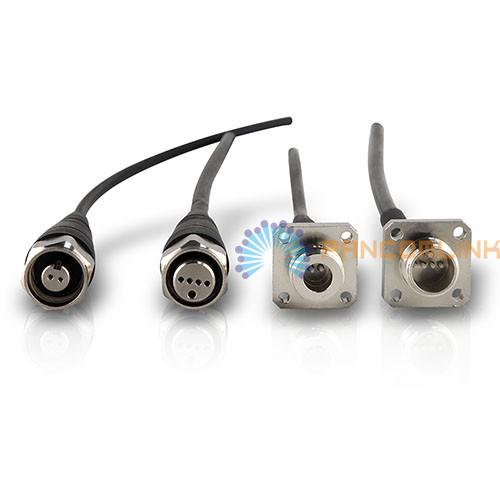

• Flange, Jam-Nut, or In-Line type receptacle assemblies
• Operating temperature: -40° to 75°C
• RoHS compliant
• 445 N (100lbs) cable retention
• Threaded style coupling
● Application:
• Multi-purpose Outdoor
• FTTA, FTTH Application
• 3G, 4G, 5G Base Station
• Deployment in BBU, RRU, RRH, LTE applications

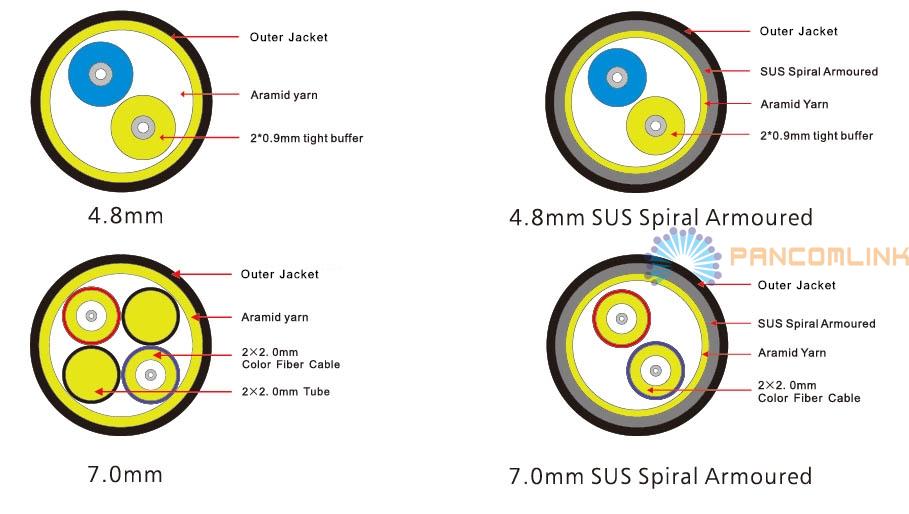

● Cable Parameter:
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥35dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
