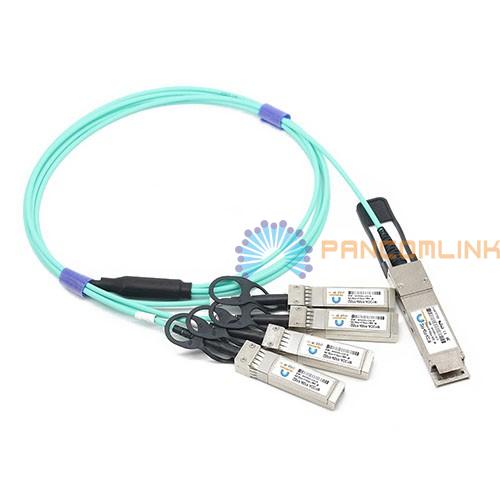

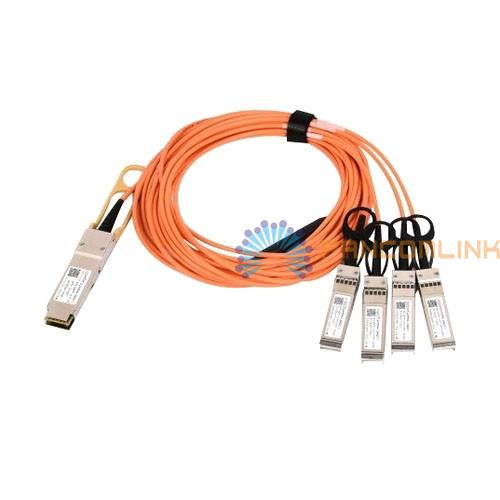

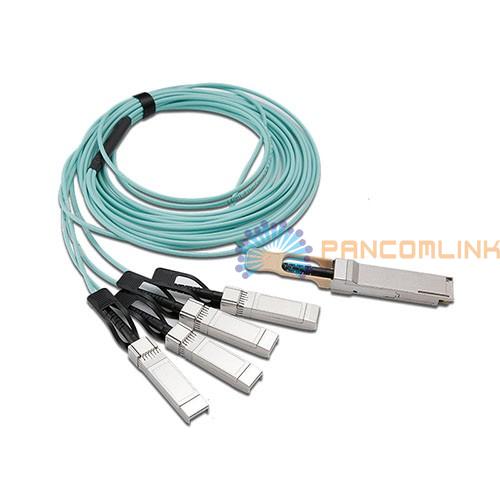

40G QSFP+ to 4x10G SFP+ AOC Cable Series 1-100 meters

Description

● 40G QSFP+ to 4x10G SFP+ AOC Cable:

AOC Active Optical cables offer a flexible way to connect within racks and across adjacent racks. AOCs support farther inter-rack distances. AOCs are much thinner and lighter than DACs, which makes cabling easier. Active optical cables enable efficient system airflow, which is critical in high-density racks. PancomLink offers a wide range of products for 1m to 100m reaches, in CXP, QSFP28, QSFP, SFP28, SFP+ form factors and data rates of 10G~120G.

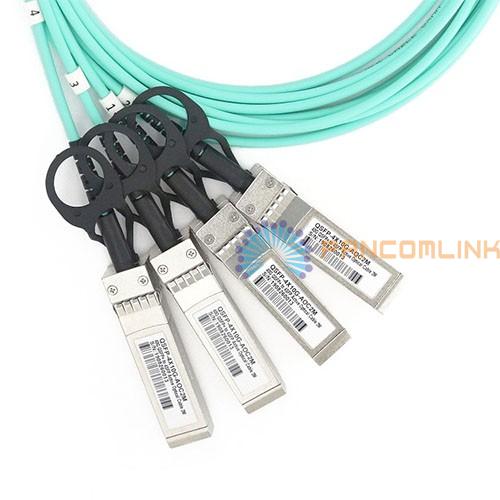

QSFP+ to 4x SFP+ AOC cable is a 40GBase QSFP+ hybrid optical cable. A side is a QSFP+ optical connector, B side is 4 SFP+ optical connectors. It’s an application for the link with QSFP+ port on 40Gb/s rate switch or host and feeds up to 4 upstream 10Gb/s switch or host.

● Features:

• 40GBase QSFP+ to 4x10G SFP+ Connectors

• Full duplex 4 channel 850nm parallel active optical cable

• Transmission data rate up to 10.3Gbit/s per channel

• SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface.

• Management Interface and digital diagnostic monitoring(DDM) through I2C

• Support Rx output pre-emphasis

• 4ch 850nm VCSEL array, 4ch PIN photo detector array

• Helix type multi-mode optical fibre cable of up to 100m

• OFNP (Optical Fibre Non-Conductive Plenum) rated cable

• Differential AC-coupled high speed data interface

• Low power consumption of typical 0.8W per end

• Housing isolated from connector ground

• Easy to use release mechanism

• Operating case temperature 0ºC to +70ºC

• 3.3V power supply voltage

• RoHS 6 compliant

• Laser Class 1

● Application:

• 40G Ethernet, 10GEthernet

• TOR Switch

• Datacom and Telecom switch or router backplane connection

• High performance computing interconnect

● Order Information:

Inquiry Us
