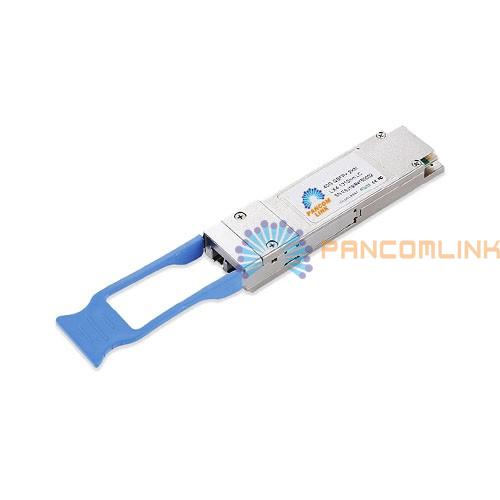

40G QSFP+ LX4 1310nm 2KM LC Optical Transceiver

Product Item：PCL-40G-QSFP+-1310nm-LC-2KM

Description

● 40G QSFP+ Optic Transceiver:

40G QSFP+ 850nm optical transceiver is a parallel 40Gb/s Quad Small Form Factor Pluggable (QSFP+) optical module, which provides increased port density and total system cost savings. QSFP+ full duplex optical module offers 4 independent transmit and receive channels, and each capable of 10Gb/s operation for an aggregate data rate of 40Gb/s on OM3 multi mode fiber.
Generally, an optical fiber ribbon cable with an MTP/MPO connector can be plugged into QSFP+ module receptacle and proper alignment is ensured by the guide pins inside the receptacle, too. The cable usually can not be twisted for proper channel to channel alignment. Electrical connection is usually achieved though a z-pluggable 38-pin IPASS® connector.
40G QSFP+ 850nm optical module operates by a single +3.3V power supply. LVCMOS/LVTTL global control signals, such as Module Present, Reset, Interrupt and Low Power Mode, are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals, and to receive digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.

● Features:

• Four-channel full-duplex

• Hot Pluggable QSFP+ form factor

• Built-in digital diagnostic functions

• Single 1x12 MPO/MTP receptacle or Duplex LC

• Transmission distance up to 400m on MMF OM4 and 40km over SMF

• MMF Optical connectivity via industry standard MPO/MTP terminated fiber ribbon

• Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C

● Application:

• 40GBASE-SR4/CSR4/IR4/LR4/ER4 40G Ethernet

• Breakout to 4 x 10GBASE-SR Ethernet

• High-speed interconnects within and between switches, routers and transport equipment

• Server-Server Clusters, Super-computing interconnections

• Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane

• InfiniBand SDR, DDR and QDR applications

• Proprietary interconnections

• Other optical links

● Order Information:

40Gbps QSFP+ Optic Transceiver
Description	Data Rate	Wavelength (nm)	Distance	Fiber	Tx Power (dBm)	Rx Sens (dBm)	Interface	DDM
QSFP+ BIDI SR4 850/900nm LC 100m/150m	40G	850/890	100m/OM3 150m/OM4	MMF	-4~5	-11	Duplex LC	Yes
QSFP+ SR4 850nm MPO 100m/150m	40G	850	100m/OM3 150m/OM4	MMF	-8~0	-13	MPO/MTP	Yes
QSFP+ eSR4 850nm MPO 300m/400m	40G	850	300m/OM3 400m/OM4	MMF	-8~1	-13	MPO/MTP	Yes
QSFP+ LX4 1310nm LC 100m	40G	1310	100m	MMF	-7~2.3	<-9.6	Duplex LC	Yes
QSFP+ IR4 PSM 1310nm MPO 1.4Km	40G	1310	1.4km	SMF	-5.5~1.5	<-11.5	MPO/MTP	Yes
QSFP+ LR4 PSM4 1310nm MPO 10Km	40G	1310	10km	SMF	-5.5~1.5	<-12.6	MPO/MTP	Yes
QSFP+ IR4 1310nm LC 2Km	40G	1310	2km	SMF	-2~3.5	-11.5	Duplex LC	Yes
QSFP+ LR4 1310nm LC 10Km	40G	1310	10km	SMF	-7~2.3	-11.5	Duplex LC	Yes
QSFP+ CWDM LX XXnm MM/SM LC150m~2Km	40G	1310	150m~2km	MMF/SMF	-5/-7~3.5/2.3	-7/-11.7	Duplex LC	Yes
QSFP+ CWDM IR4 XXnm LC 2Km	40G	1271~1331	2KM	SMF	-7~2.3	<-11.7	Duplex LC	Yes
QSFP+ CWDM LR4 XXnm LC 10Km	40G	1271~1331	10km	SMF	-7~2.3	<-13.7	Duplex LC	Yes
QSFP+ CWDM LR4 XXnm LC 20Km	40G	1271~1331	20km	SMF	-3~4.5	-11.5	Duplex LC	Yes
QSFP+ CWDM ER4 XXnm LC 40Km	40G	1271~1331	40km	SMF	-3.7~4.5	<-20.2	Duplex LC	Yes
56G FDR QSFP+ SR4 850nm MPO 100m/150m	56G	850	100M/OM3 150M/OM4	MMF	-8.2~2.4	<-11	MPO/MTP	Yes
Operating Temperature	0℃~+70℃
